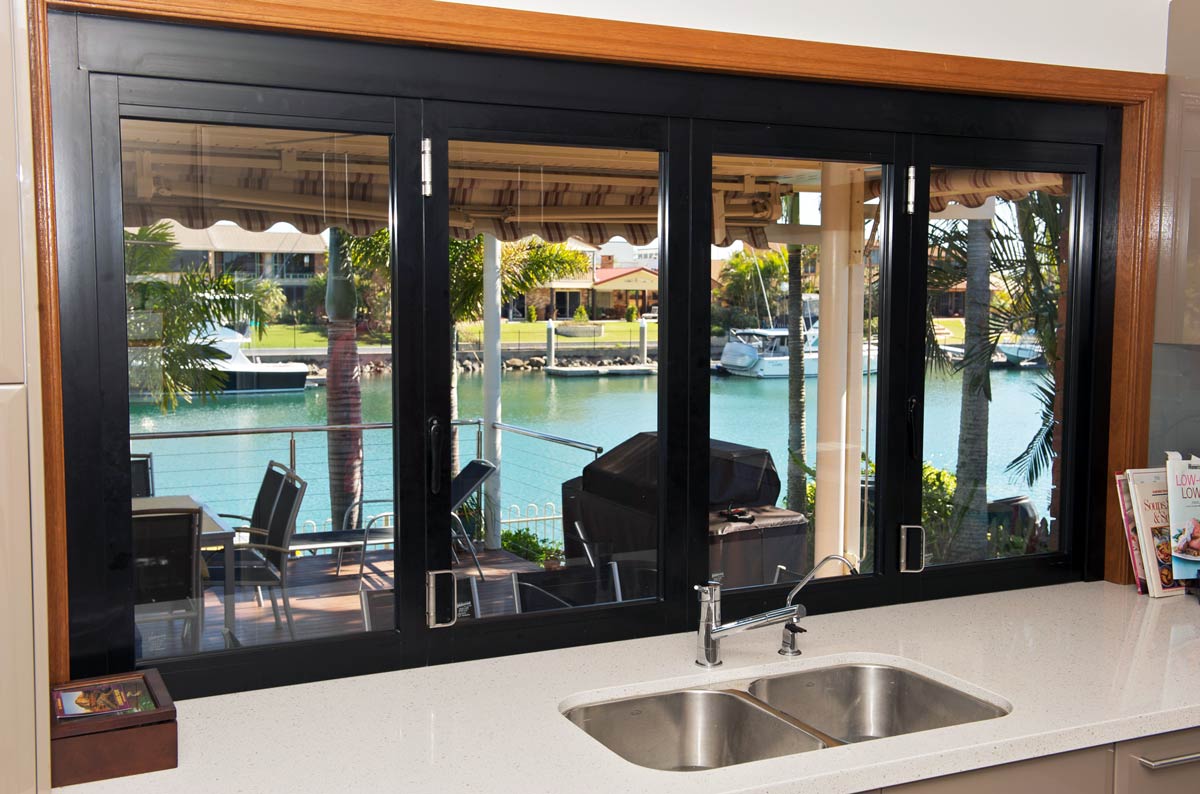

Servery Bifold Window

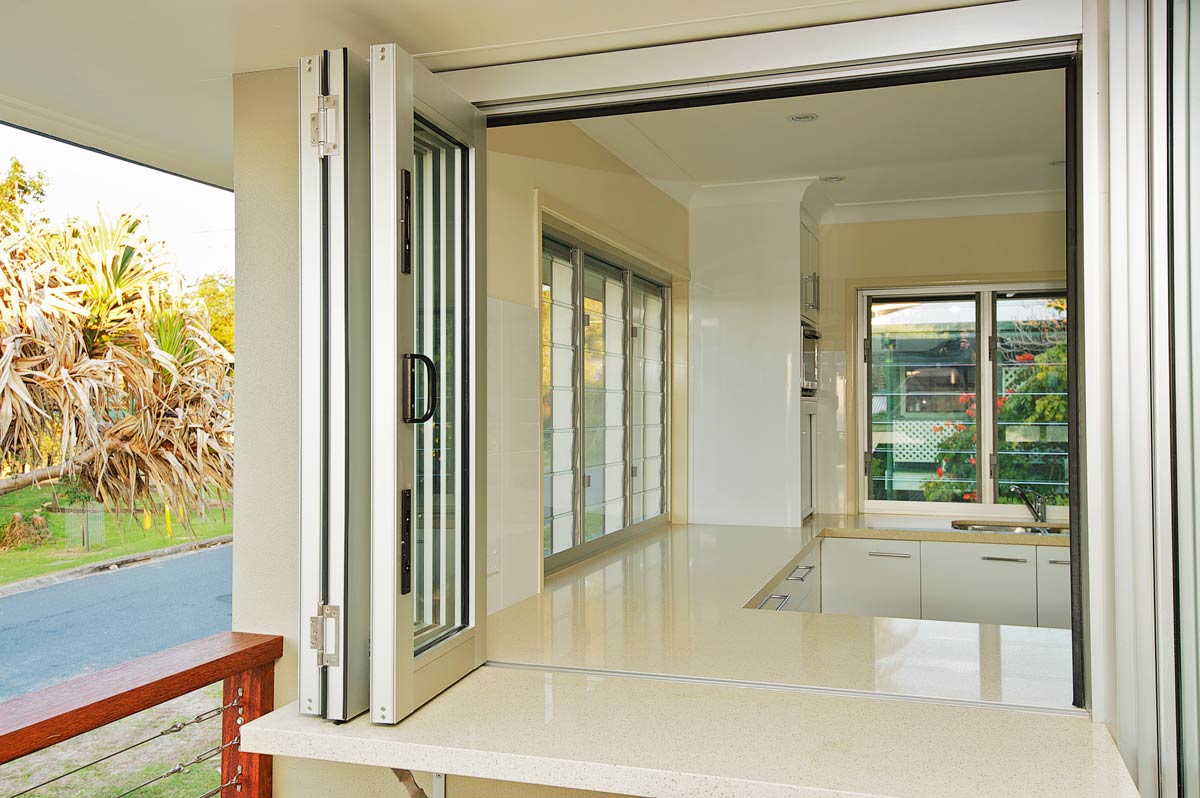

Servery Bifold Windows from our Alfresco range are a stylish, essential, and unique alternative to your standard sliding window. It’s a great way to engage outdoor and indoor integration as it provides an unobstructed wide opening, perfect for counters and serveries in a residential or commercial setting. The widespread clear opening not only provides benefits such as efficient functionality, but also creates an entrance for fresh air to ventilate and purify the internal atmosphere. Incorporated with state of the art E2 and E3 Centor hardware makes our Servery Bifold Window one of the best systems in today’s market.

Designed to Comply with Australian Standards AS1170, AS1288, AS2047 and AS4055

OPTIONS

E2 hardware offering economical and high quality features
E3 hardware for enhanced performance and larger door panels
Bottomless sill for unobstructed counter transition
Single or double glazing
Inward or outward folding configurations
90 degree post-less corner
Single direction or bi-parting openings
Dual, and three point locking systems for added security

FEATURES & BENEFITS

Ideal for residential counters and commercial serveries
Huge opening free of fixed glass panels, mullions and posts
Smooth gliding operation
Ezi-Seal technology for enhanced weatherability, insulation, and acoustics
Complete vertical and horizontal adjustments


SPECIFICATIONS

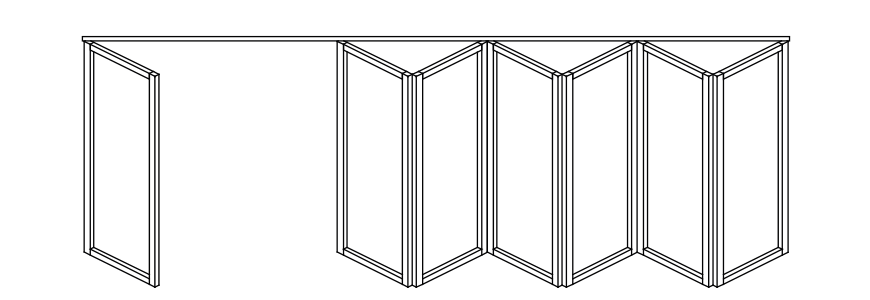

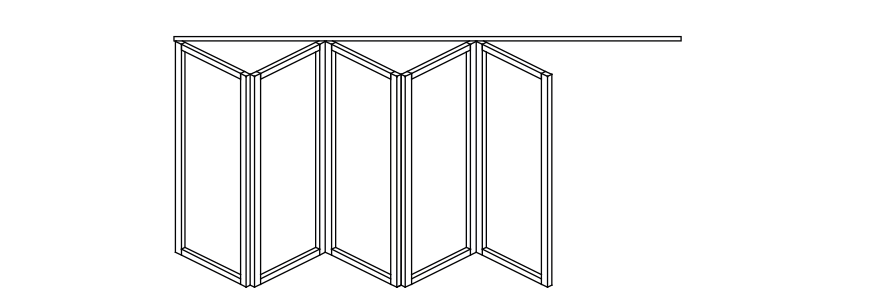

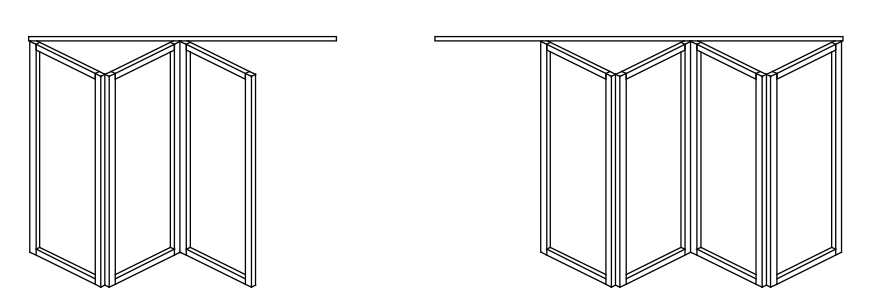

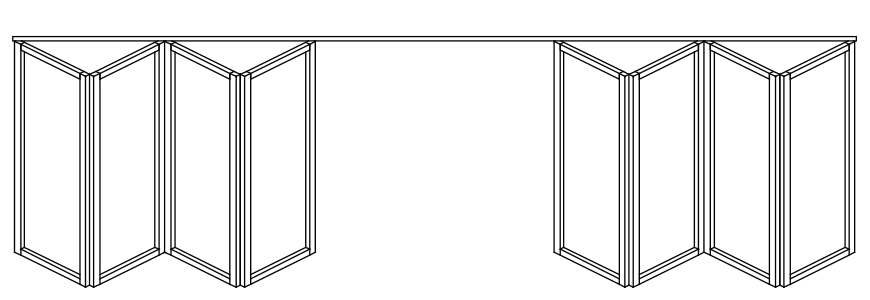

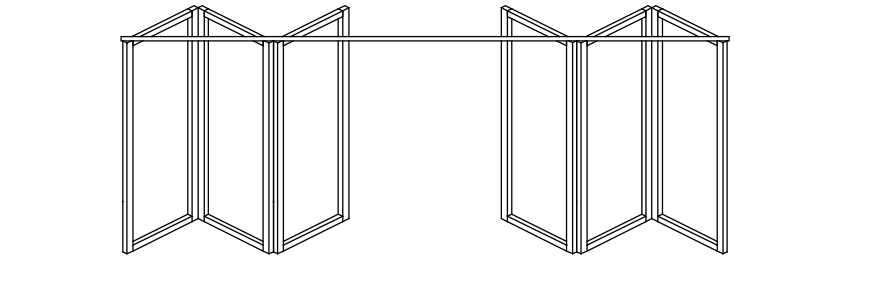

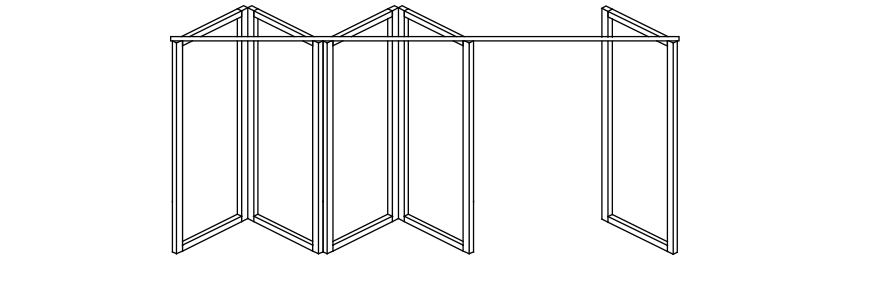

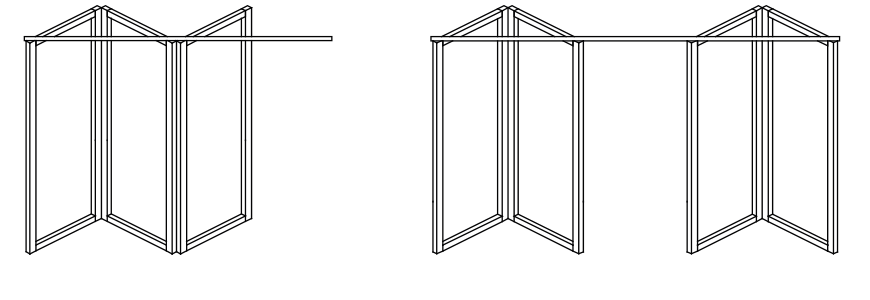

CONFIGURATION EXAMPLES (viewed from outside)

Frame Size
101.6mm

Max. Opening Size
3100mm high x 8000mm wide

Maximum Panel Size
3000mm high x 1050mm wide

Maximum Panel Weight
40kgs

Maximum No. of Panels
Up to 4 left + 4 right (8 in total)

Glazing Range
5mm - 13.5mm (16.2mm pocket)
13mm - 30mm (34.2mm pocket)

Arrow
Arrow
Depicted above are a selection of configuration examples. Thanks to our modular design, there are many other possible configurations available.

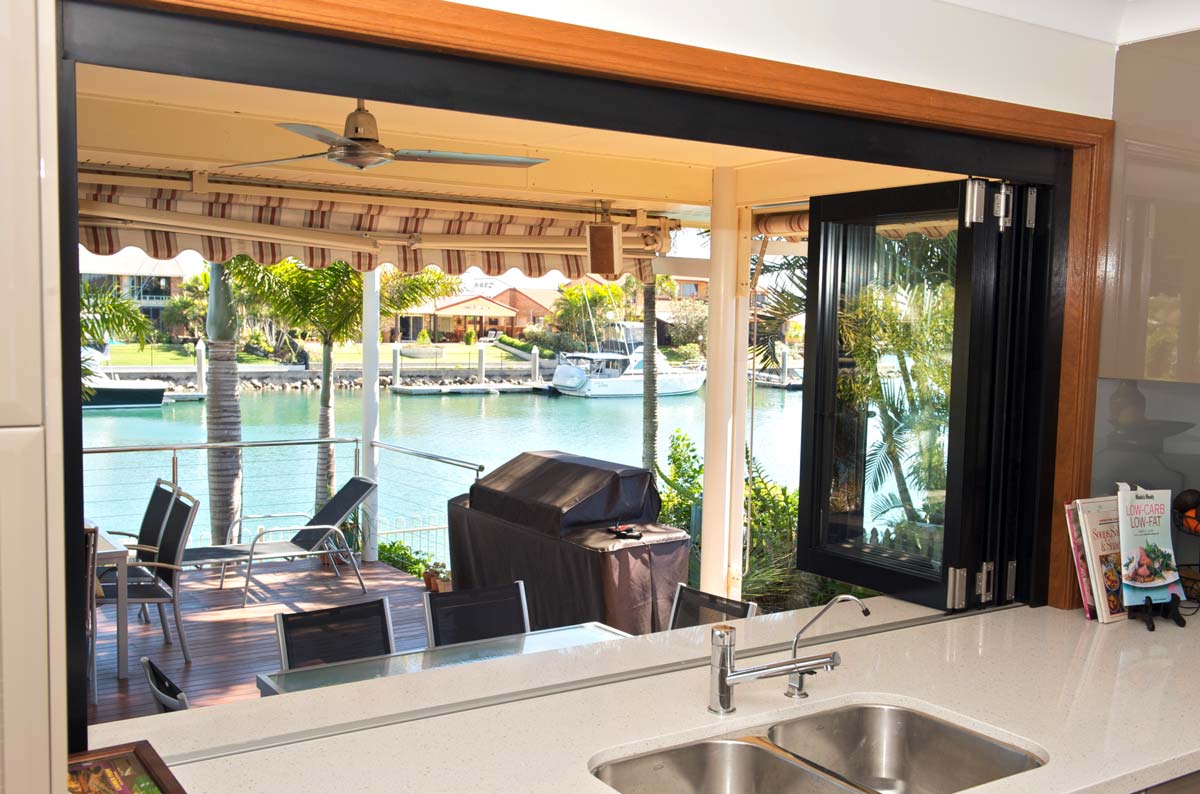

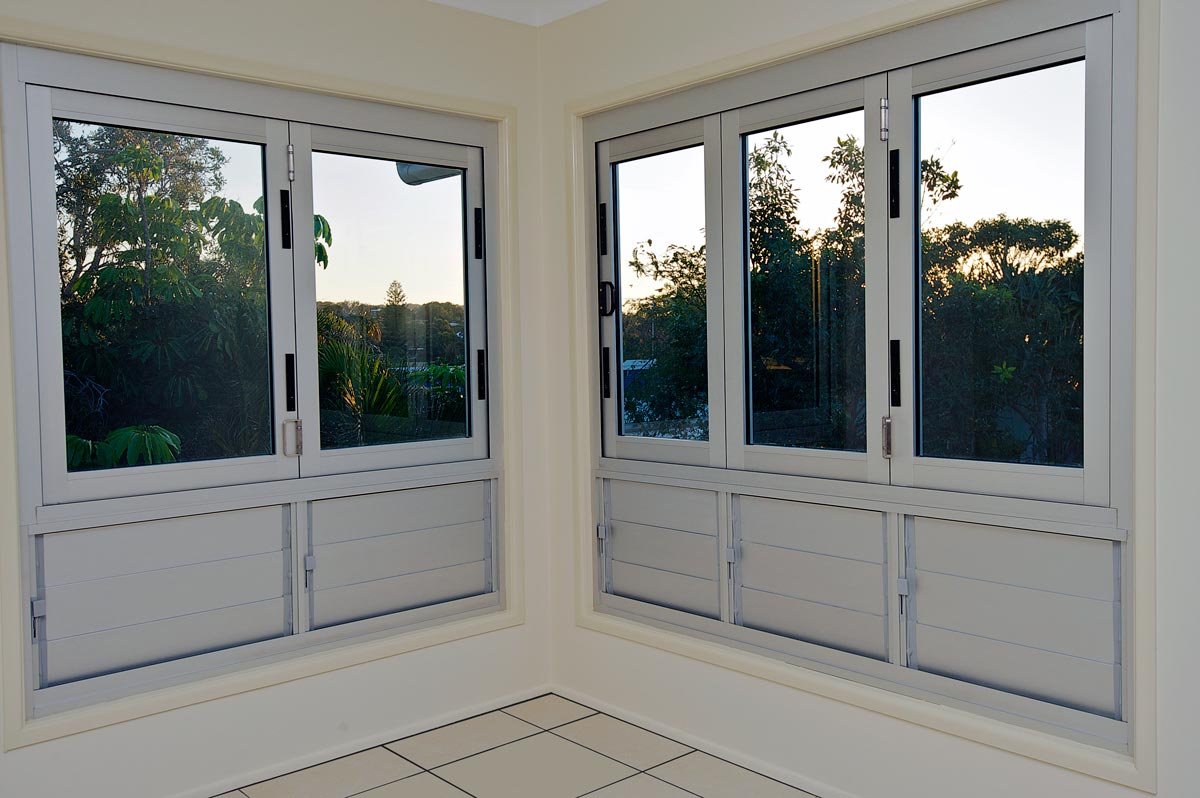

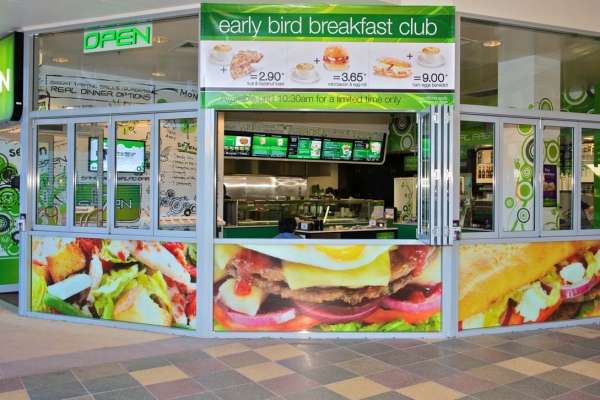

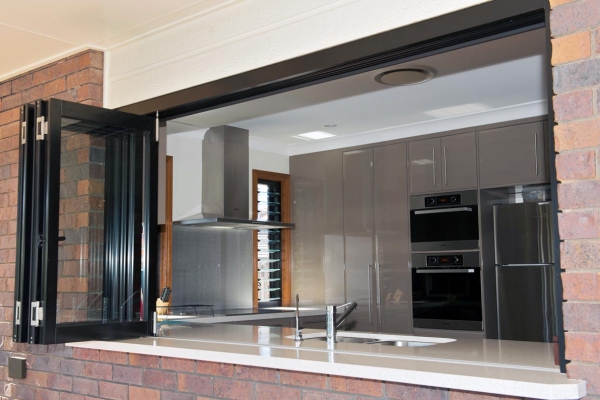

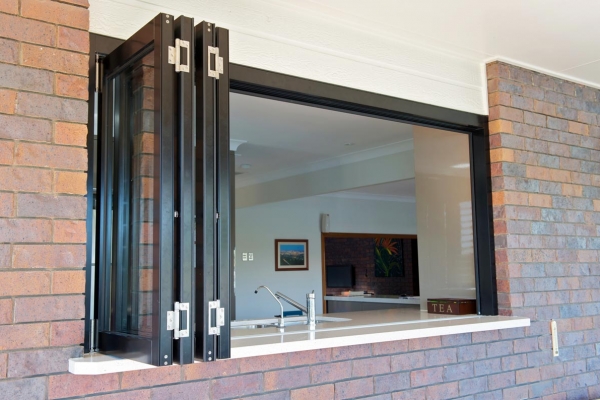

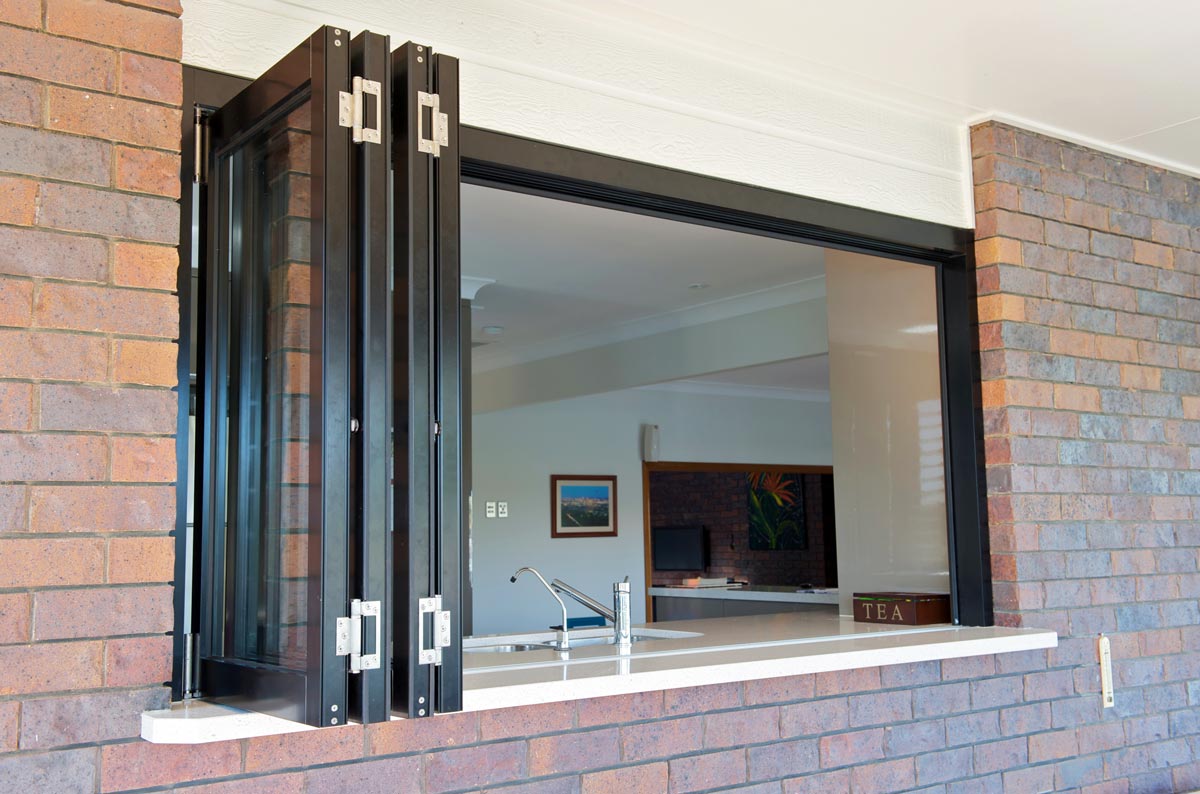

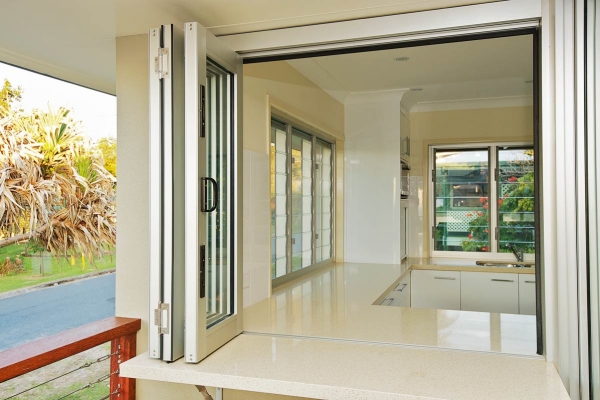

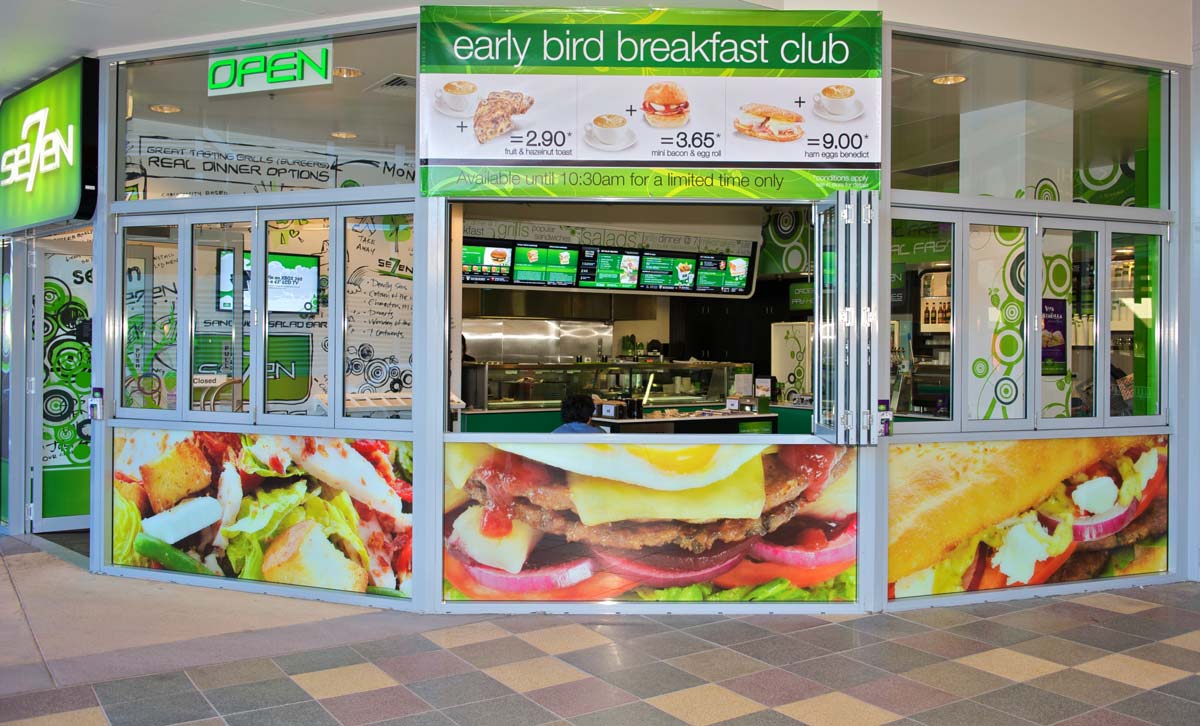

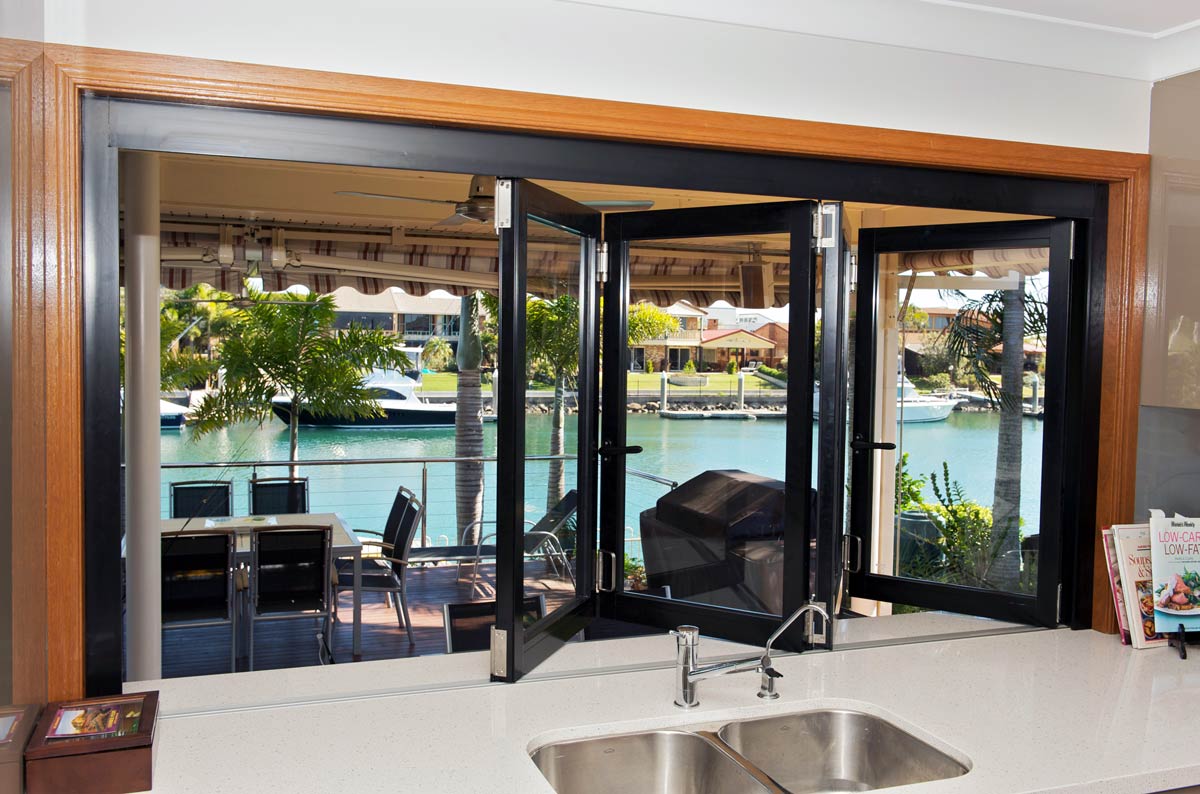

PHOTO GALLERY
