Wintergarden Bifold Window

The Wintergarden Bifold Window provides vast areas of glass to maximise natural light. Our innovative design combines a glass Balustrade and Bifold Window into a singular system. The smooth inward folding operation makes it safe and regulated for residential apartments and high-rise buildings. When fully closed, it transforms the exposed balcony into a secure enclosed area surrounded by a lustrous glass wall. Despite our slim and aesthetic design, our Wintergarden Bifold Window has been NATA tested and accredited to withstand a staggering 1500 Pascals of water penetration, making it potentially one of the most weatherable Bifold Systems in the world.

Designed to Comply with Australian Standards AS1170, AS1288, AS2047 and AS4055

OPTIONS
	Configured with fixed lowlights to create a fully enclosed balcony setting
	Single or double glazing
	Inward or outward folding configurations
	Single direction or bi-parting openings
	Various screening alternatives
	Dual, and three point locking systems for added security

FEATURES & BENEFITS
	Dual, and three point locking systems for added security
	Maximise natural light
	Smooth gliding operation
	Ezi-Seal technology for enhanced weatherability, insulation, and acoustics
	Movement controlled by articulated carriers
	Sill covers to prevent dirt accumulation
	Guards to remove any debris
	Drainage holes to flush away water and dust
	NATA tested and accredited

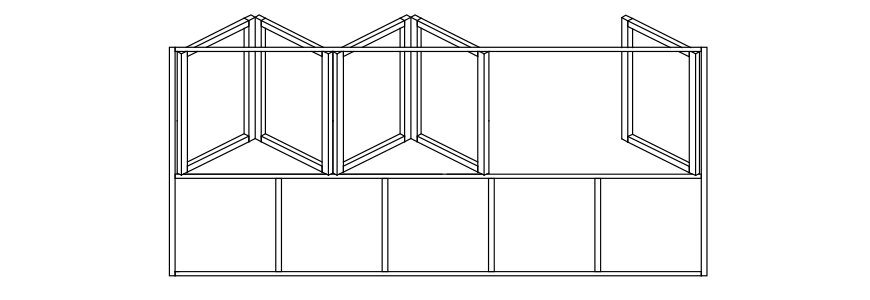

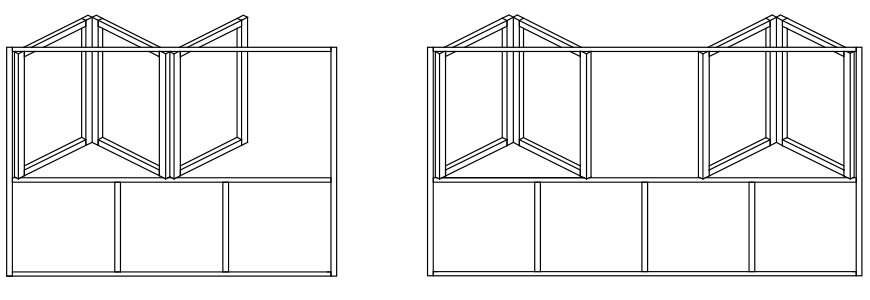

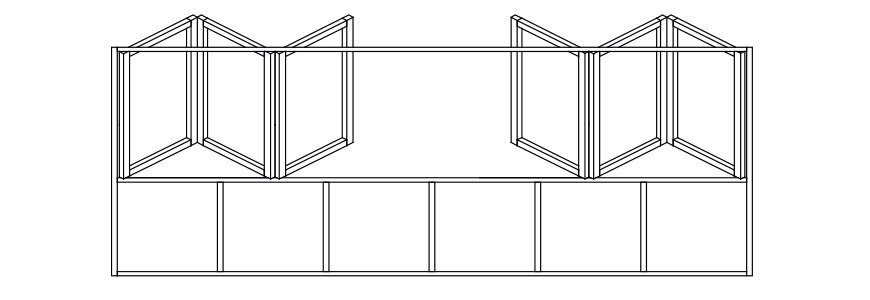

SPECIFICATIONS	CONFIGURATION EXAMPLES (viewed from outside)
Frame Size 101.6mm Max. Opening Size 2750mm high x 16000mm wide Maximum Panel Size 2700mm high x 1000mm wide Maximum Panel Weight 80kgs Maximum No. of Panels Up to 8 left + 8 right (16 in total) Glazing Range 5mm - 13.5mm (16.2mm pocket) 13mm - 30mm (34.2mm pocket)	Depicted above are a selection of configuration examples. Thanks to our modular design, there are many other possible configurations available.

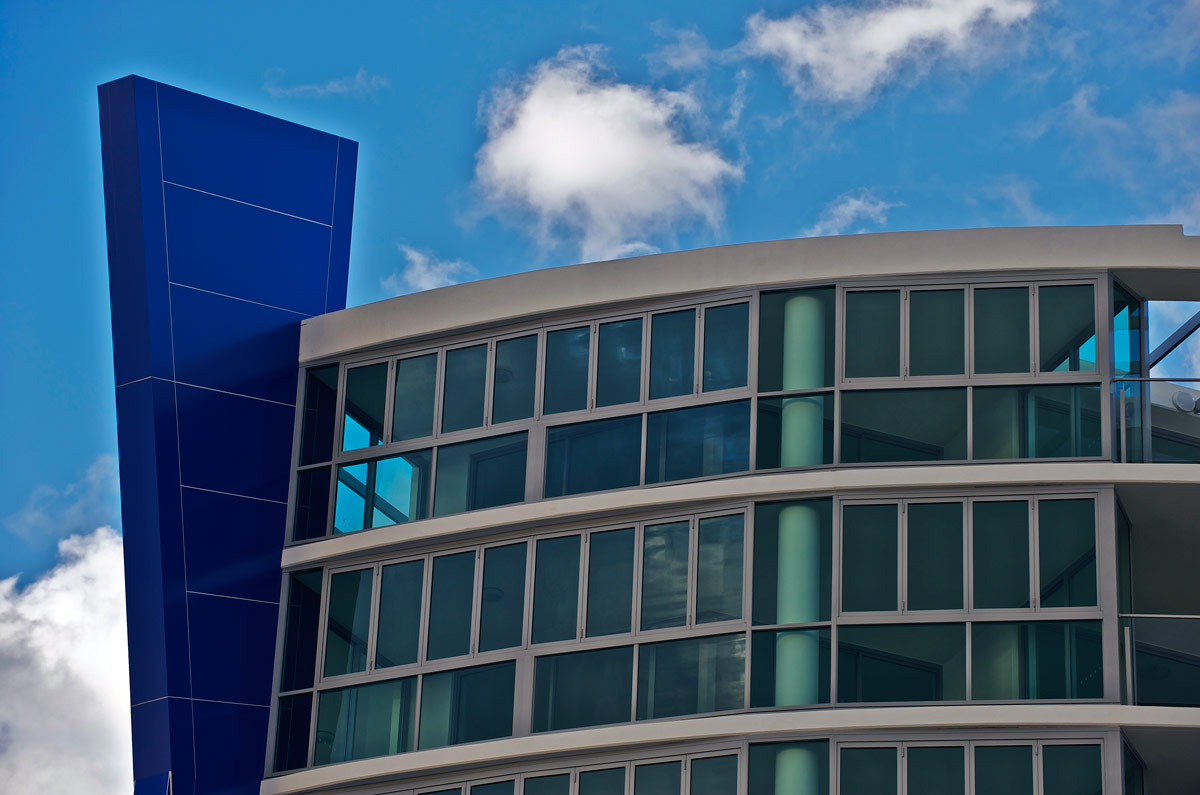

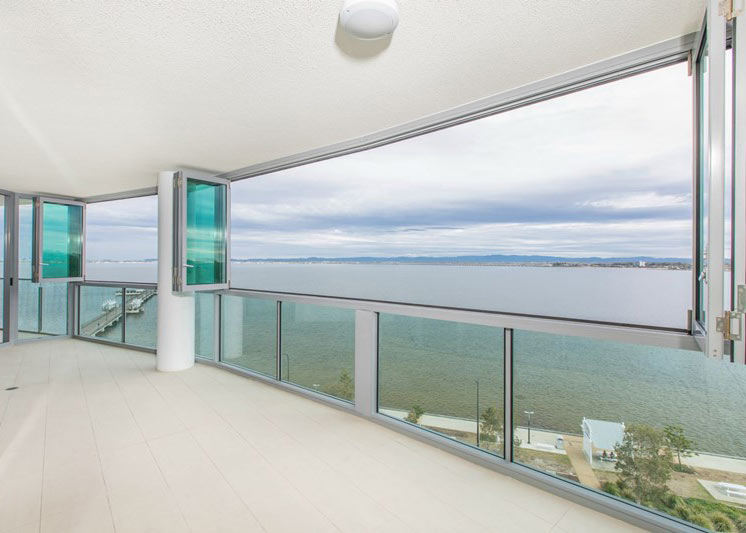

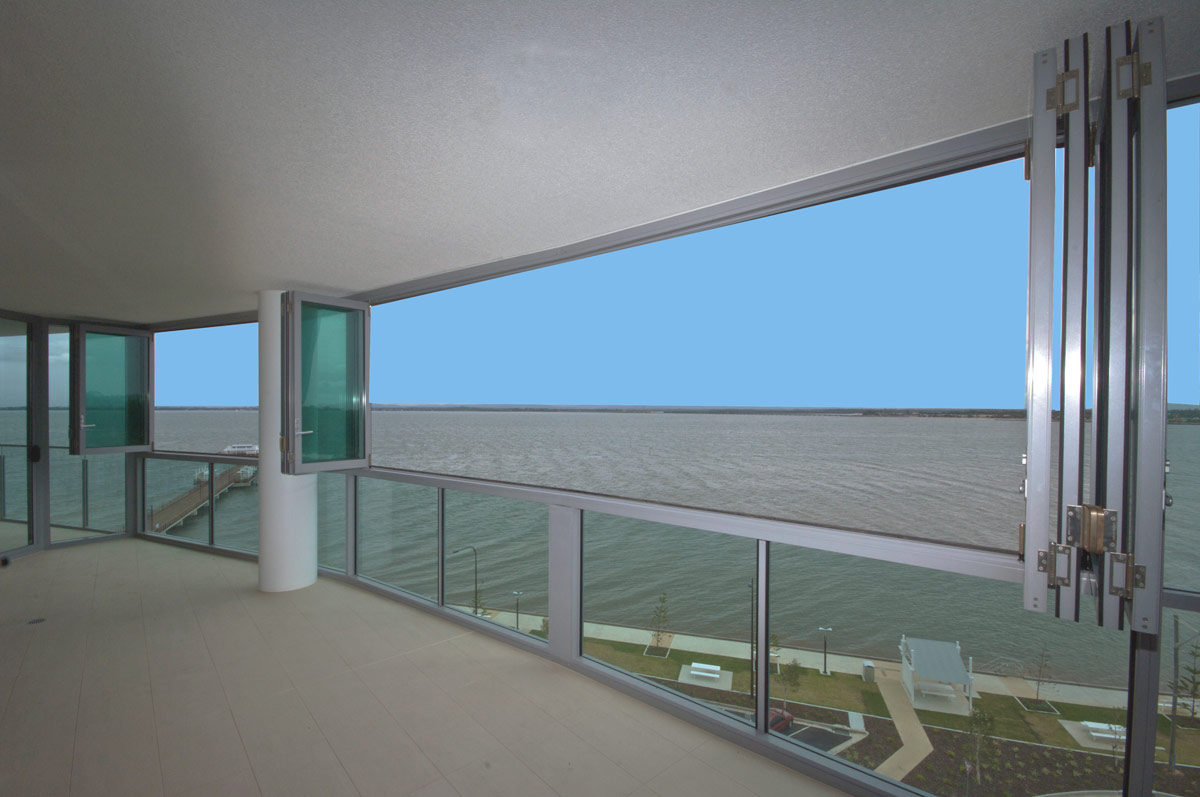

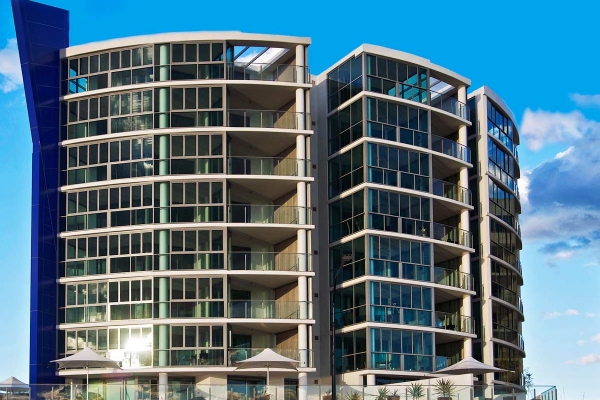

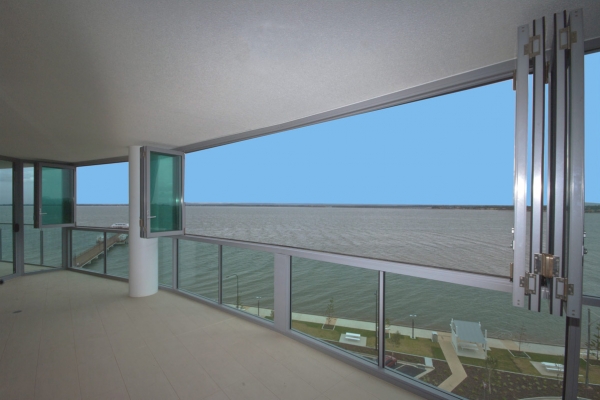

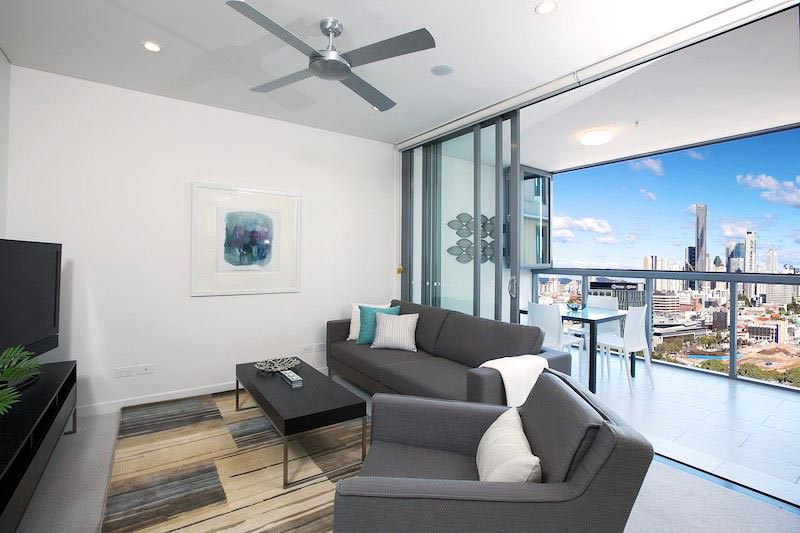

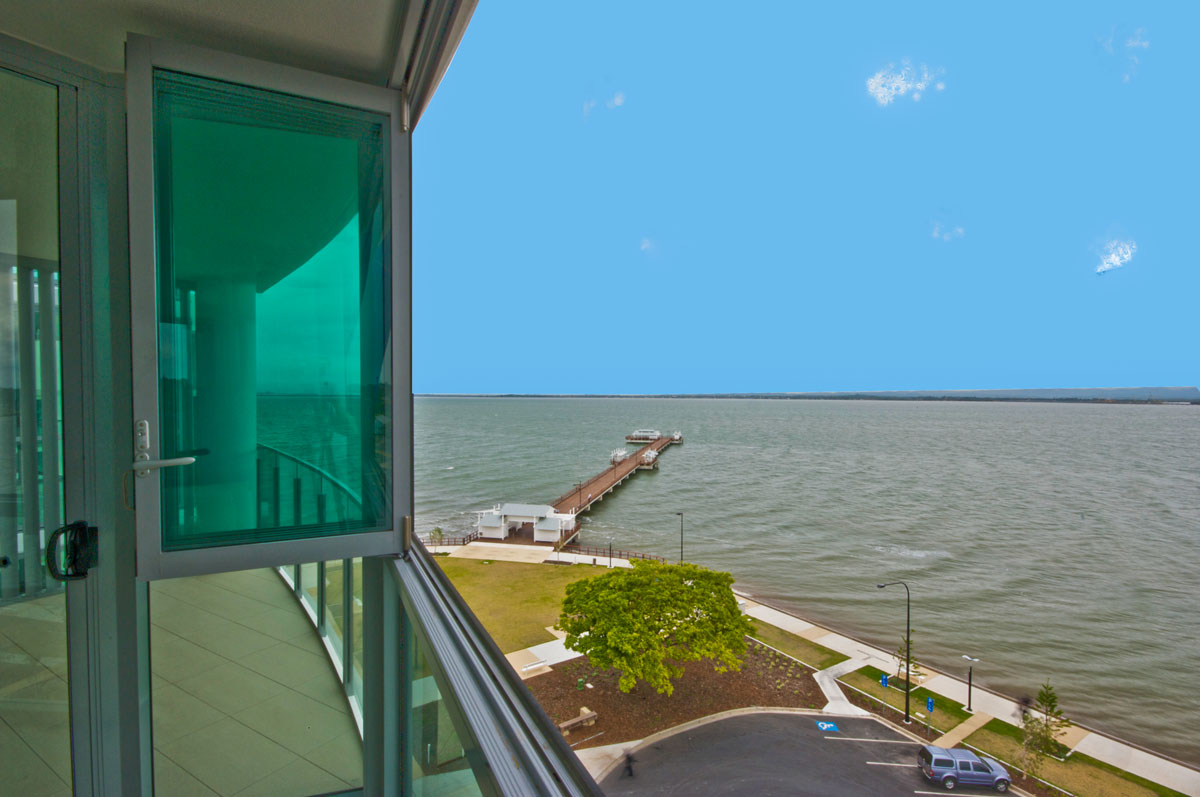

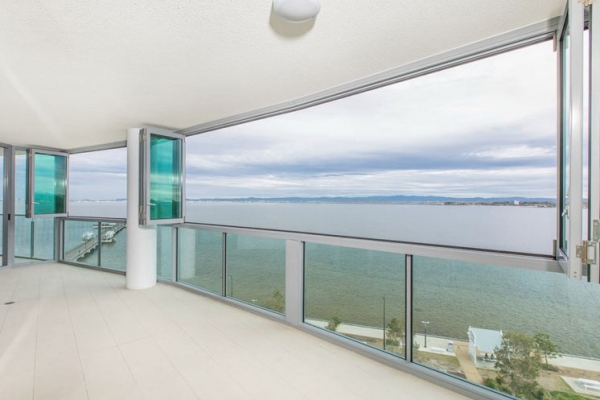

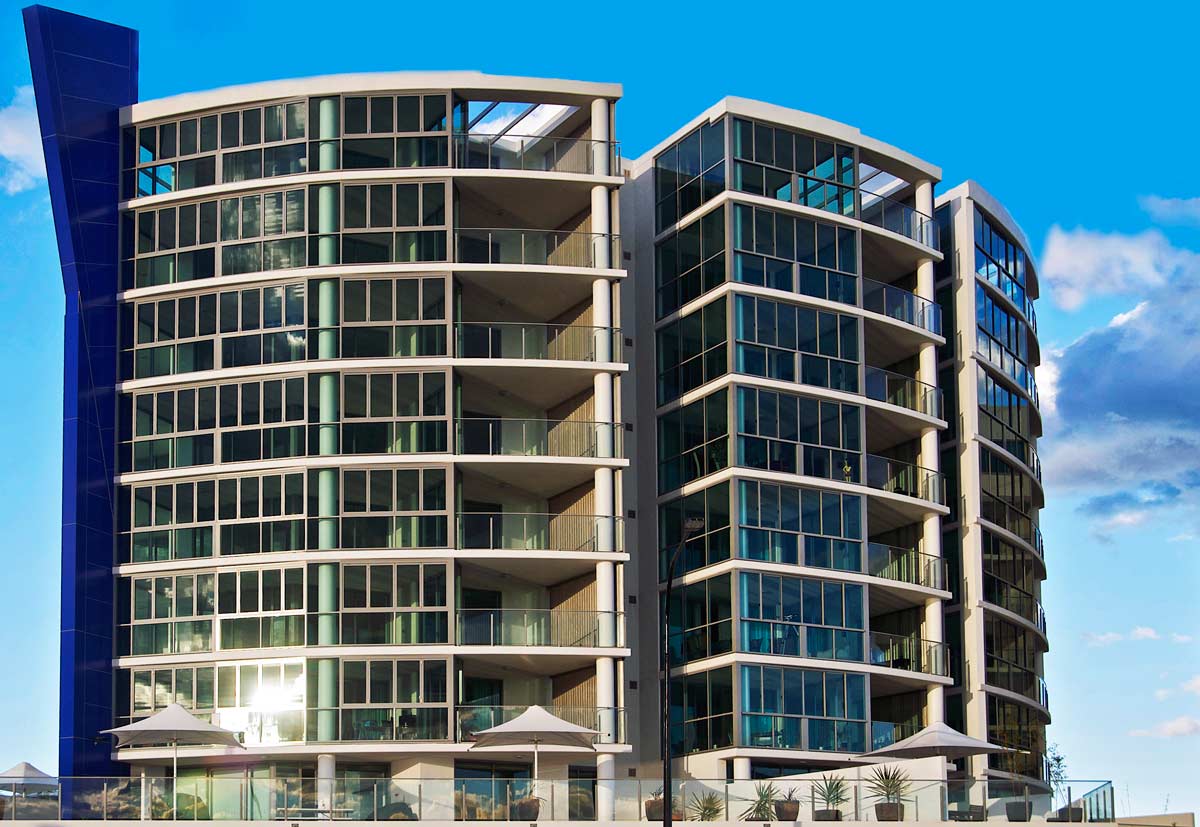

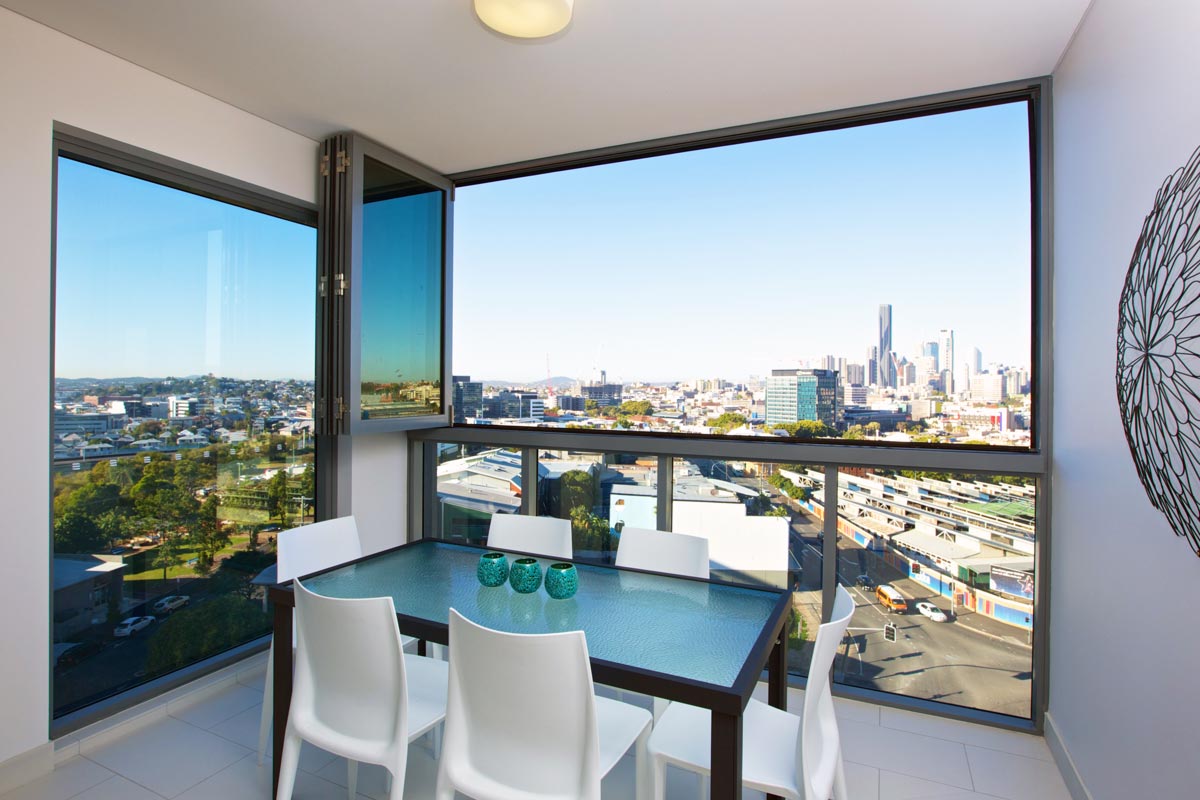

PHOTO GALLERY
