Stackable Front Glaze

Our Stackable Front Glazed support structure is virtually invisible, exhibiting a flat and lustrous glass fa├žade. Our unique system delivers taller and broader glass openings on multiple floors complementary for augmented views. Large commercial buildings can often expand, sway, and contract. Our innovative designing has incorporated features to control these factors by providing a durable yet flexible system that also delivers exceptional water diversion and thermal efficiency. The costs of materials to construct a Stackable Front Glazed System is significantly lower in comparison to a suspended system, thus providing a contemporary yet economical alternative for your next commercial project.

Designed to Comply with Australian Standards AS1170, AS1288, AS2047 and AS4055

OPTIONS

Subframing for exposed areas
Mullion splicing for enhanced strength and durability
Internal, external or structurally bonded glazing
Combinational adaptability with various systems across our entire Ezial range
Mullion splicing for enhanced strength and durability
Options of internal or external glazing

FEATURES & BENEFITS

Almost invisible support structure
Higher and wider glass openings on multiple floors
Designed to cater for expansion and contraction and structural movement
Lower material costs when compared to a suspended system
Significantly a wide range of expansion and contraction movement limits between floors
Reduced labour costs with the use of a captive wedge
Simple and efficient fabrication with the use of straight cutting
Self-draining sills and transom designs enhancing water management and weatherability
High performance seals for optimum insulation, acoustics, and weatherability


SPECIFICATIONS

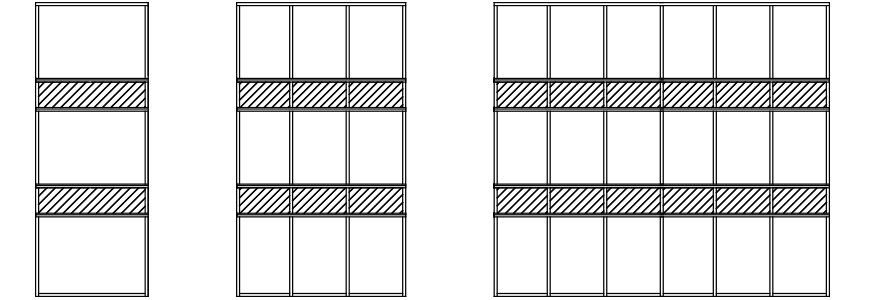

CONFIGURATION EXAMPLES (viewed from outside)

Frame Size
150mm

Maximum Frame Size (single)
3500mm high x 1500mm wide

Maximum No. of Frames
Unlimited

Glazing Range
5mm - 13.5mm (single)
13mm - 28mm (double)

Arrow
Arrow
Depicted above are a selection of configuration examples. Thanks to our modular design, there are many other possible configurations available.

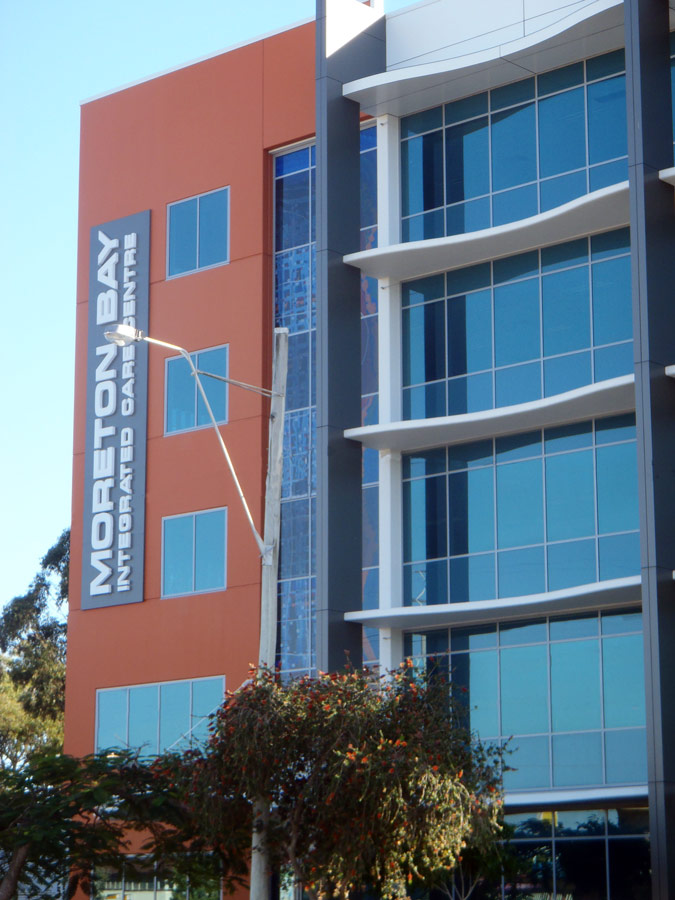

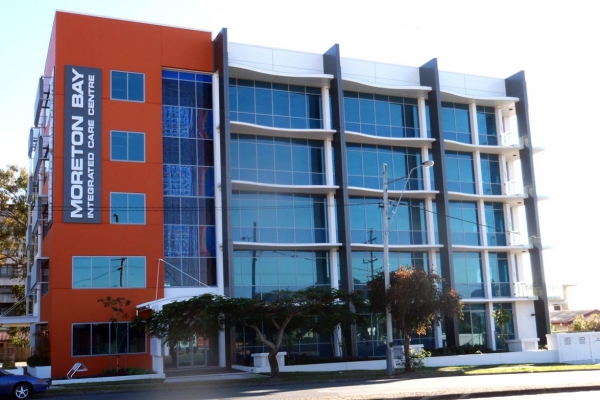

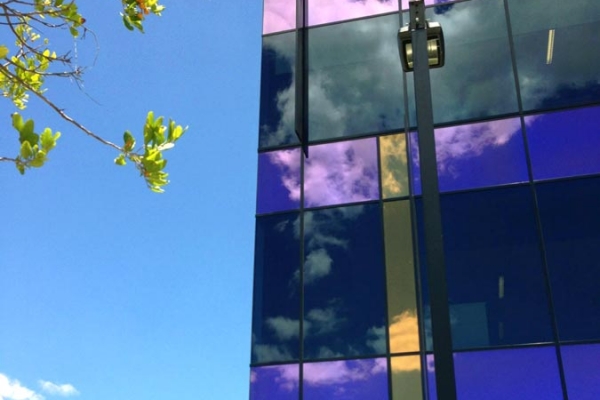

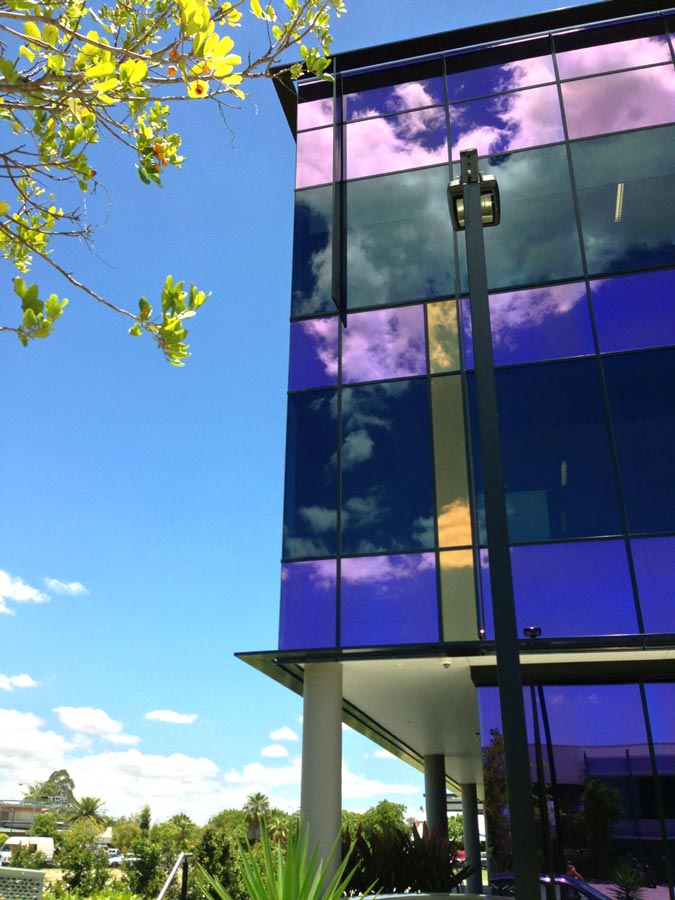

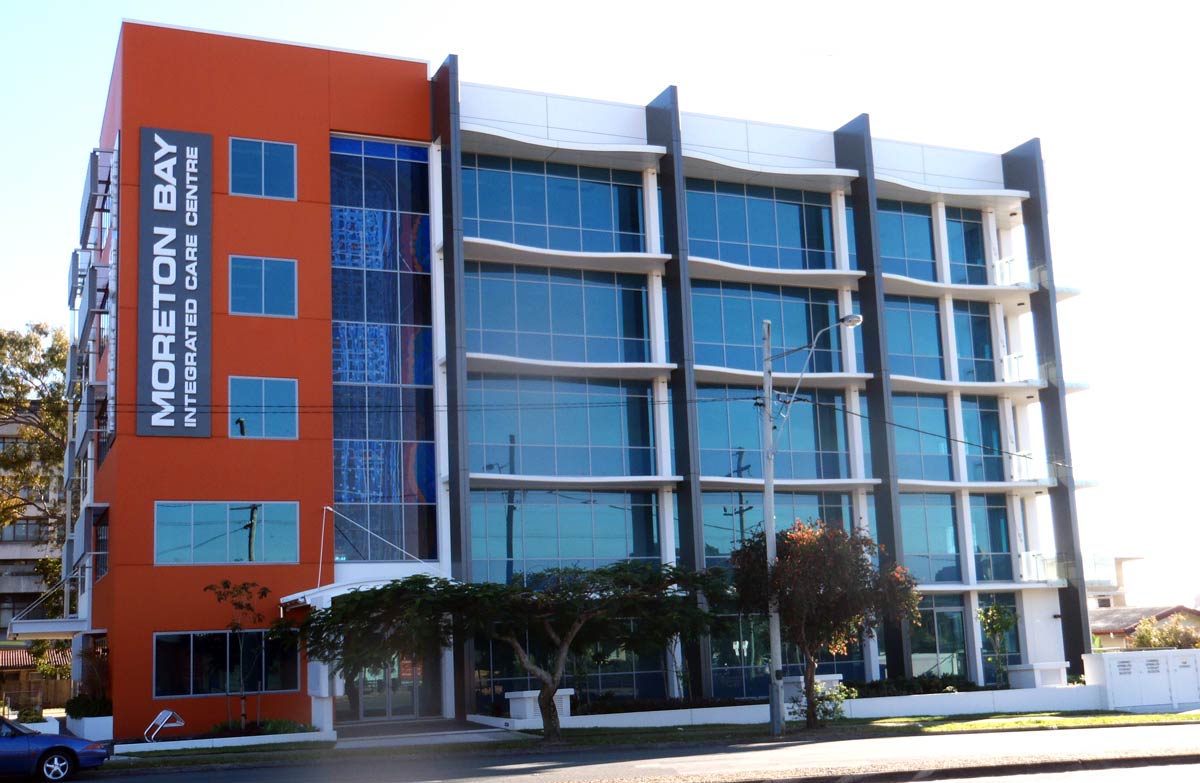

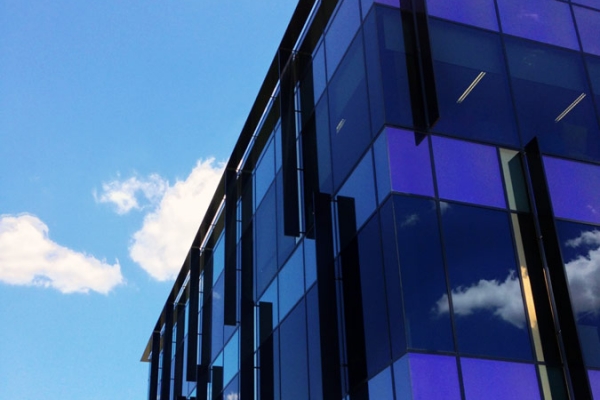

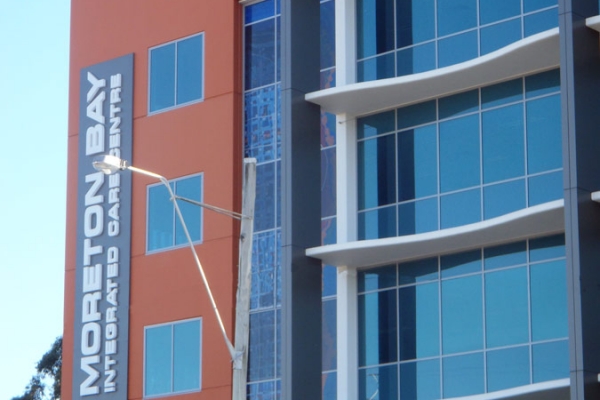

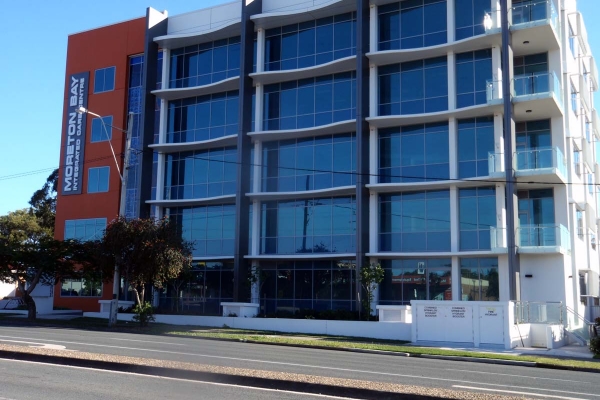

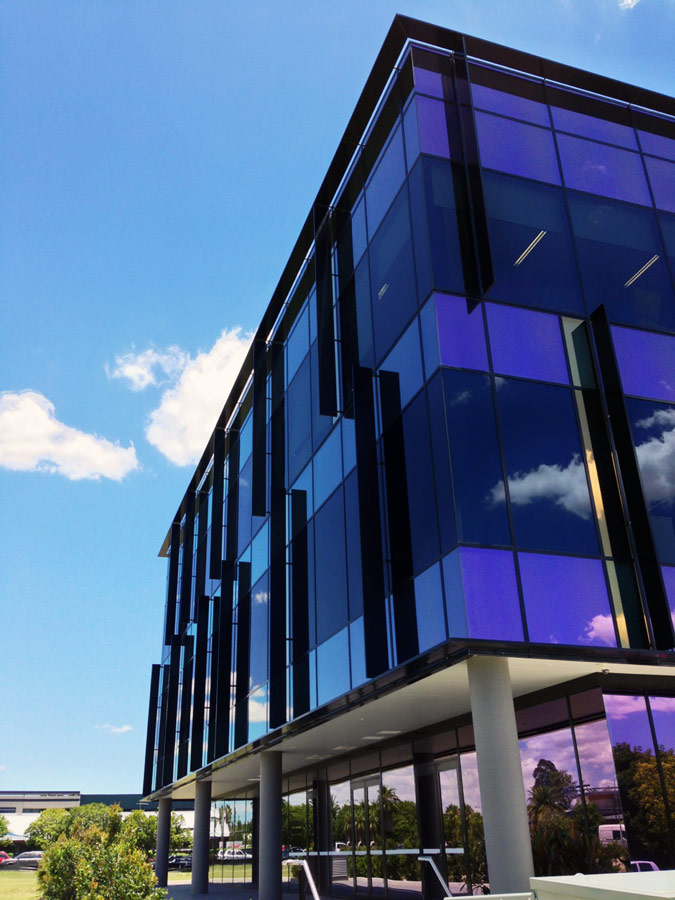

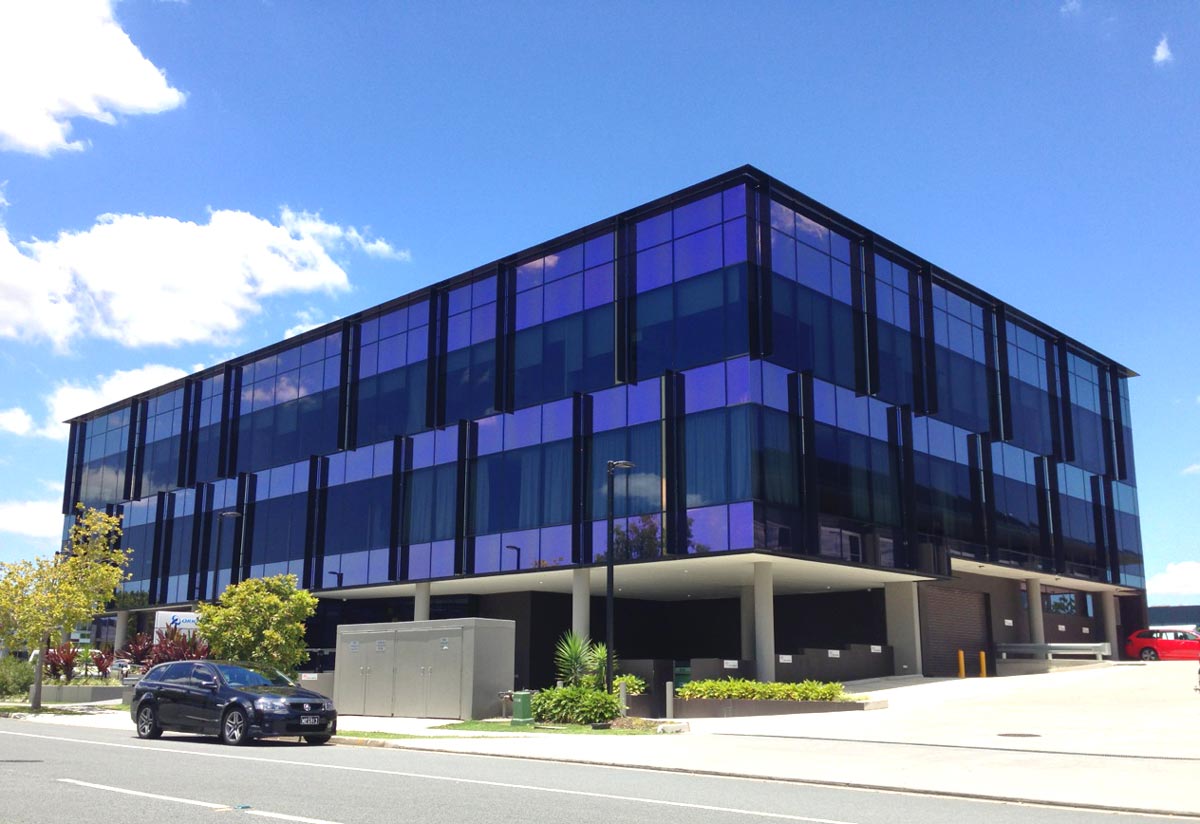

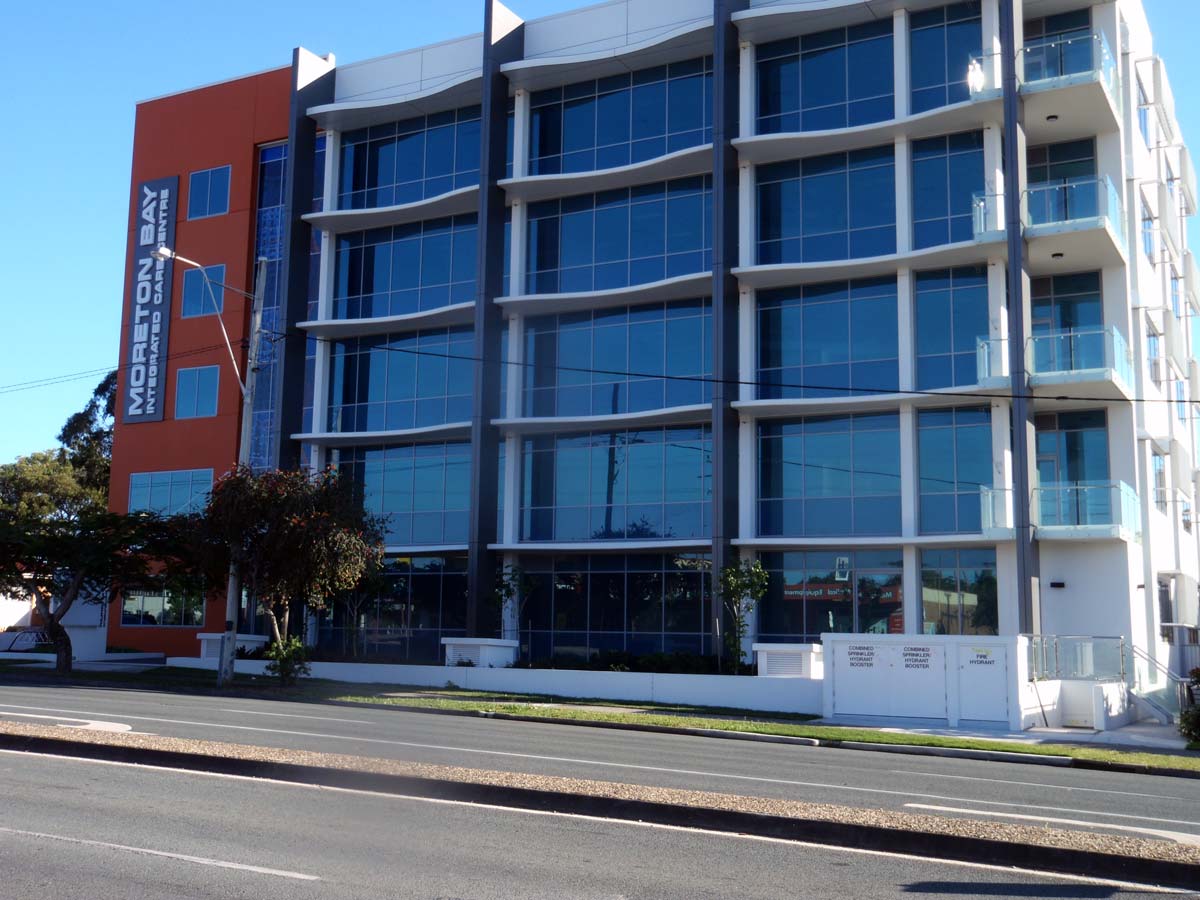

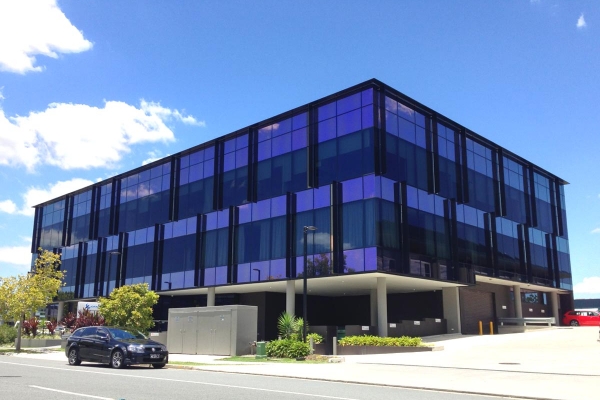

PHOTO GALLERY
