WELCOME TO THE EFINITY RANGE OF 45MM SLIDING DOOR SYSTEMS

The term ‘Efinity’, represents our versatile sliding door range which has the potential to produce infinite possibilities, thanks to our unique design which has the aptitude to embrace endless sliding door panels to cater for various types of projects from simple to complex. Our diverse configuration options encourage spacious openings which not only benefits with uninterrupted views, but also intertwines the outdoors with the indoors providing a well-balanced environmental atmosphere. Collaborating our sophisticated design, tested strength and durability, as well as the incorporation of our Ezi-Seal and Ezi-Slide technology, ensures you will be attaining one of the best Sliding Door Systems in today’s market.

Designed to Comply with Australian Standards AS1170, AS1288, AS2047 and AS4055
Design Registration numbers 337303, 337318, 338599, 341487, 344750

OPTIONS

Top or bottom rolling track systems
Single direction or bi-parting openings
90 degree post-less corner
Single or Multiple tracks for either large single panels, or multi-panel stackable formations
Versatile configuration options for sidelights, highlights & lowlights
Install within the building’s façade, slide internally, externally or in the cavity of the wall.
Diverse range of rail and stiles
High and low profile performance sills ranging from 0mm-50mm
Configured with fixed louvre blades for additional privacy

FEATURES & BENEFITS

Aesthetically designed to suit any modern décor
Tested strength and durability to comply with Australian Standards
Innovative Ezi-Seal technology for effective insulation and noise reduction
Ezi-Slide technology for smooth operation.
Compatible with a range of insect and security screens
Simple and efficient installation
Adaptable with a wide array of quality hardware brands


SPECIFICATIONS

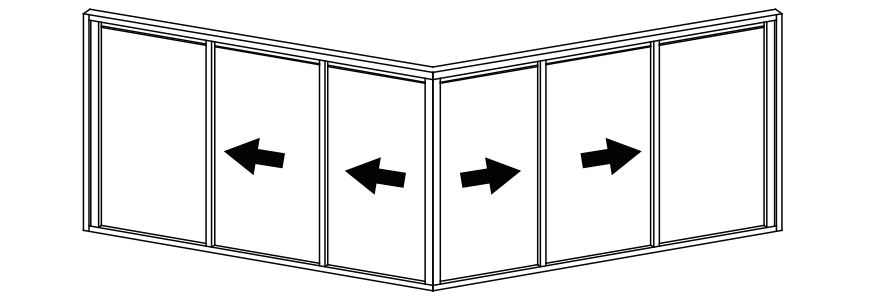

CONFIGURATION EXAMPLES (viewed from outside)

Frame Sizes
From 50mm to Infinity

Maximum Opening Size
3200mm high x Infinite Possibilities wide

Maximum Panel Size
3100mm high x 3200mm wide

Maximum Panel Weight
300kgs

Maximum No. of Panels
Unlimited

Glazing Range
5mm - 13.5mm (16.2mm pocket)
13mm - 30mm (34.2mm pocket)

Arrow
Arrow
Slider
Depicted above are a selection of configuration examples. Thanks to our modular design, there are many other possible configurations available.

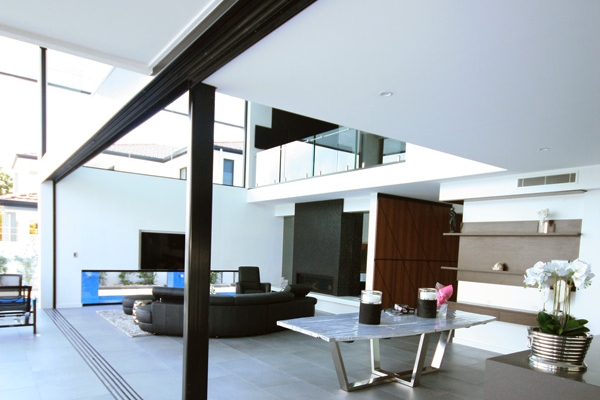

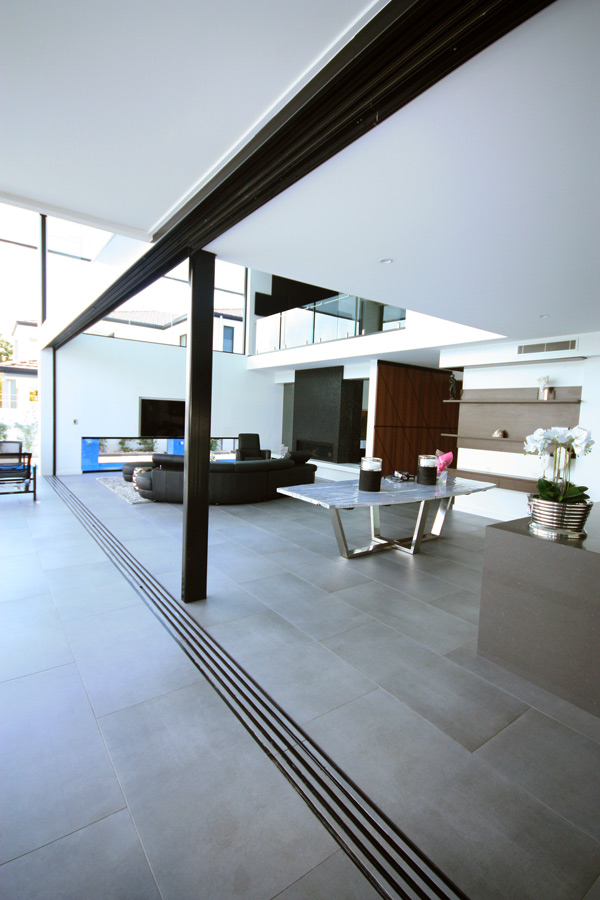

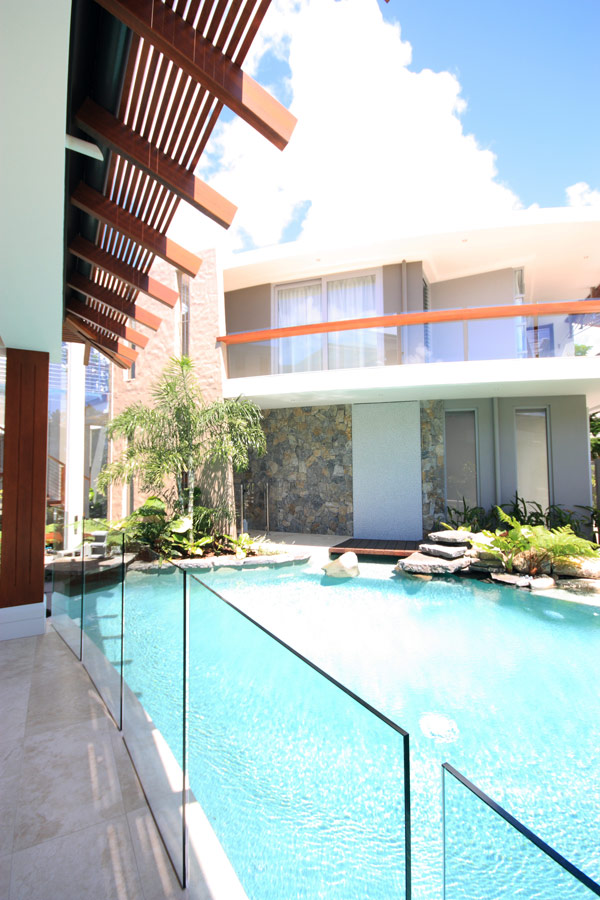

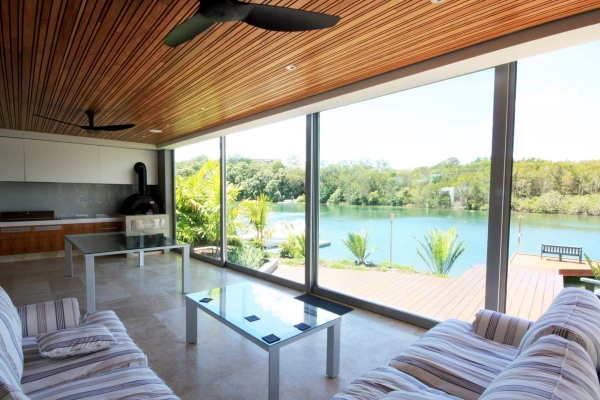

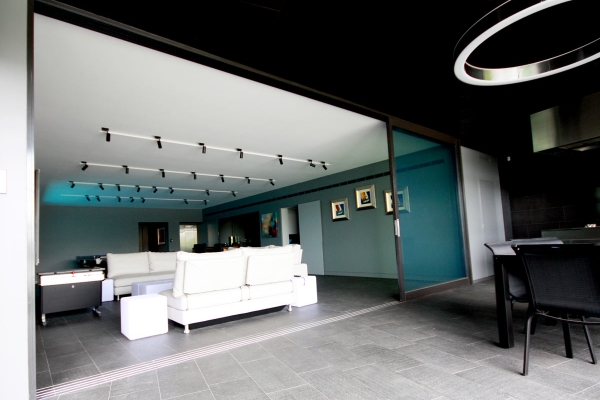

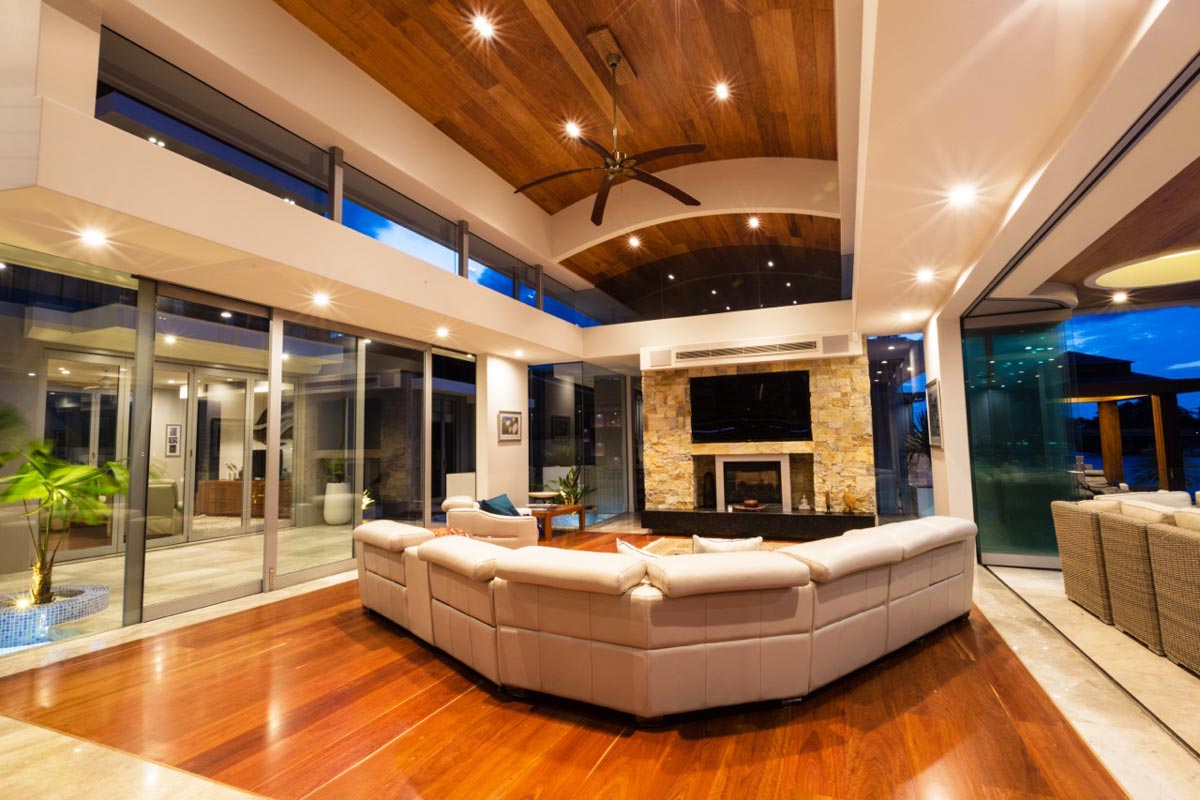

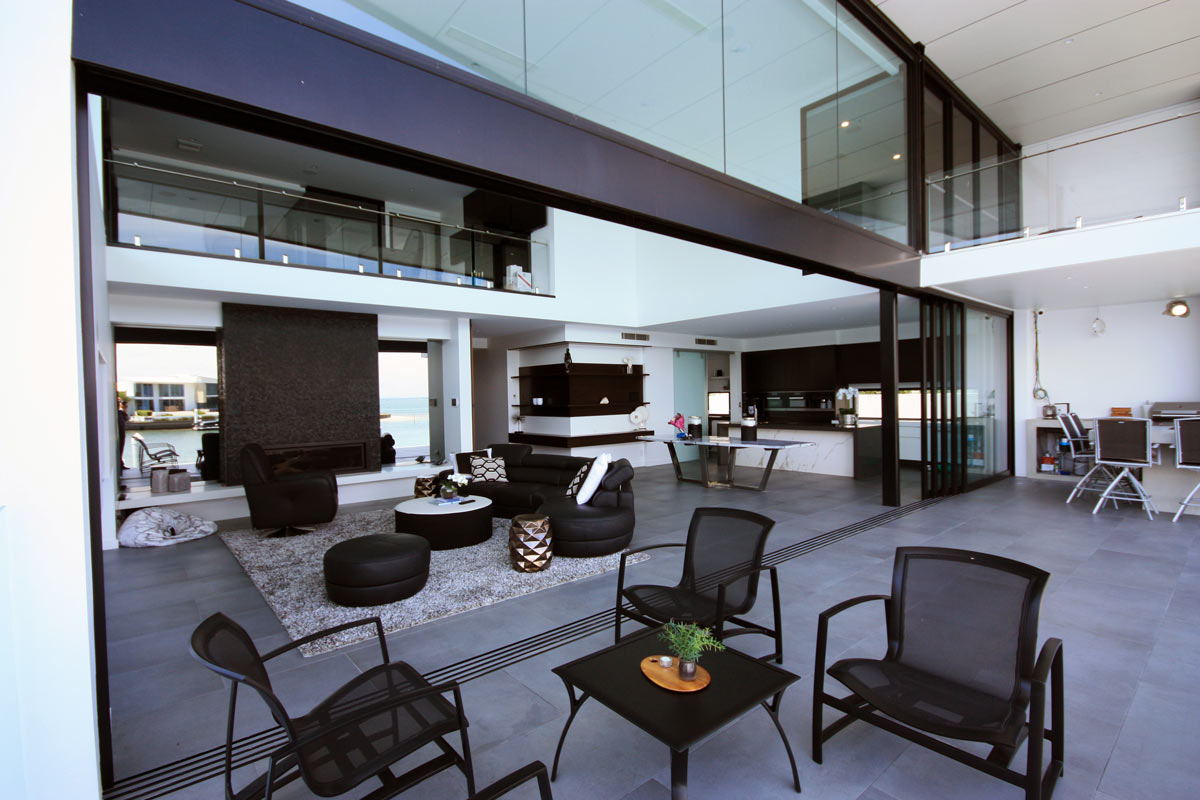

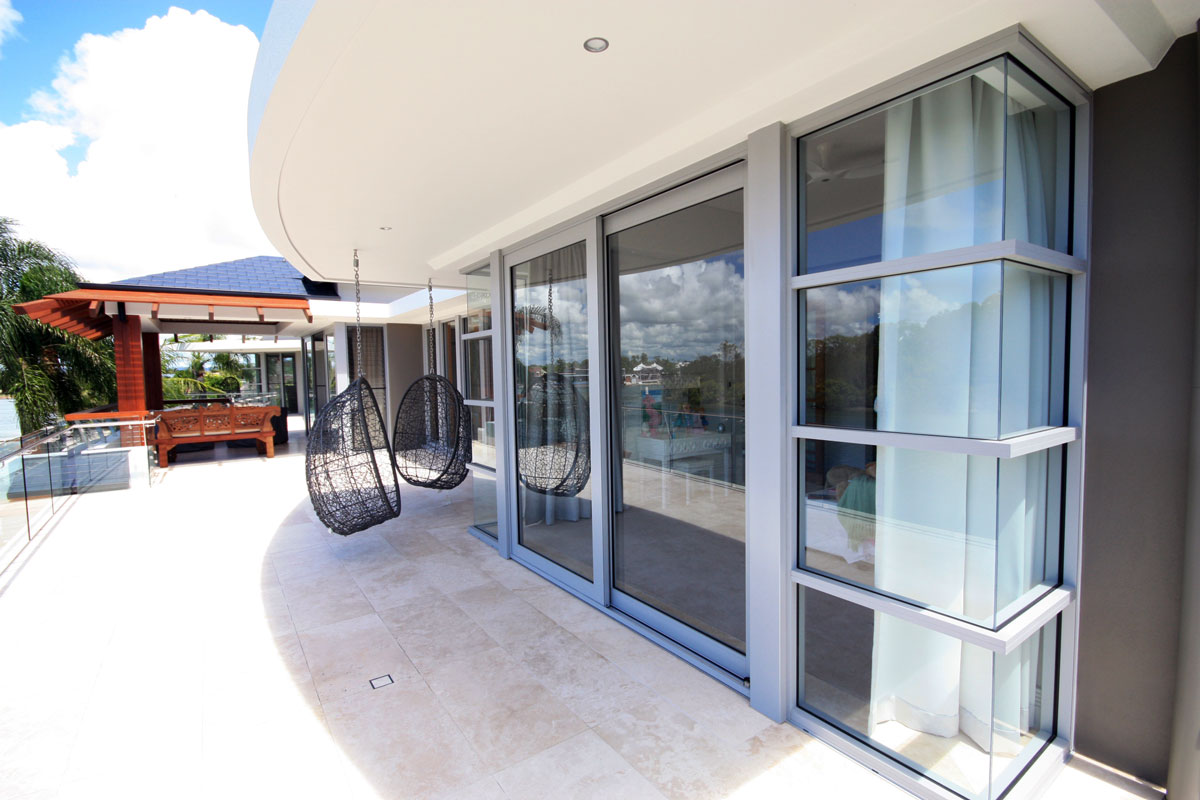

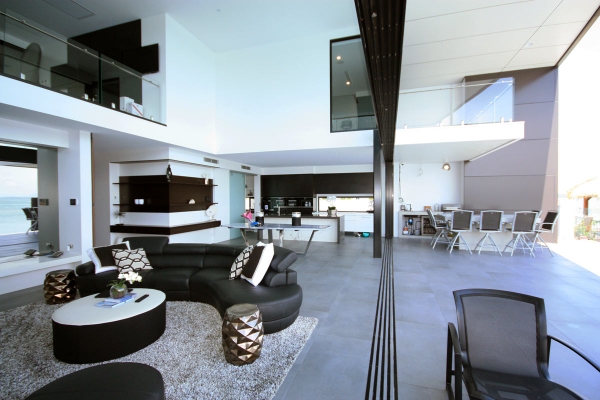

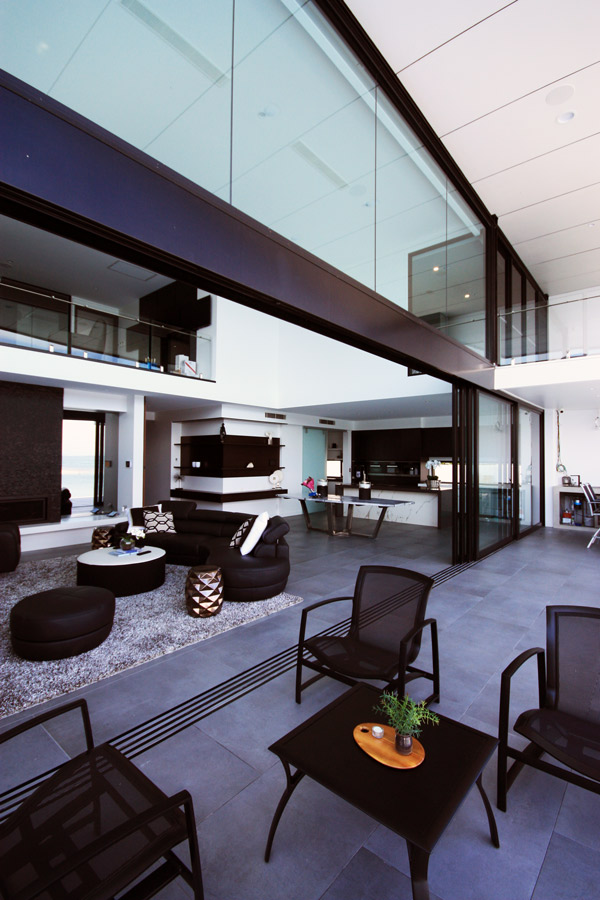

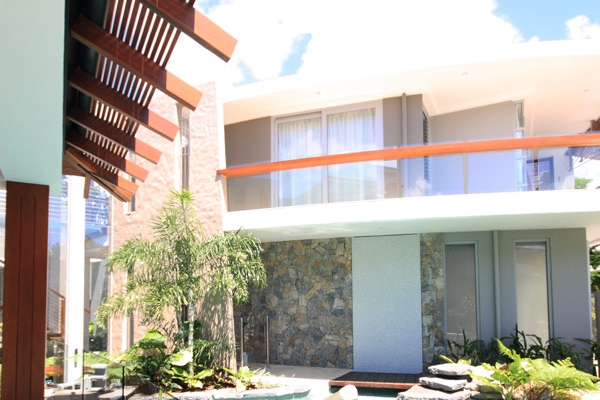

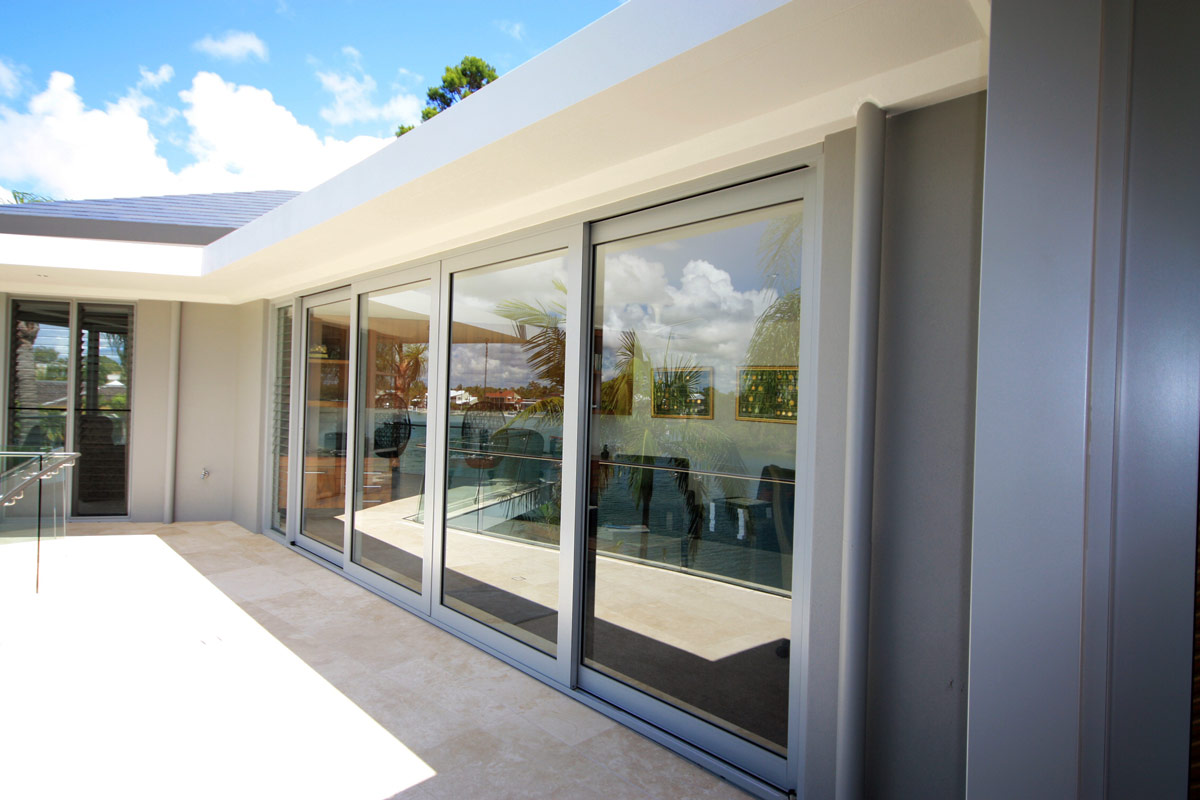

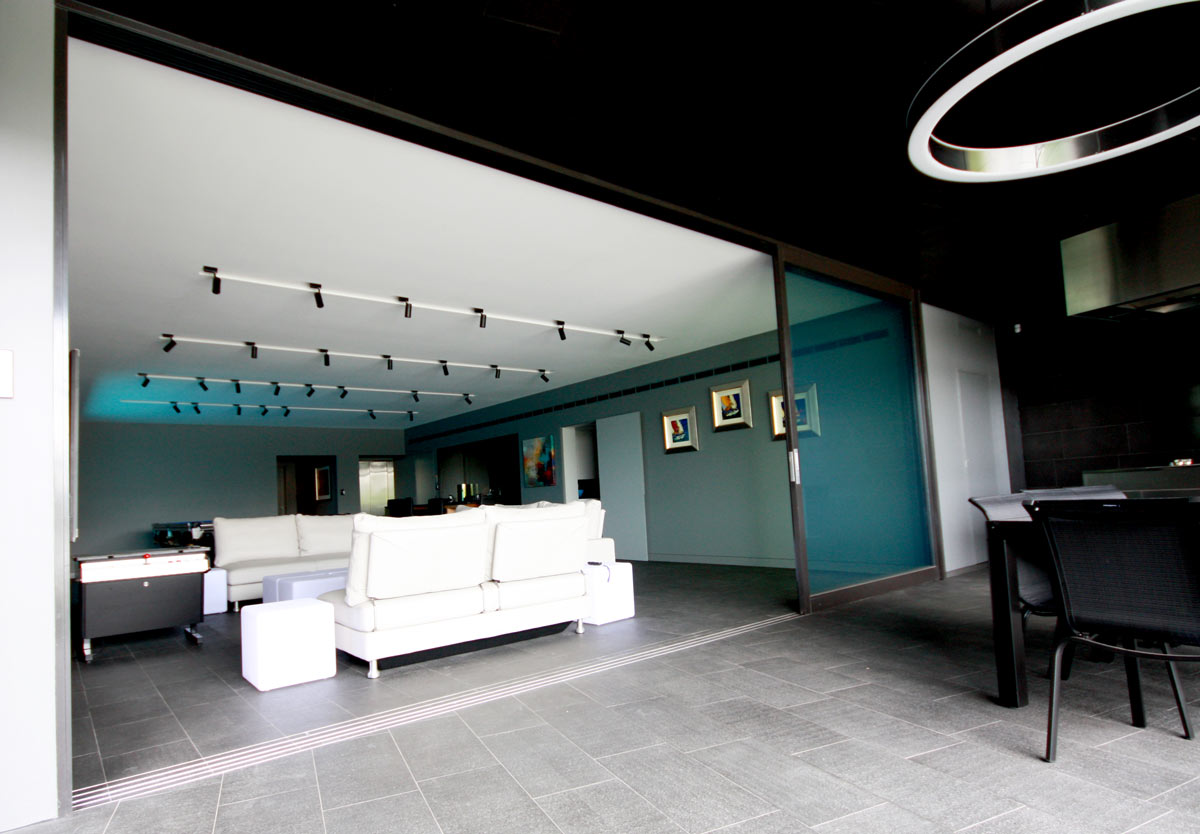

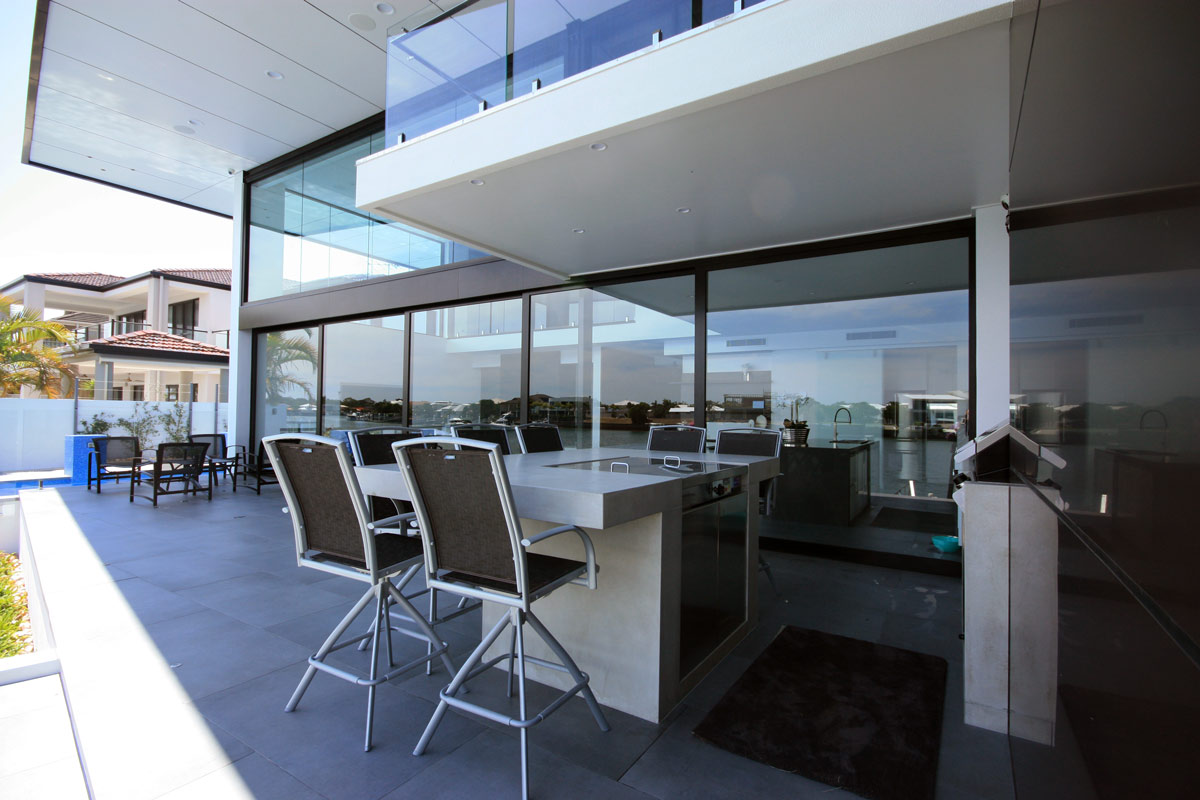

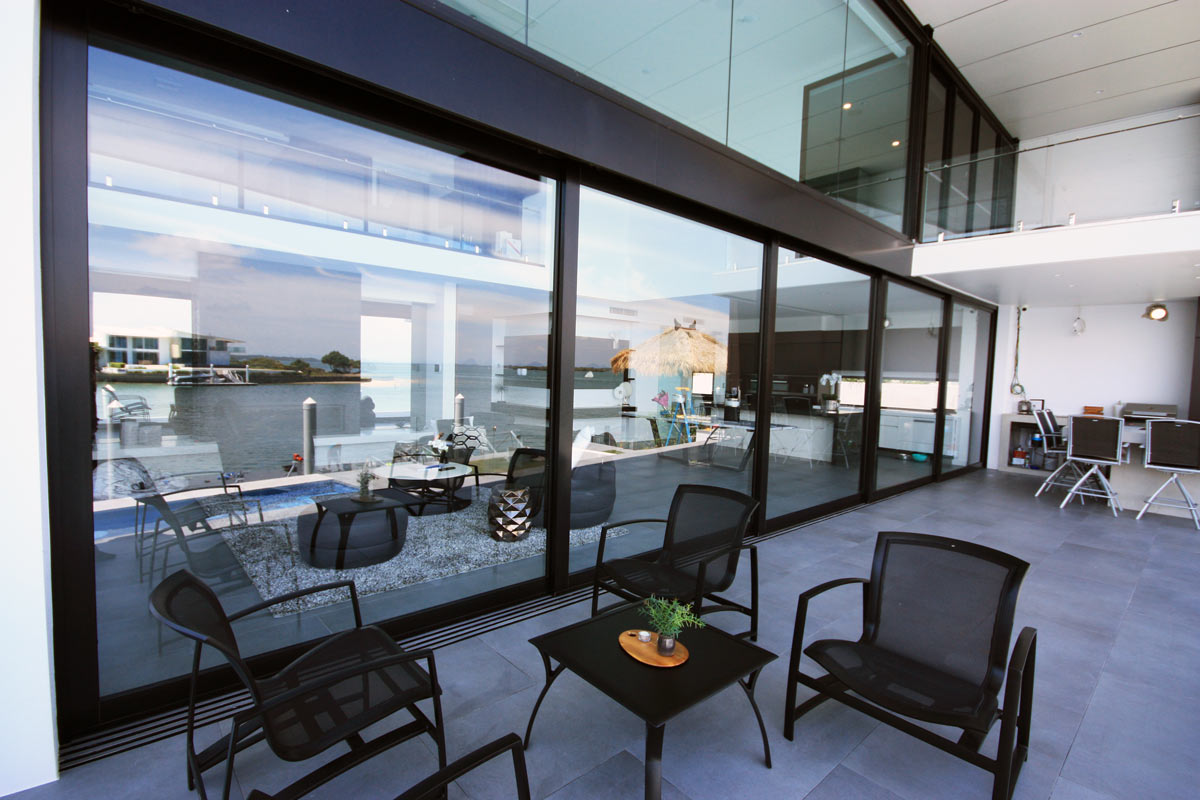

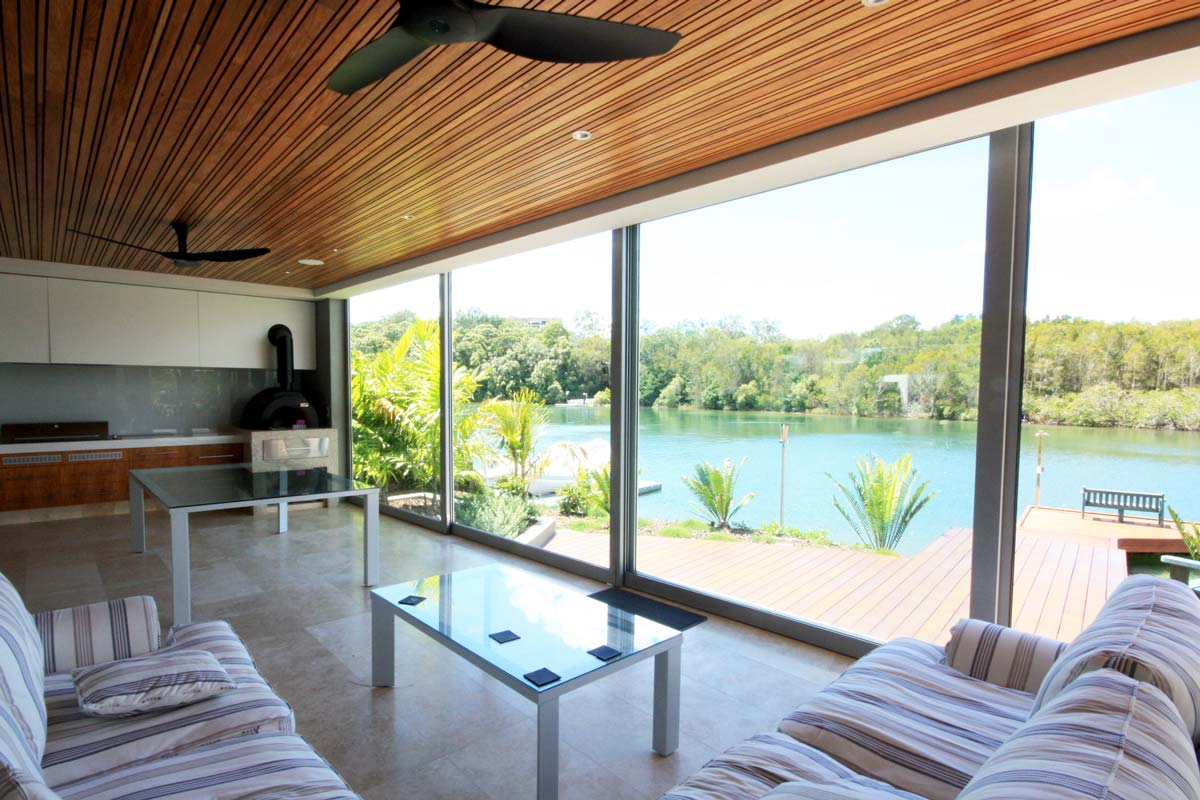

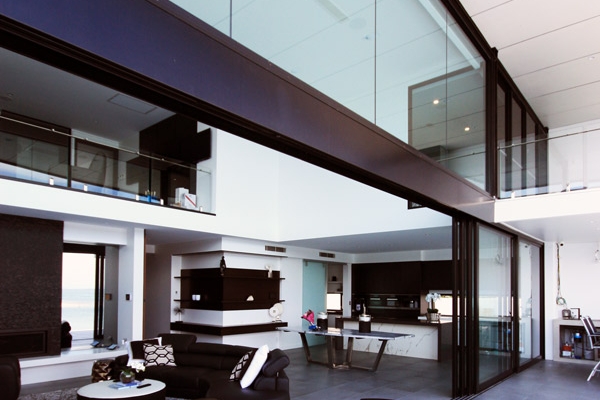

PHOTO GALLERY

Login required to access technical downloads
