Apartment Sliding Door

Our Apartment Sliding Doors provide benefits such as panoramic views, as well as creating a welcoming gateway for nature to bring in generous breeze and sunshine. Capable of handling even the fiercest of weather, ensures you are protected whilst giving you a sense of warmth and security. Complemented with strength and durability, innovative designing, as well as additives of high quality seals and ball bearing rollers, guarantees provision of an exceptional Apartment Sliding Door System.

Designed to comply with Australian Standards AS1170, AS1288, AS2047 and AS4055
Provisional Patent Number 2014902907 pending

OPTIONS

Versatile configuration options for highlights and sidelights
Options of two, three, and four standard panel configurations
Multi-stacking options up to eight panels
Single direction or bi-parting openings
Diverse rail alternatives
90 degree post-less corner
High and low profile sills catering for geographical and architectural specifications
Patented integrated framing

FEATURES & BENEFITS

Panoramic views
Generous access of light and breeze
Stile Depth of 26mm durable to high wind load areas
Innovative Ezi-Slide ball bearing rollers for smooth functionality
High performance seals insulating climate and blocking noise
Compatible with a range of insect and security screening alternatives
NATA tested and accredited


SPECIFICATIONS

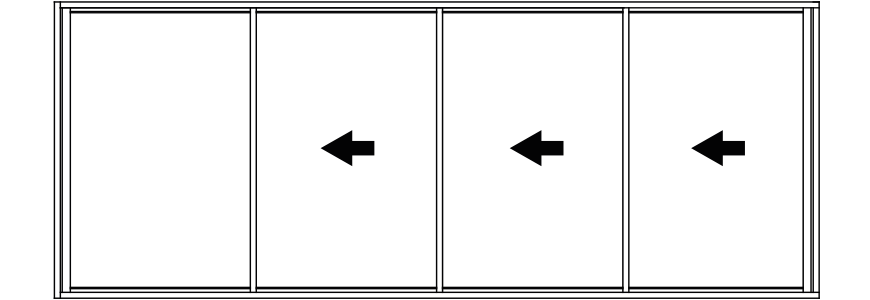

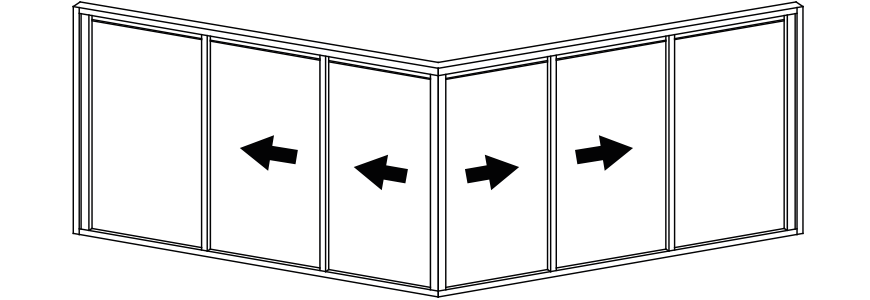

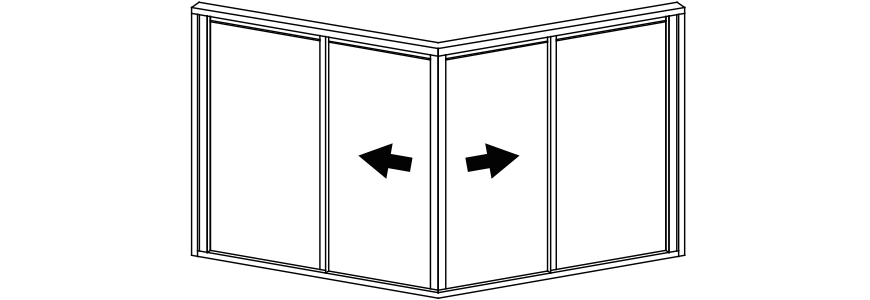

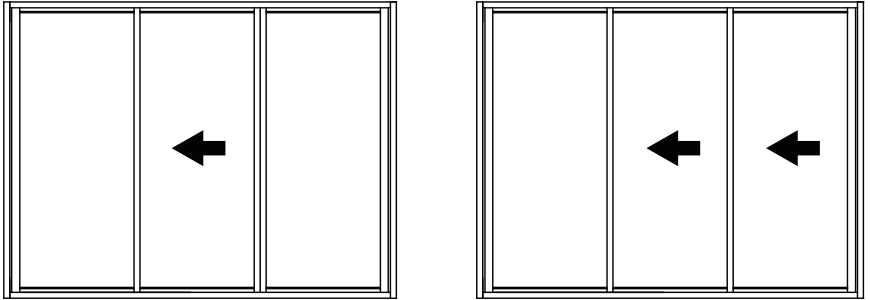

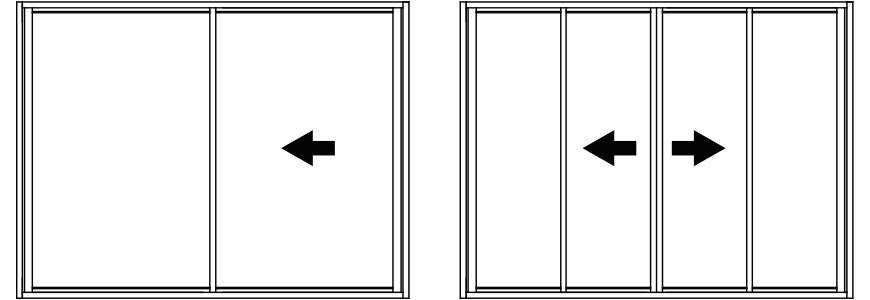

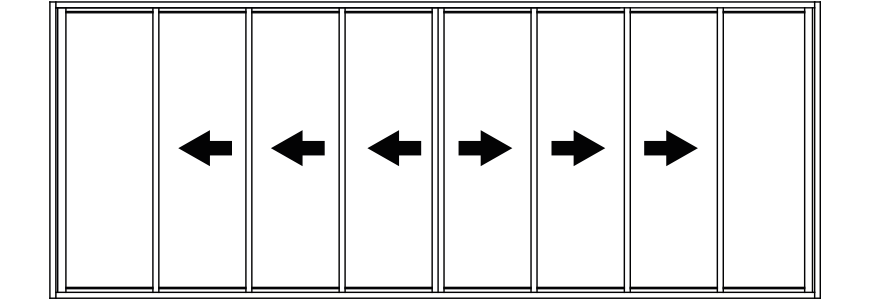

CONFIGURATION EXAMPLES (viewed from outside)

Frame Size
65mm, 101.6mm, 150mm

Max. Opening Size
2700mm high x 11600mm wide

Maximum Panel Size
2650mm high x 1500mm wide

Maximum Panel Weight
180kgs

Maximum No. of Panels
Up to 4 left + 4 right (8 in total)

Glazing Range
5mm - 10.38mm (12.5mm pocket)
10.38mm - 15mm (18.5mm pocket)

Arrow
Arrow
Depicted above are a selection of configuration examples. Thanks to our modular design, there are many other possible configurations available.

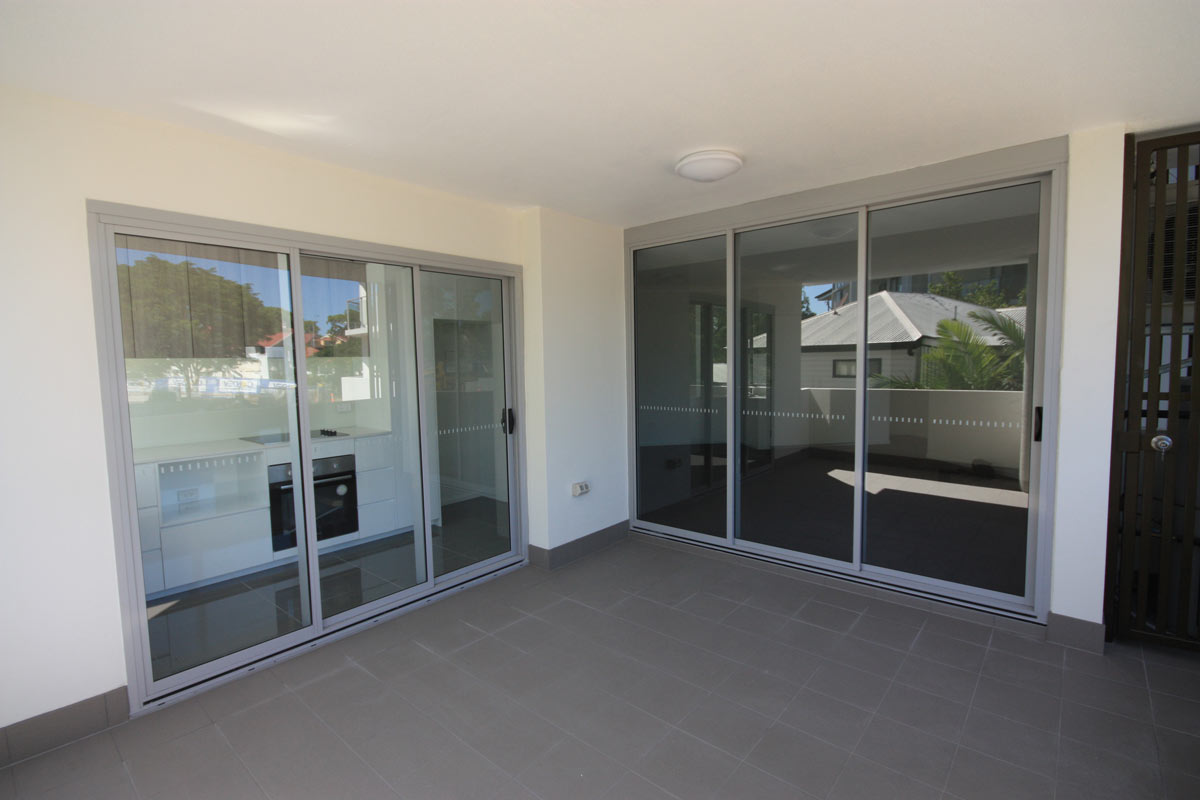

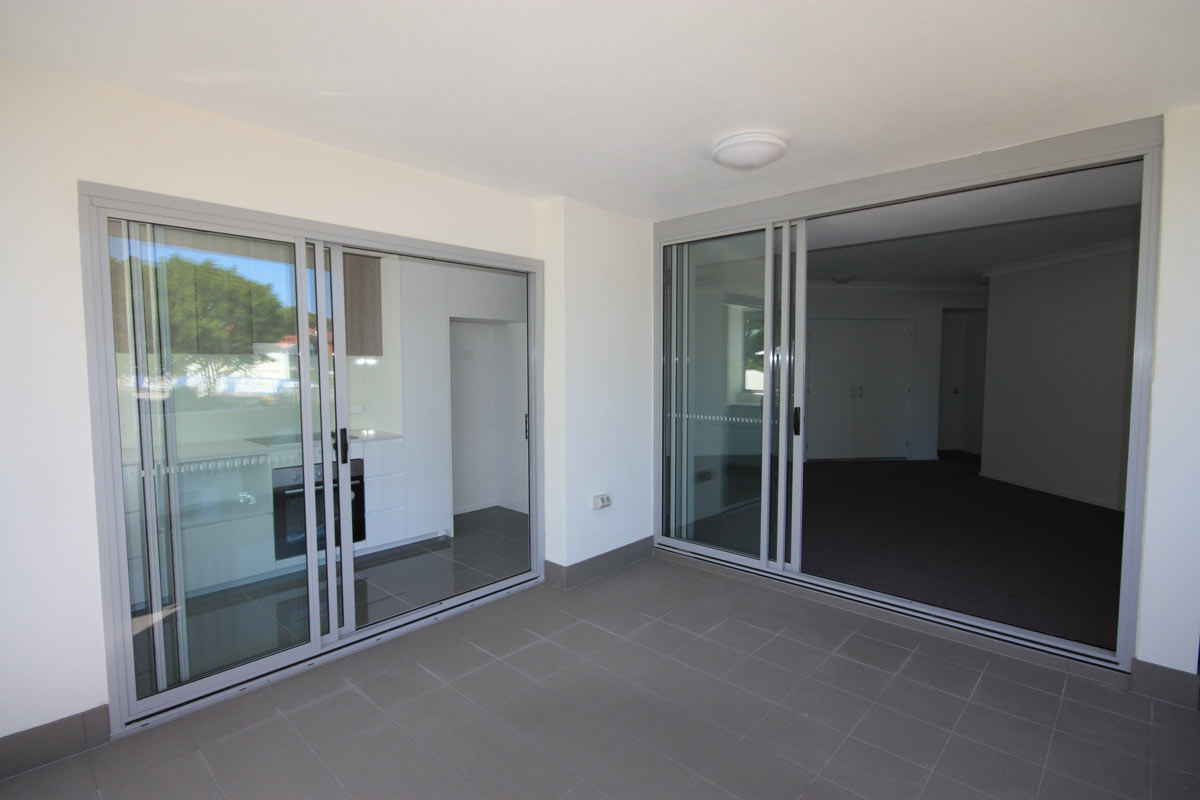

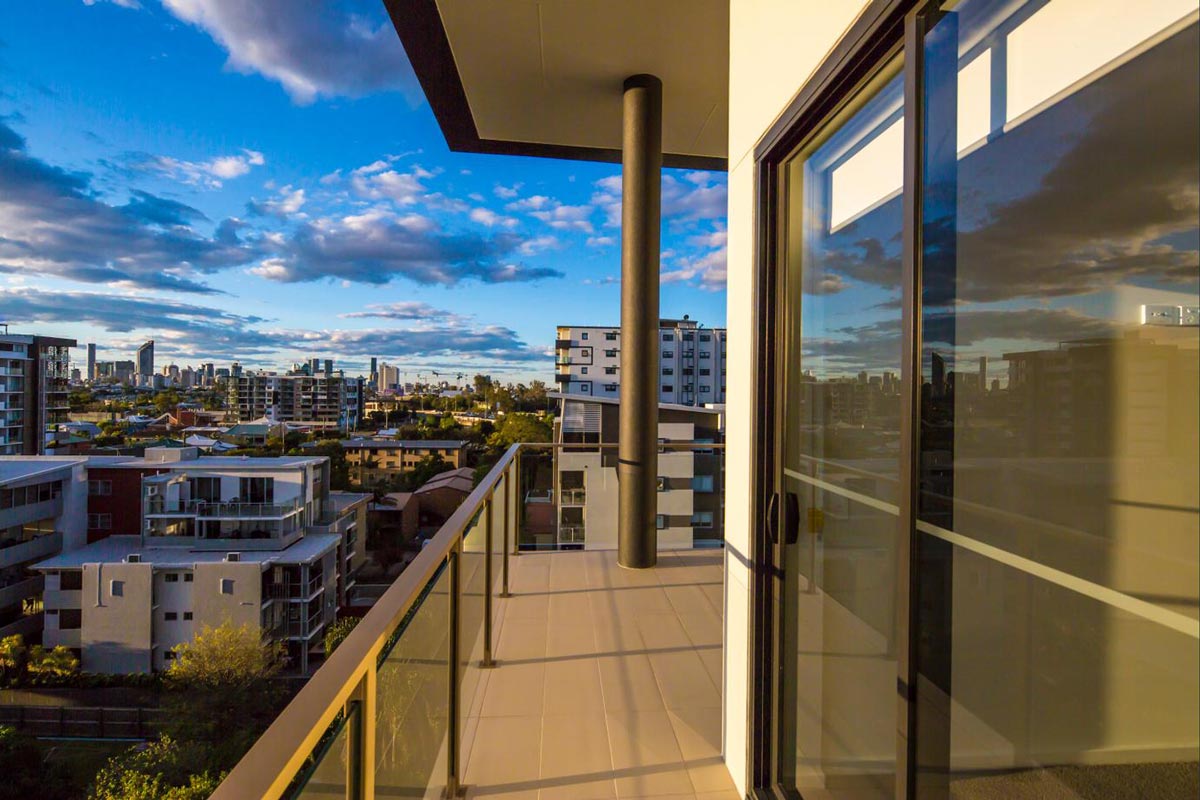

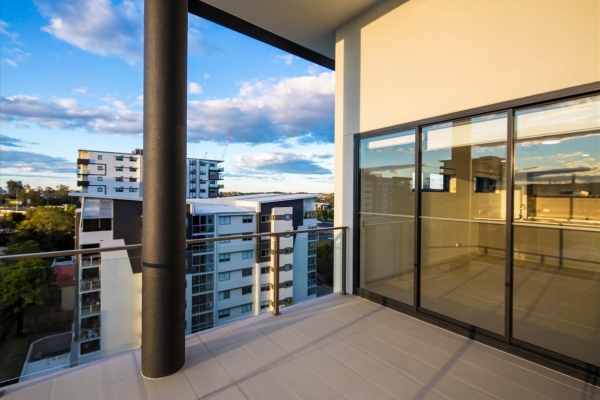

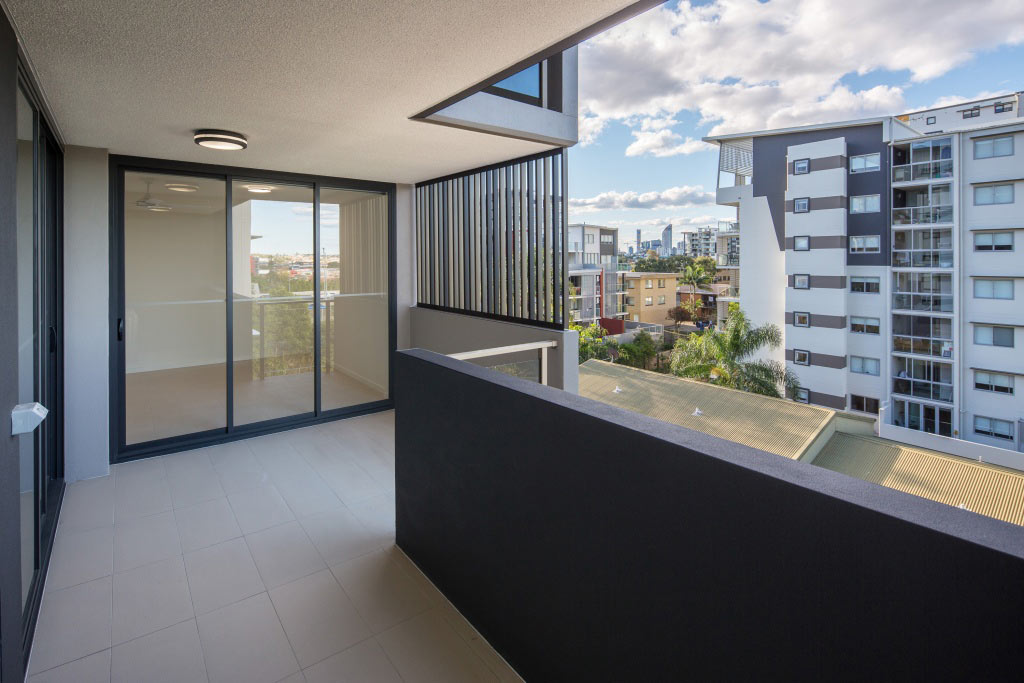

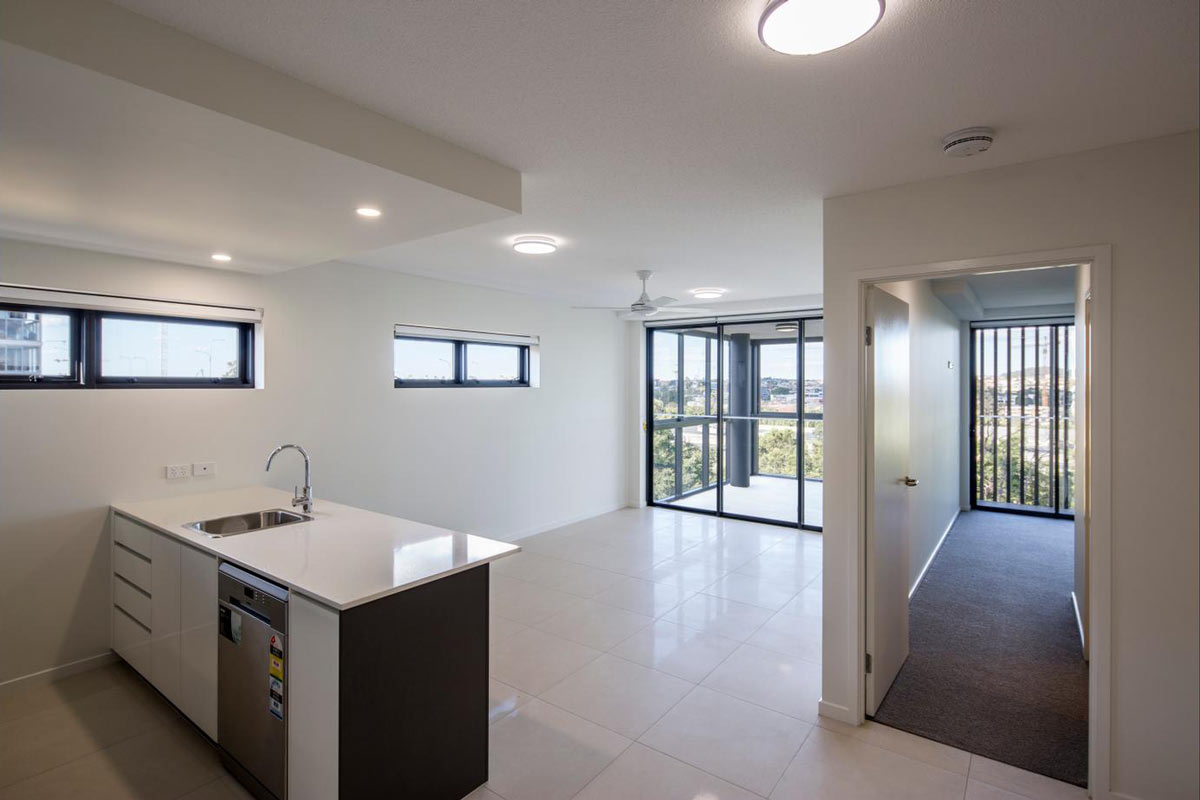

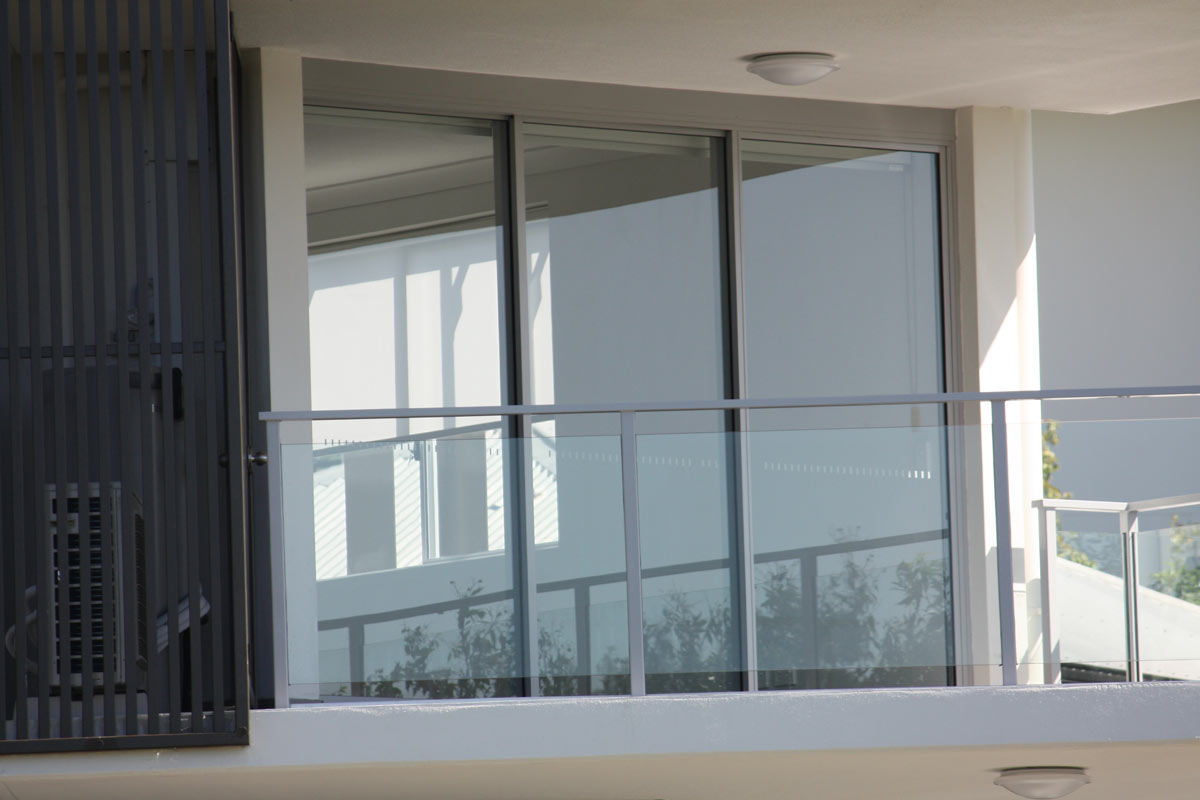

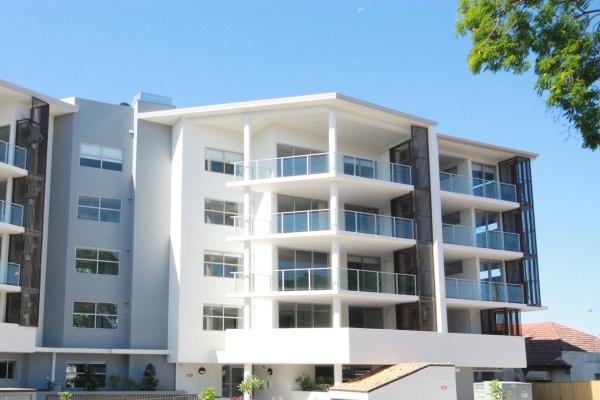

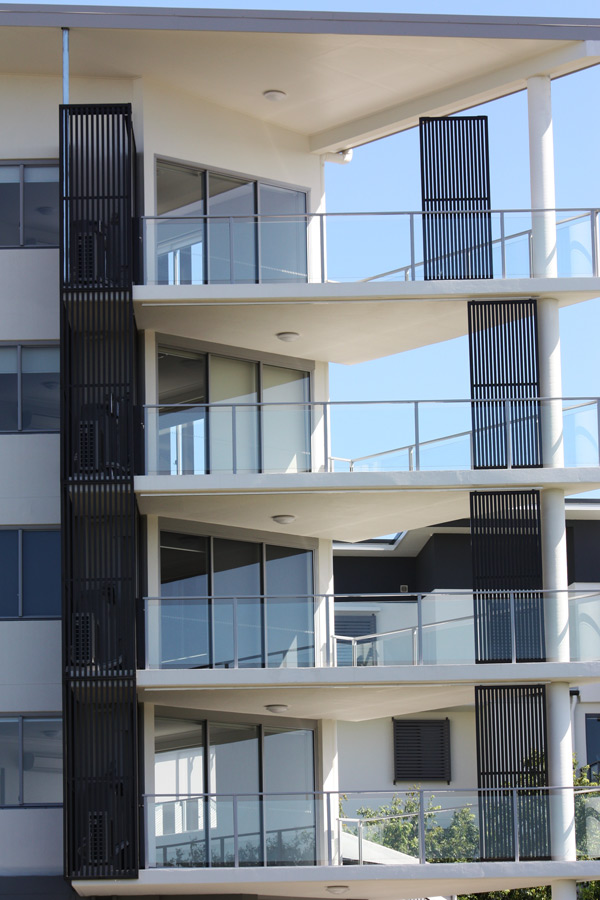

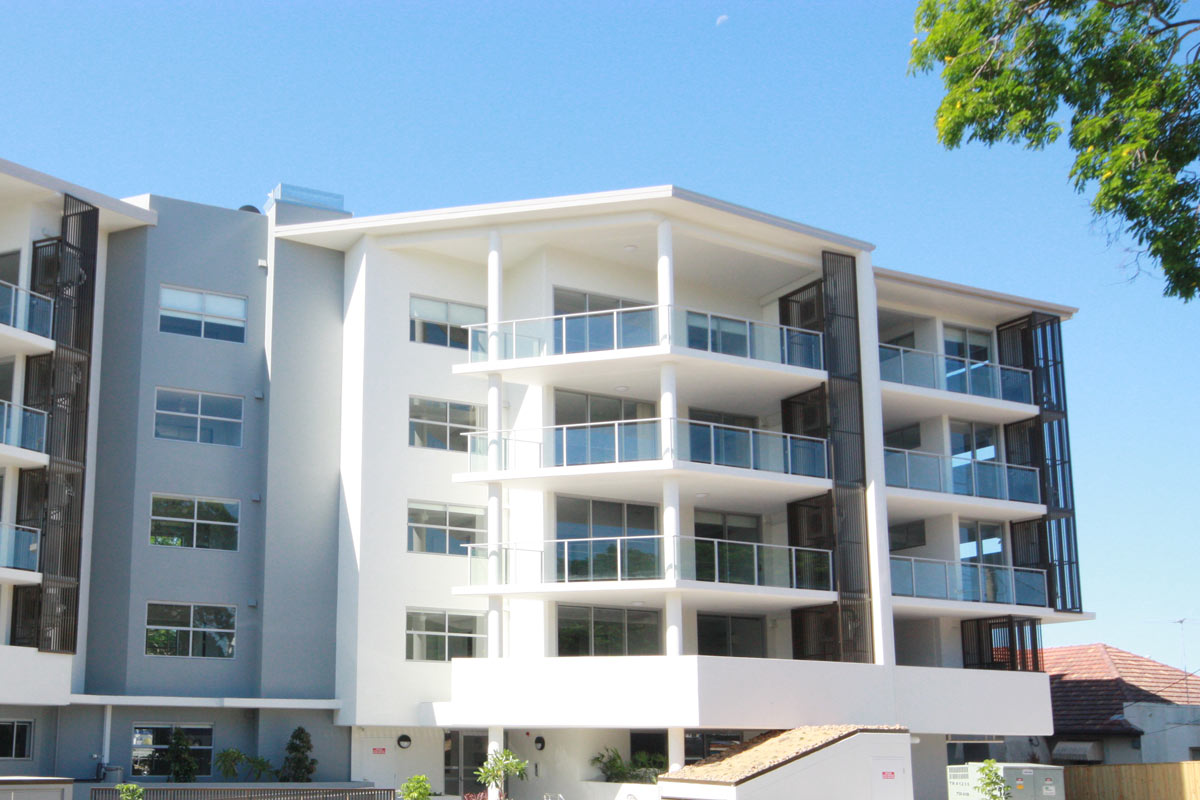

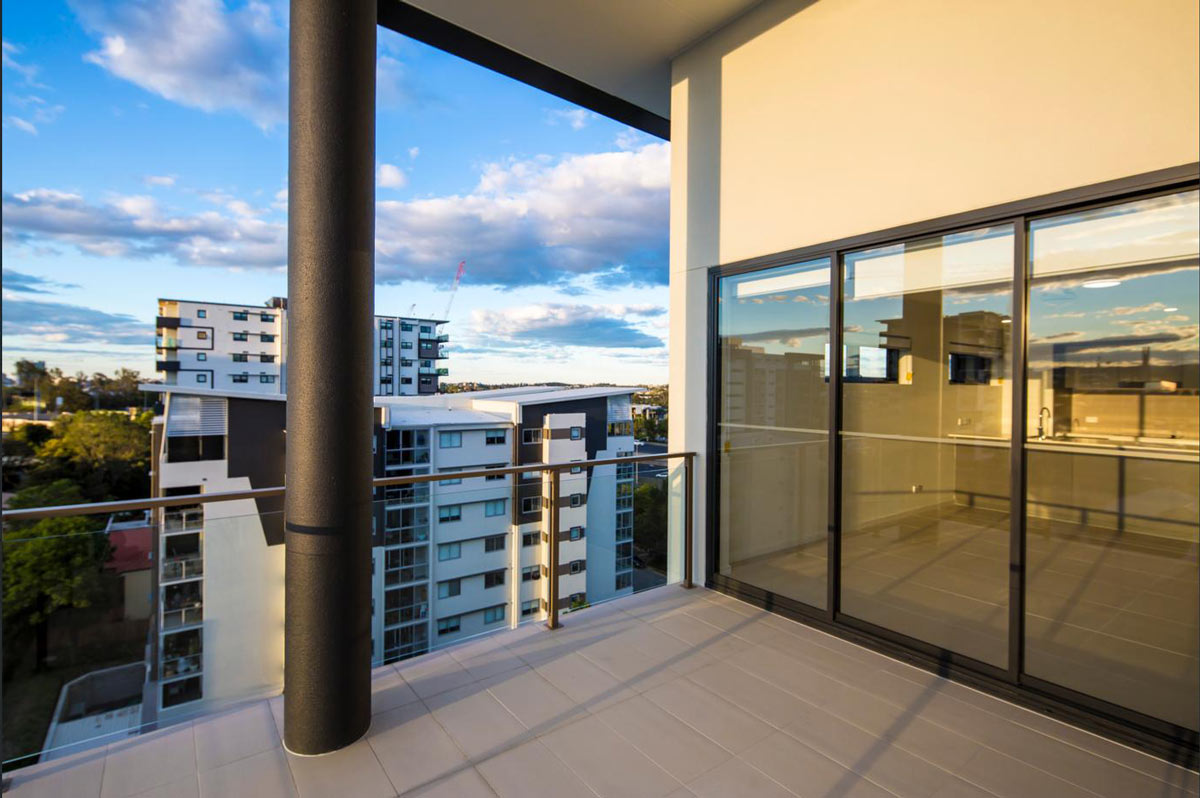

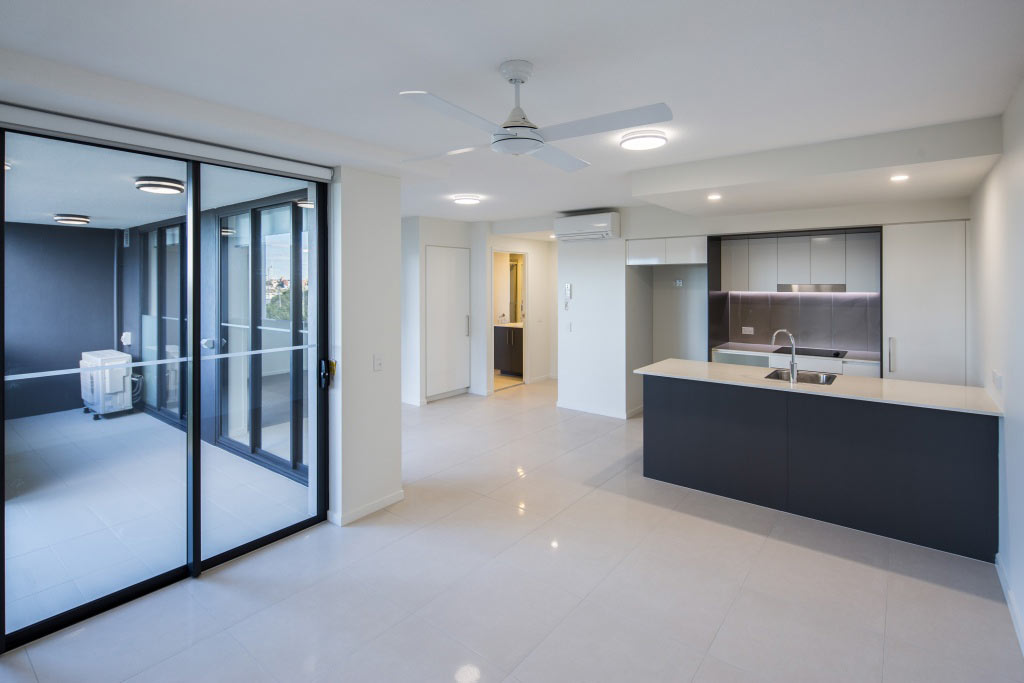

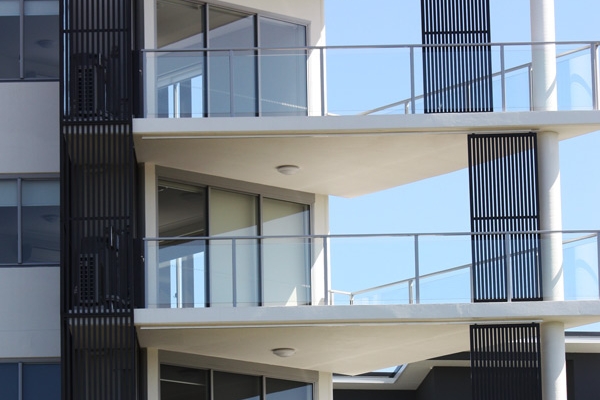

PHOTO GALLERY
