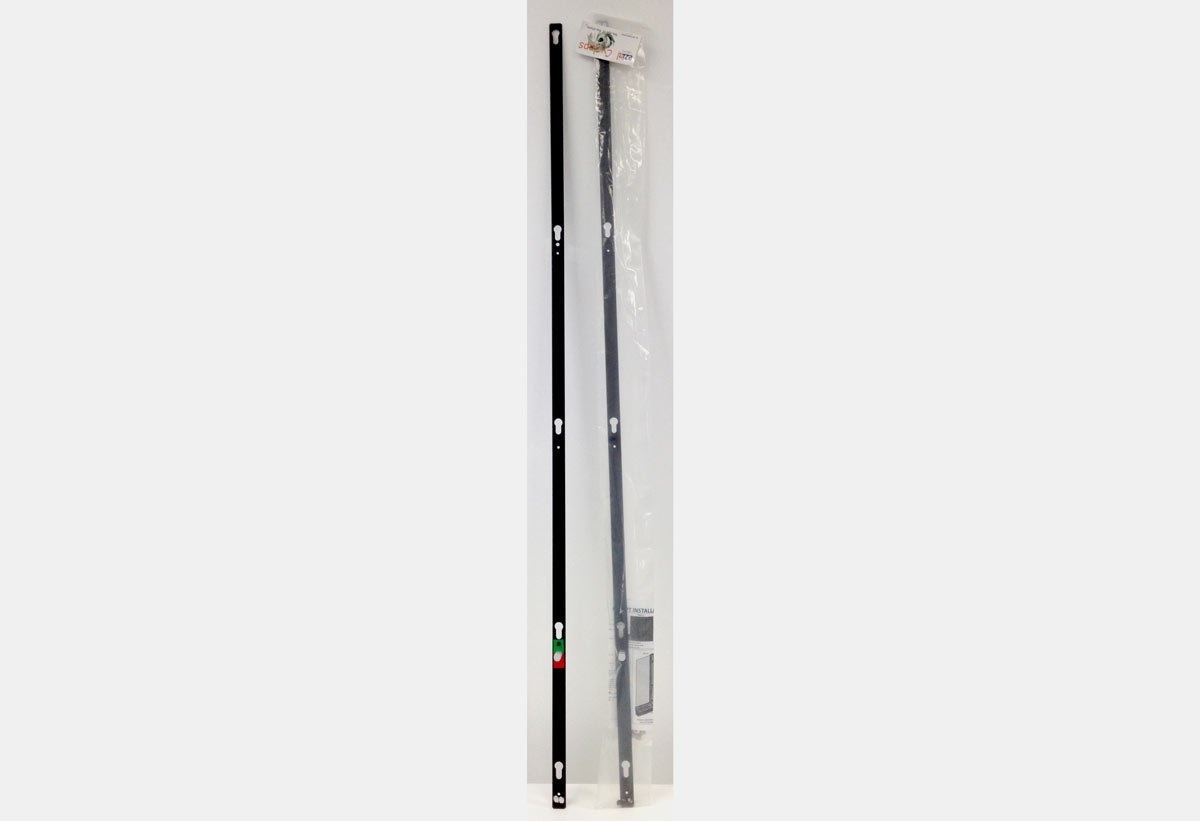

Cyclops Awning / Casement Multi-Point Locking System
Cyclops Awning / Casement Multi-Point Locking System View
Double Hung
Double Hung View
Operable Louvre
Operable Louvre View

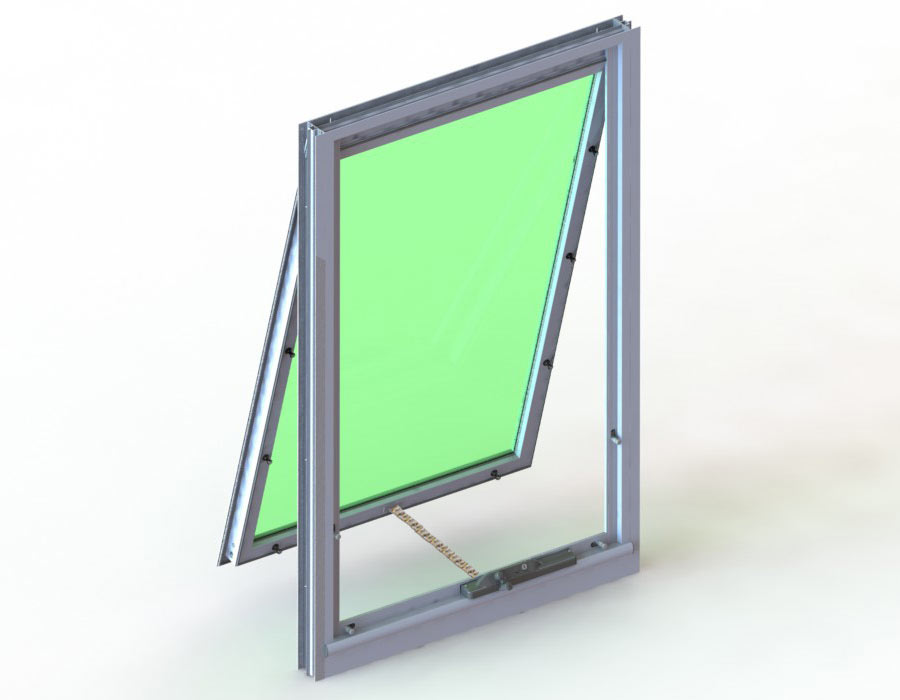

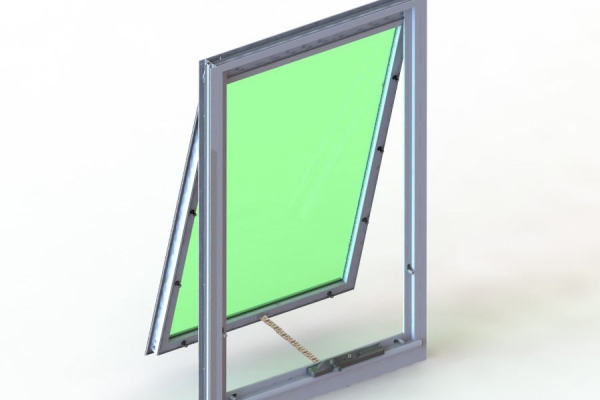

Awning / Casement Window Multi-Point Locking System

In a world where the climate is unpredictable from season to season, Cyclops remedies the effects of high wind, cyclonic conditions. The concealed multi-point operable fixings takes a basic fuctioning Awning/Casement window and converts it into a fixed secured glass panel, ensuring safety when the need arises during Australia's harshest conditions. Cyclops can be retrofitted to most standard Awning/Casements in the market today even if in existing fixtures. Tested to an outstanding 360 km/hr winds and 800pa water penetration.

Designed to Comply with Australian Standards AS1170, AS1288, AS2047 and AS4055
Design Registration Number: 335253, Patent #2014200354

OPTIONS

Single, double or high impact glazed sash options
Snap-in adaptor sections for modular configurations
Key lockable chainwinders
Ezi Fit security or flyscreen provision

FEATURES & BENEFITS

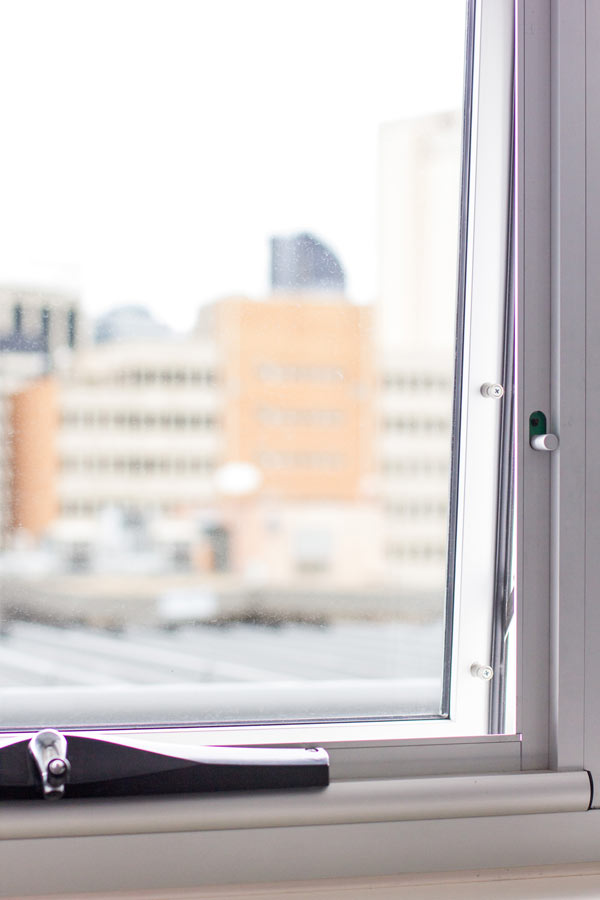

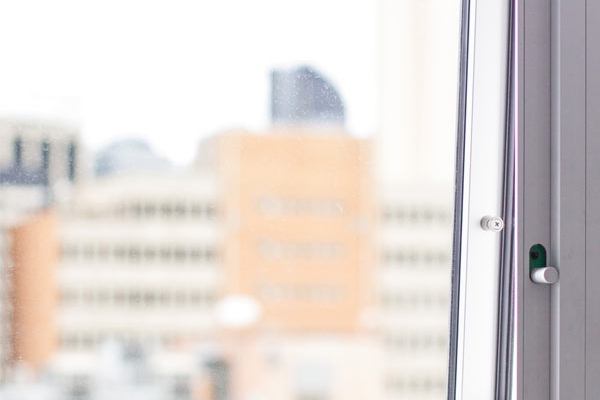

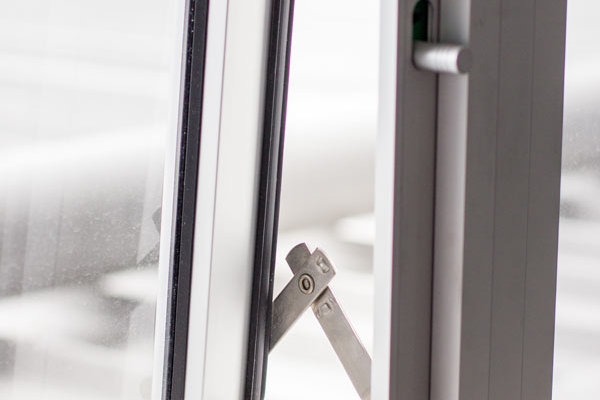

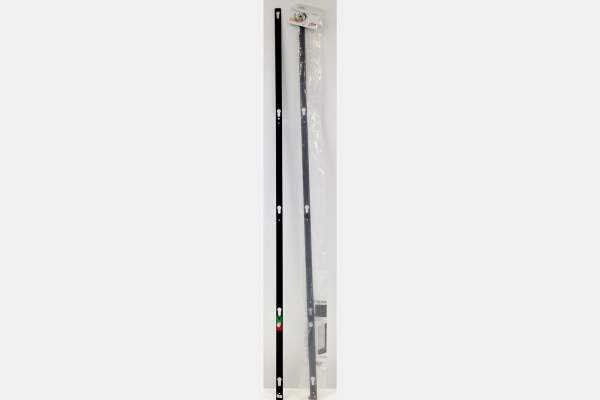

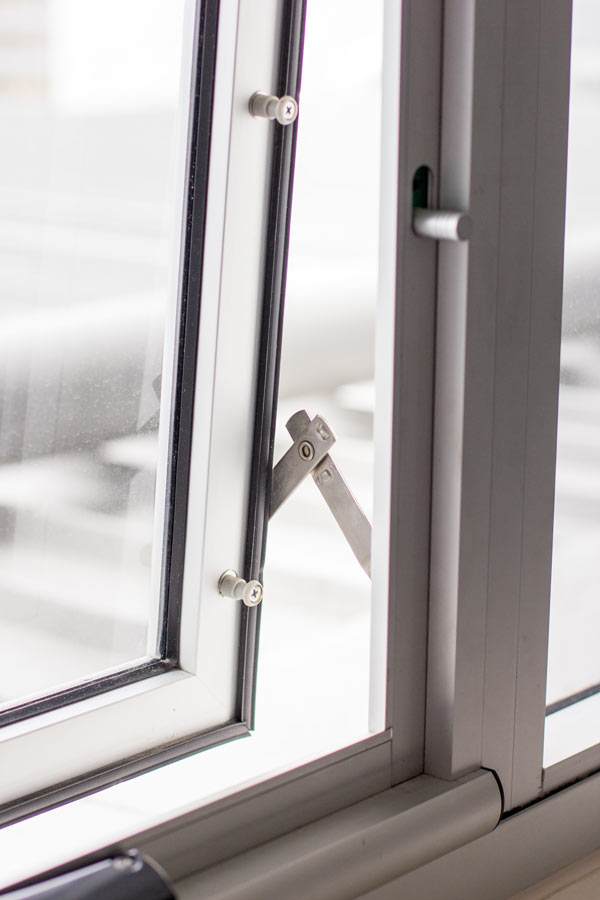

Concealed fixings utilising one handle to operate several locking points
Retrofits to existing awnings
Smooth lining and edging
Fitted with state of the art Santoprene seal technology
Continuous top hinge to secure sash and extreme weatherabilty
Enhanced air ventilation


SPECIFICATIONS



CONFIGURATION EXAMPLES (viewed from outside)

Frame Sizes
50mm, 65mm, 100mm, 101.6mm, 150mm

Maximum Sash Height
1800mm

Maximum Sash Width
1800mm

Maximum Sash Weight
50kgs

Maximum No. of Sashes
Unlimited

Glazing Range
4mm - 8.38mm (12.5mm Pocket)
10.38mm - 15mm (18.5mm Pocket)
15mm - 32mm (35.2mm Pocket)

Arrow
Arrow
Depicted above are a selection of configuration examples. Thanks to our modular design, there are many other possible configurations available.

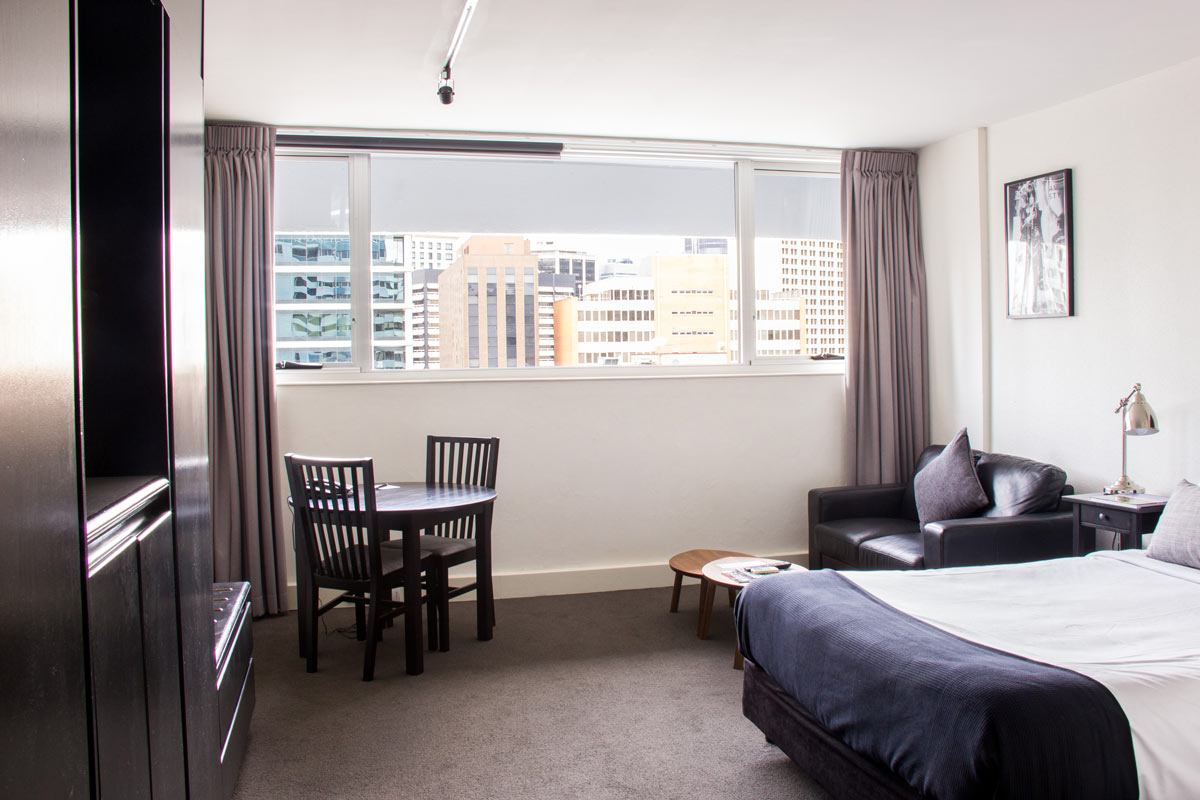

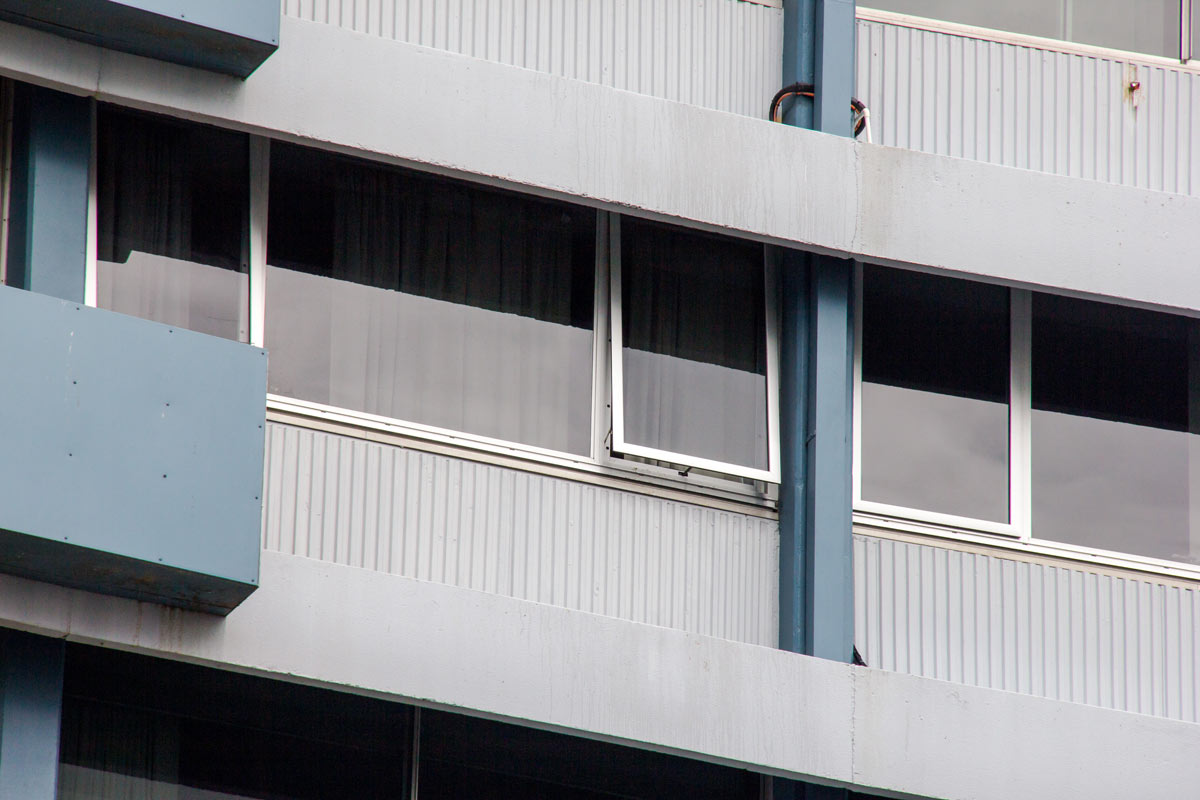

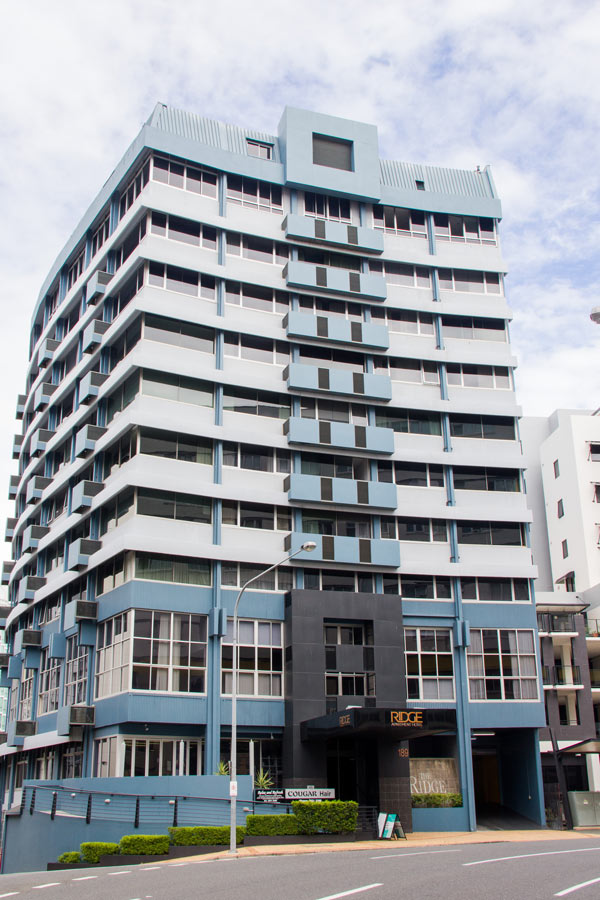

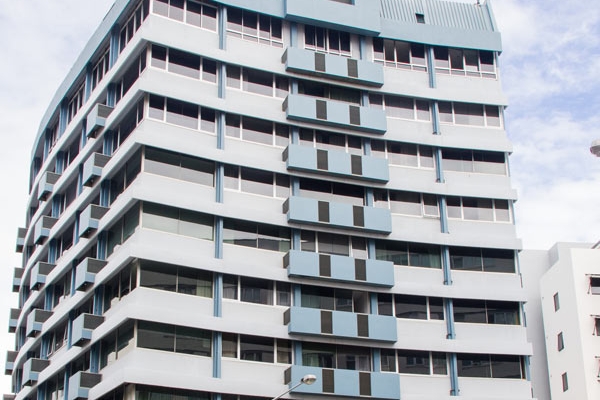

PHOTO GALLERY
