Front Double Glaze

Our Front Double Glaze System from our Commerce range provides a flush glass fa├žade finish that creates a divine mirrored appearance. The Front Double Glazed Window is an ideal energy efficient choice with additional benefits such as minimising noise, and enhanced durability. The sealed air gap between the two panes acts as an added layer of insulation. This added thermal resistance reduces heat transmission keeping you cool in summer and warm in winter. Our Front Glaze System delivers profound enhancements such as pre-slotted self-draining transoms and sills, as well as concealed drainage pockets for optimal weather protection.

Designed to Comply with Australian Standards AS1170, AS1288, AS2047 and AS4055

OPTIONS

Subframing for exposed areas
Combinational adaptability with various systems across our entire Ezial range
Incorporated as highlights, lowlights, and sidelights
Mullion splicing for enhanced strength and durability
Options of internal or external glazing

FEATURES & BENEFITS

Reduced labour costs with the use of a captive wedge
Simple and efficient fabrication with the use of straight cutting
Self-draining sills and transom designs enhancing water management and weatherability
Double glazing fused with Ezi-Seal technology delivers supreme insulation, acoustics, and weatherability


SPECIFICATIONS



CONFIGURATION EXAMPLES (viewed from outside)

Frame Sizes
101.6mm, 150mm

Maximum Frame Size (single)
6000mm high x 3000mm wide

Maximum No. of Frames
Unlimited

Glazing Range
13mm - 28mm

Arrow
Arrow
Depicted above are a selection of configuration examples. Thanks to our modular design, there are many other possible configurations available.

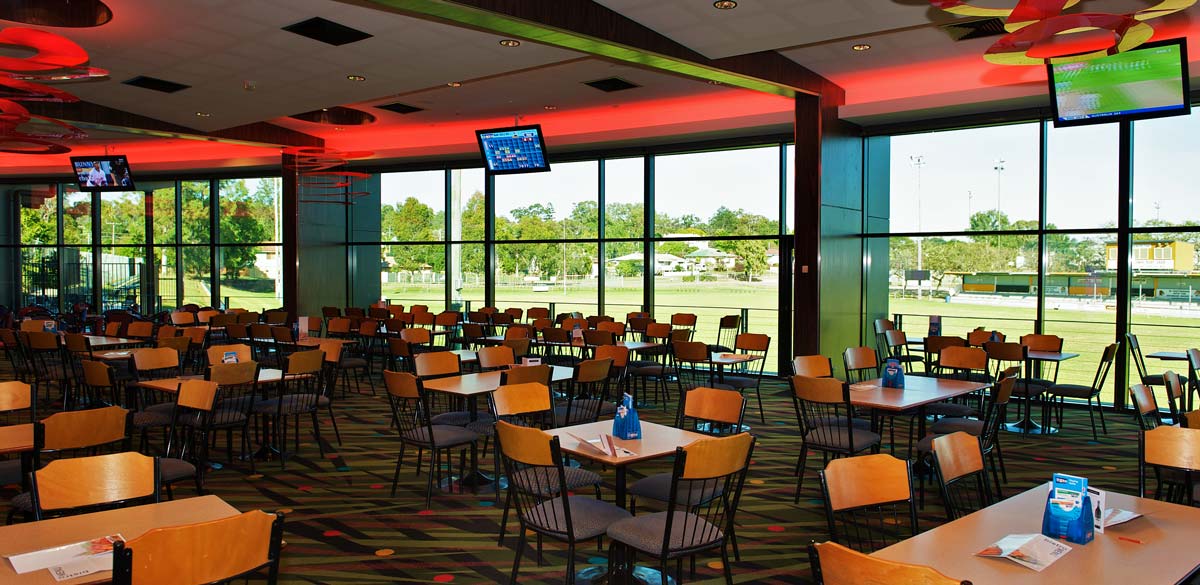

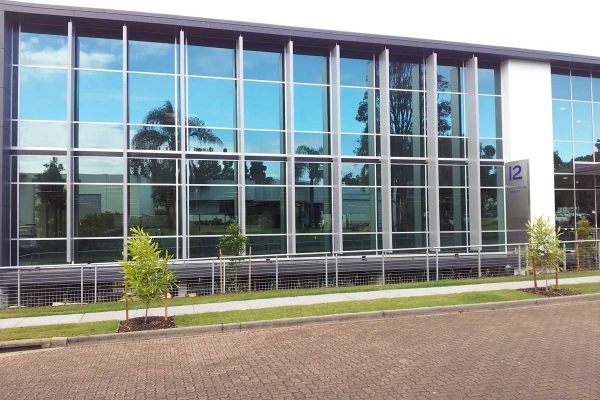

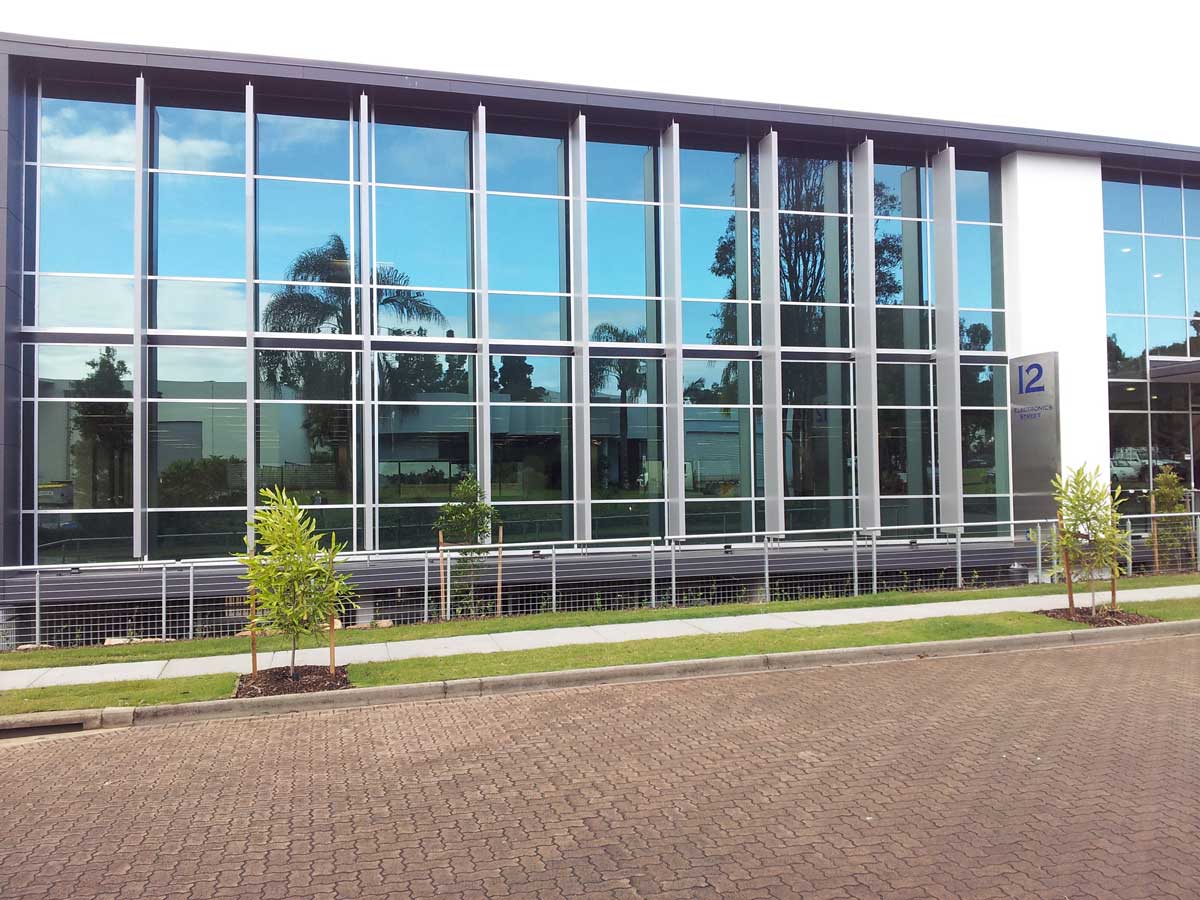

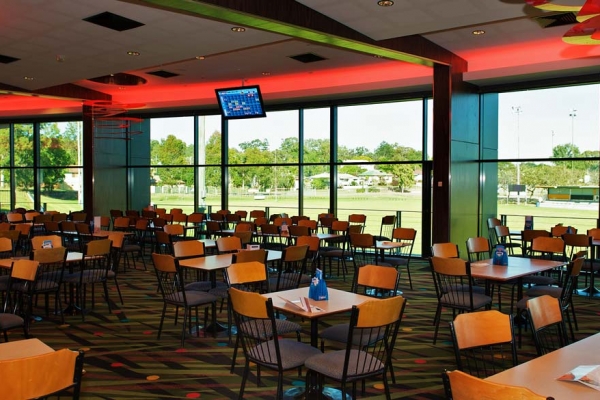

PHOTO GALLERY
