Apartment Sliding Window

The Apartment Sliding Window was developed through the collaboration of performance and reliability, as well as offering practicality and simplicity for efficient installation. Tested to comply with Australian standards to withstand treacherous weather conditions, will put your mind at ease knowing you have a safe and durable system. Designed with soft curved mullions, quality ball bearing rollers and seals, provides an all-round high performing system.

Designed to Comply with Australian Standards AS1170, AS1288, AS2047 and AS4055

OPTIONS

Options of two, three, and four standard panel configurations
Multi-stacking options up to eight panels
Versatile combination of fixed and sliding panels including high and lowlights
90 degree corner post
Heavy duty components for high wind load areas
Adaptable configuration for simple to complex projects

FEATURES & BENEFITS

NATA tested and accredited
Slide and glide effortless operation
High performance seals for a climate controlled acoustic atmosphere
Stile Depth of 26mm durable to extreme weather conditions
High quality key operable sash locks and screening provisions for optimum security


SPECIFICATIONS

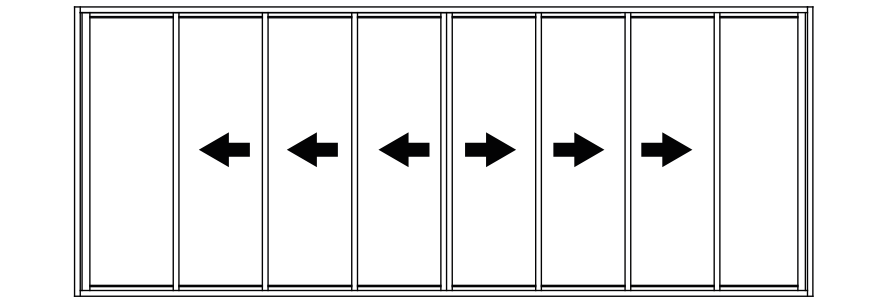

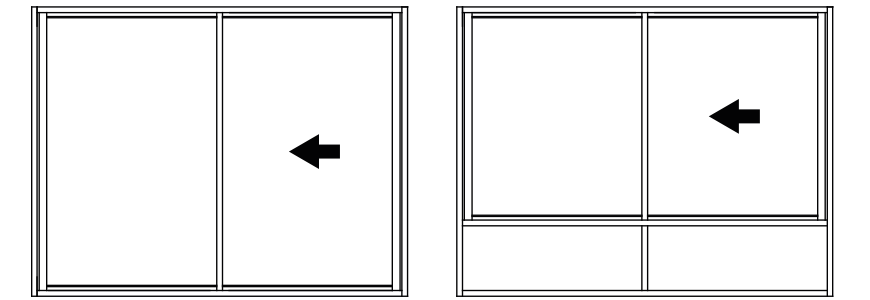

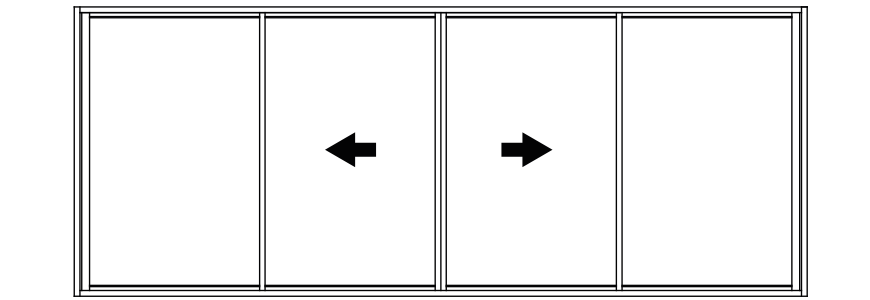

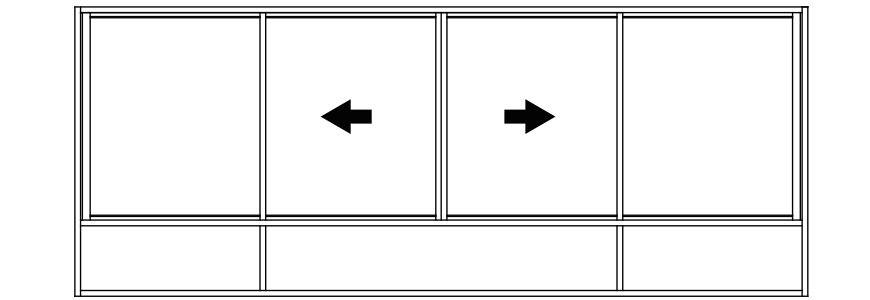

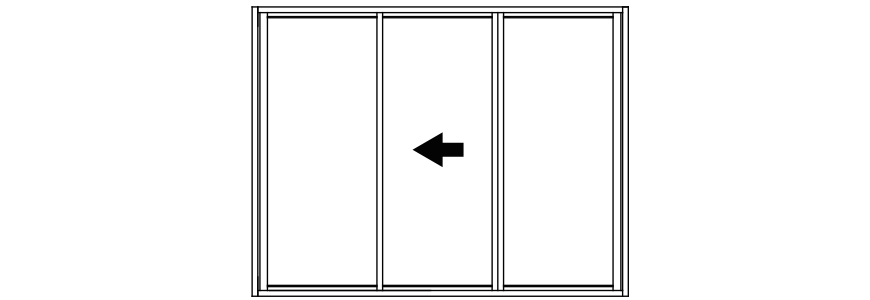

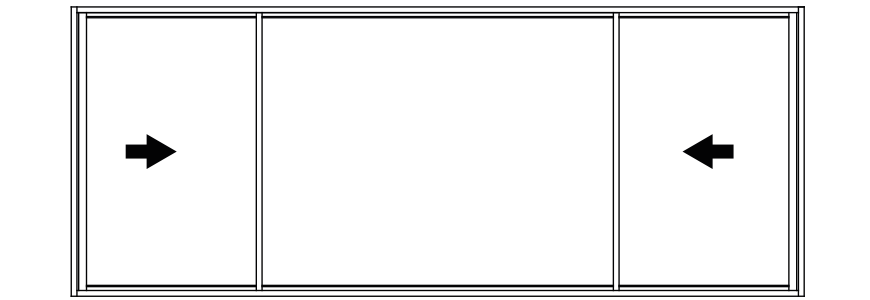

CONFIGURATION EXAMPLES (viewed from outside)

Frame Size
65mm, 101.6mm, 150mm

Max. Opening Size
2700mm high x 11600mm wide

Maximum Panel Size
2650mm high x 1500mm wide

Maximum Panel Weight
180kgs

Maximum No. of Panels
Up to 4 left + 4 right (8 in total)

Glazing Range
5mm - 10.38mm (12.5mm pocket)
10.38mm - 15mm (18.5mm pocket)

Arrow
Arrow
Depicted above are a selection of configuration examples. Thanks to our modular design, there are many other possible configurations available.

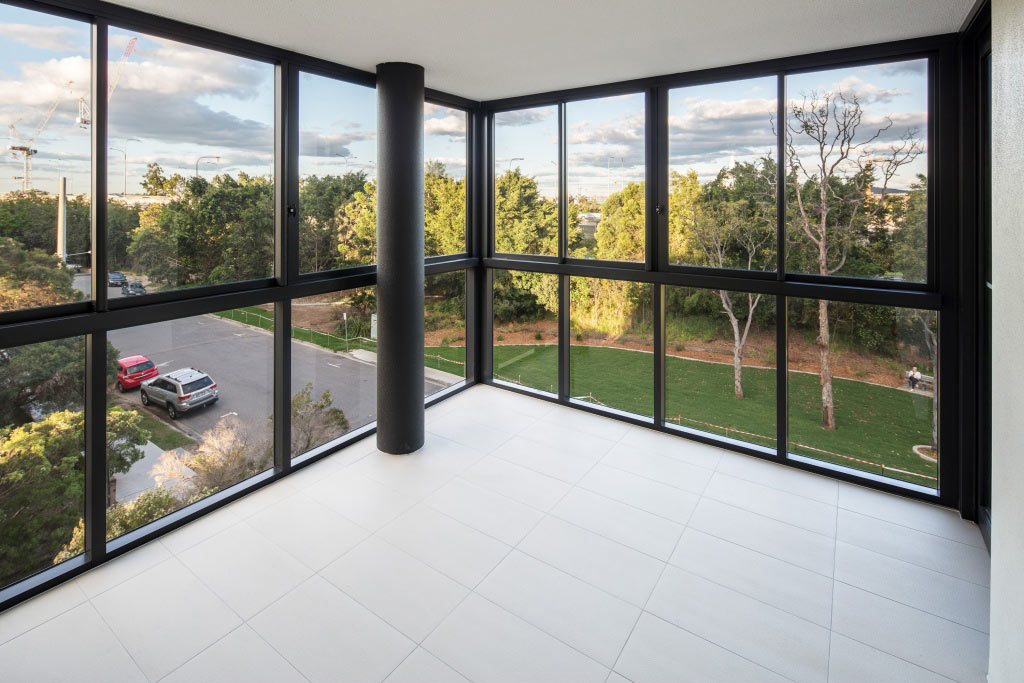

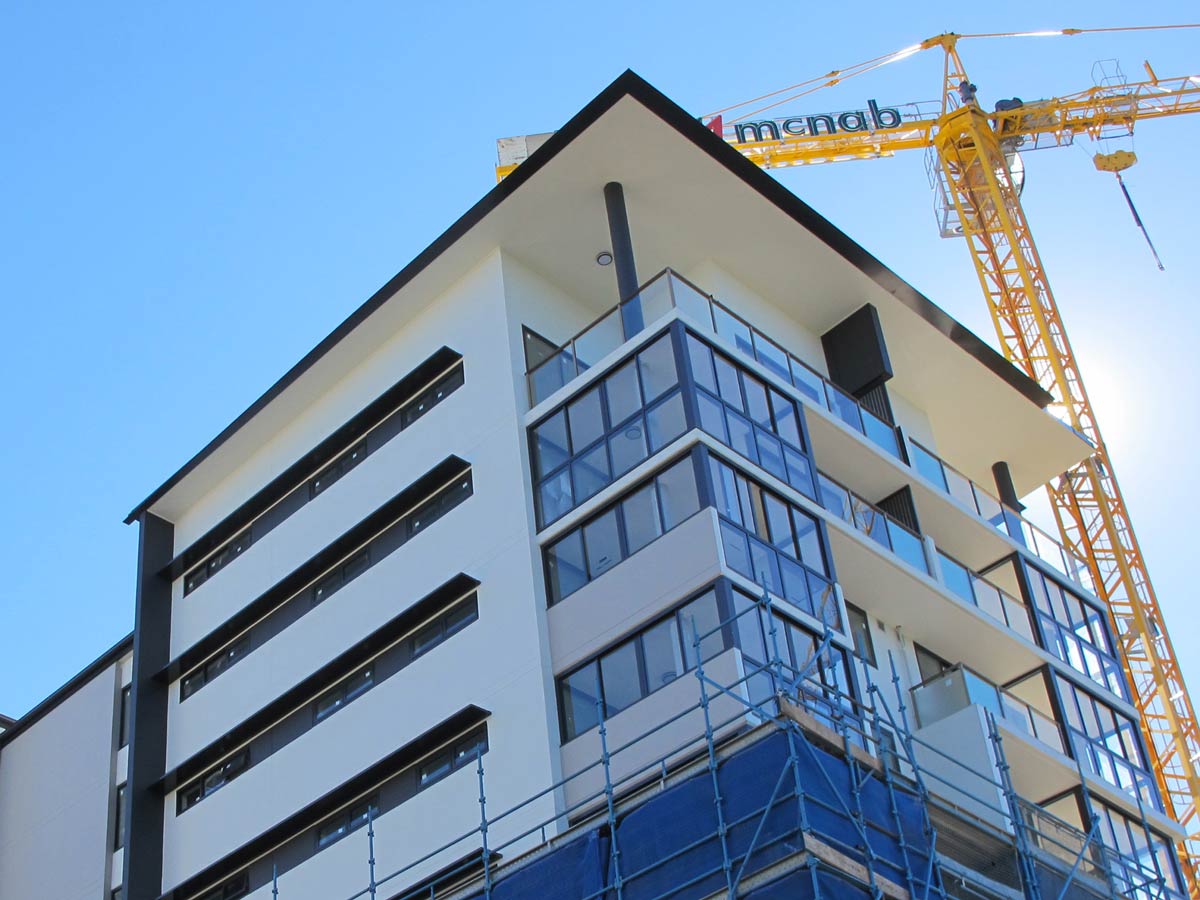

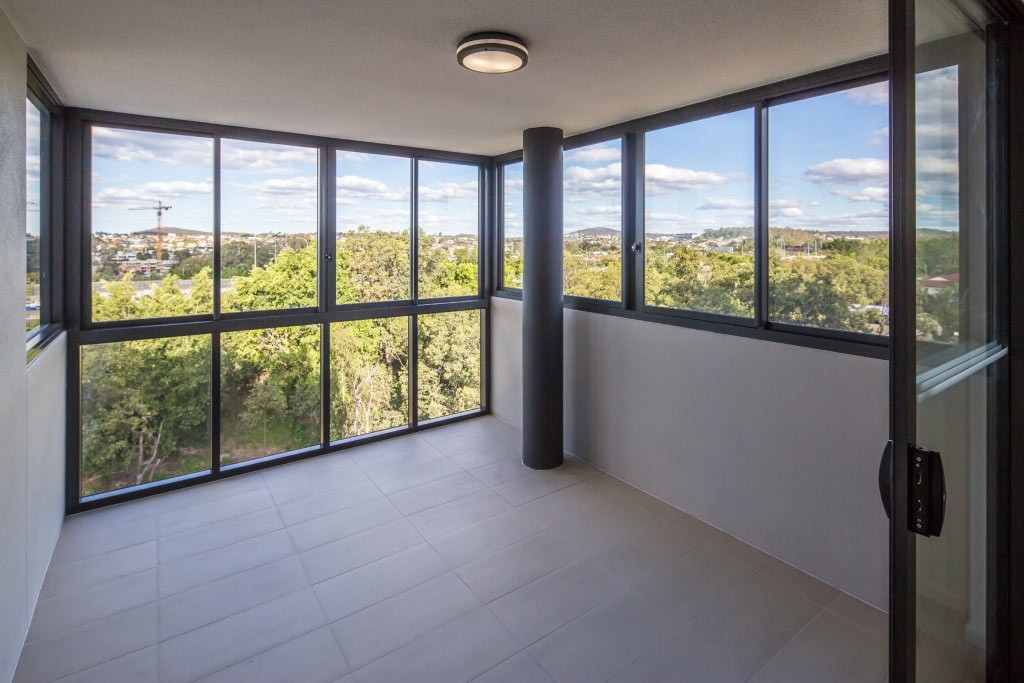

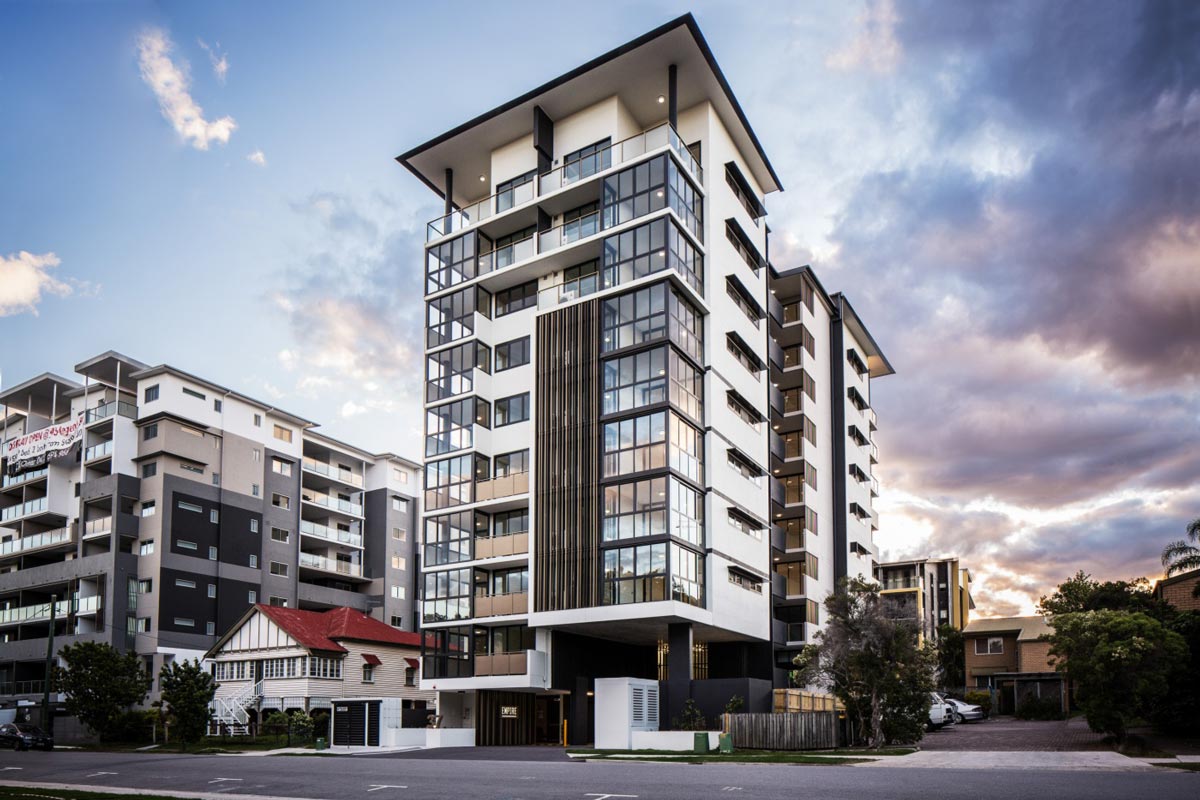

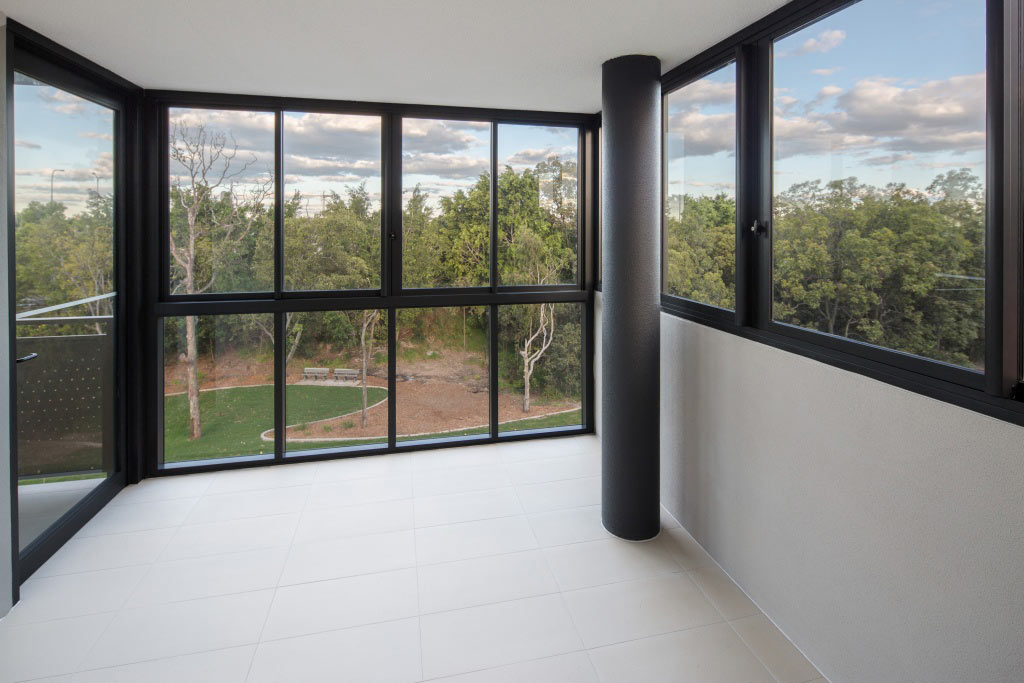

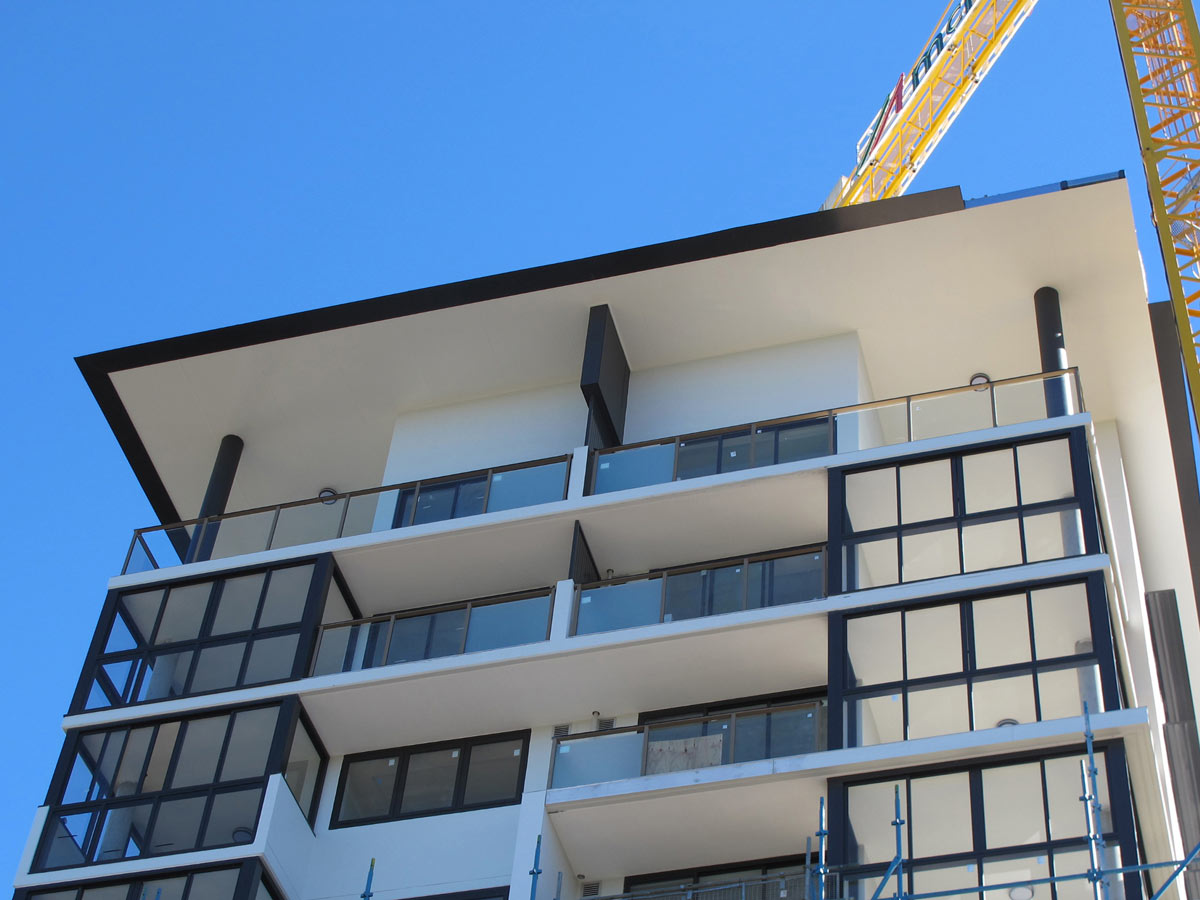

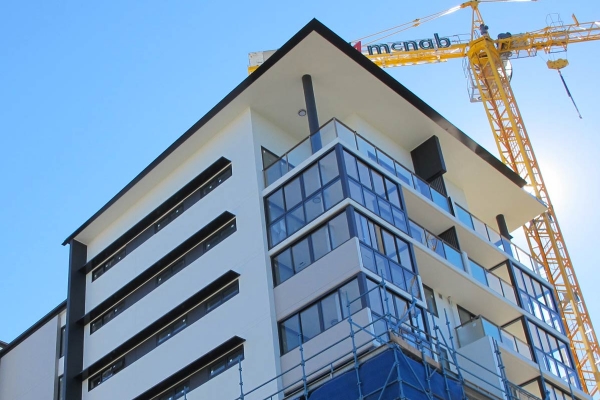

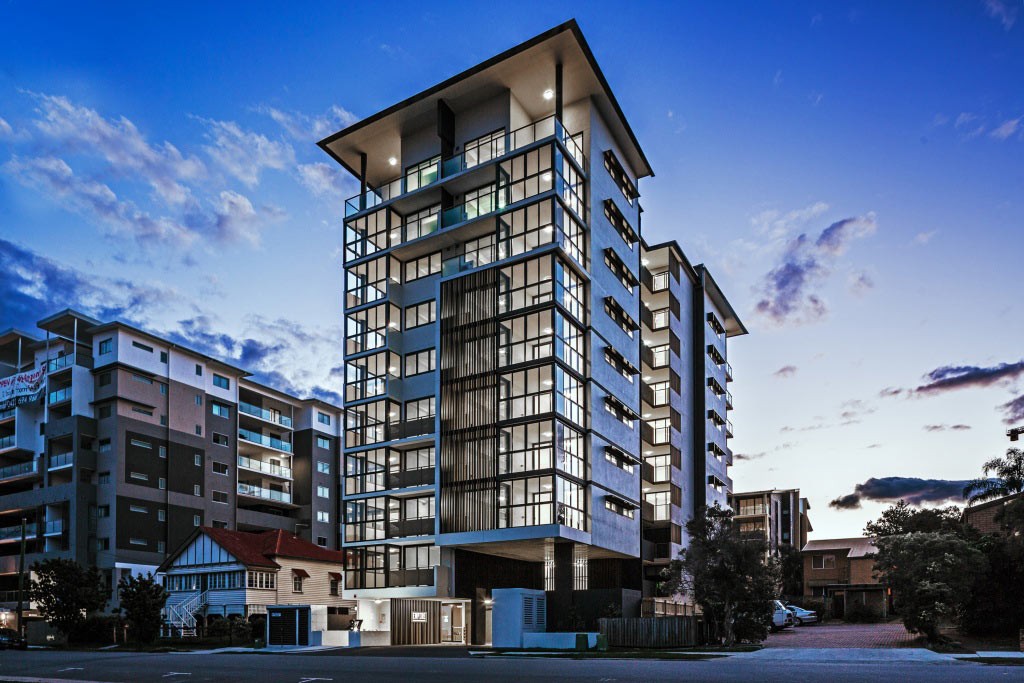

PHOTO GALLERY
