Double Hung

Here at Ezi Aluminium Systems, we have designed our Double Hung windows to be stylish with soft curves suitable for traditional and contemporary architecture. What makes our system unique, is the incorporation of Excalibur Sash Balances which enables the window to operate effortlessly, encouraging efficient functionally. Our Double Hung windows not only work as exceptional ventilators, it also eradicates projection into walkways, creating a hazardless safe environment in comparison to outward and inward projecting windows.

Designed to Comply with Australian Standards AS1170, AS1288, AS2047 and AS4055
Patent Application Number: 2010201588 21st April 2010

OPTIONS

Single unit, double unit or in banks of three or more
Single or double hung
Integrated insect and security screening options

FEATURES & BENEFITS

High quality Excalibur Sash Balances for smooth operation
Enhanced air ventilation
Ezi-Seal technology for calm acoustics and effective insulation
Energy efficient
Aesthetically designed with soft curves and no sharp edges
Key lockable sash for optimum security


SPECIFICATIONS

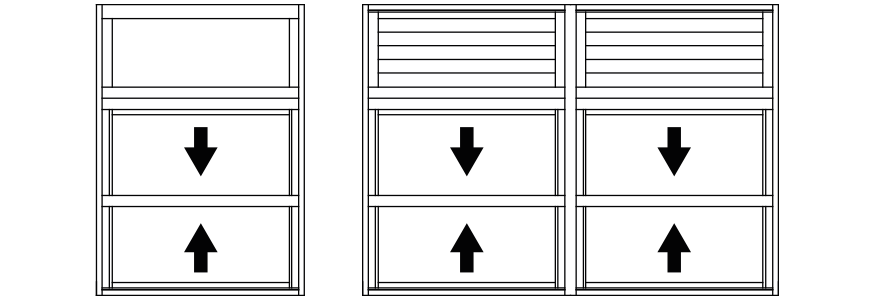

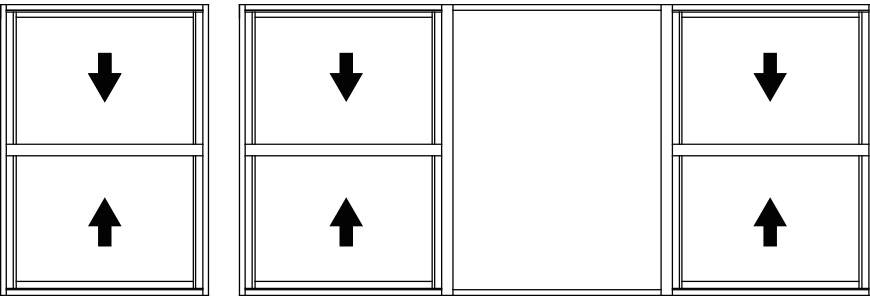

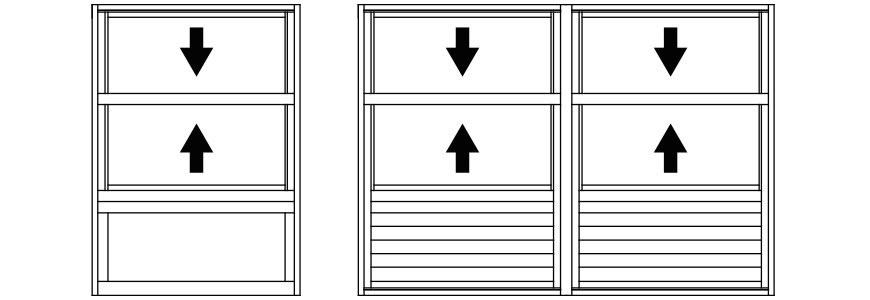

CONFIGURATION EXAMPLES (viewed from outside)

Frame Size
50mm, 65mm, 101.6mm, 150mm

Max. Opening Size (Single Unit)
2400mm high x 1600mm wide

Maximum Sash Size
1200mm high x 1600mm wide

Maximum Sash Weight
20kgs

Maximum No. of Units
Unlimited

Glazing Range
4mm - 8.38mm

Arrow
Arrow
Depicted above are a selection of configuration examples. Thanks to our modular design, there are many other possible configurations available.

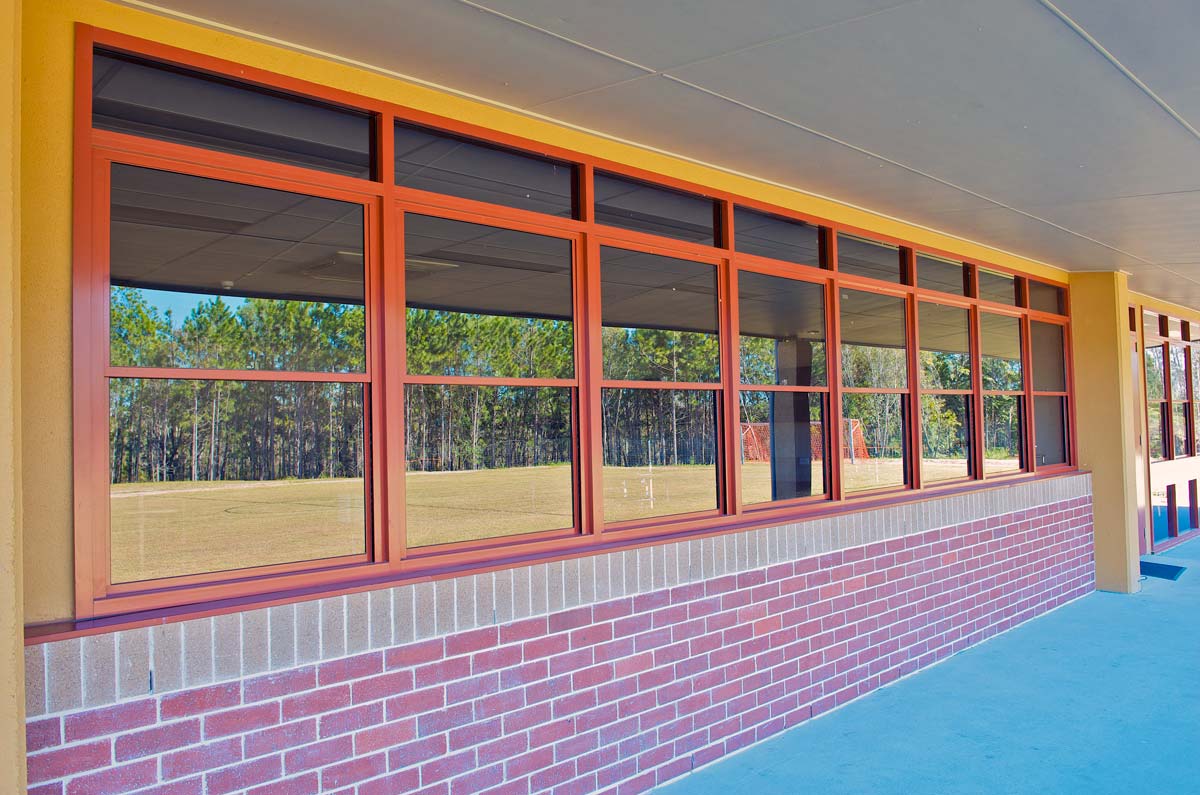

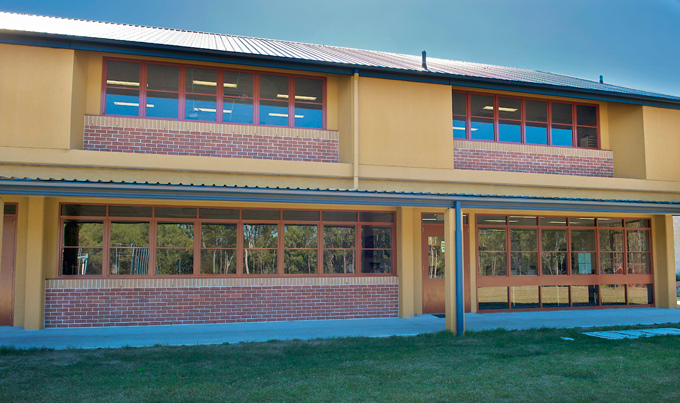

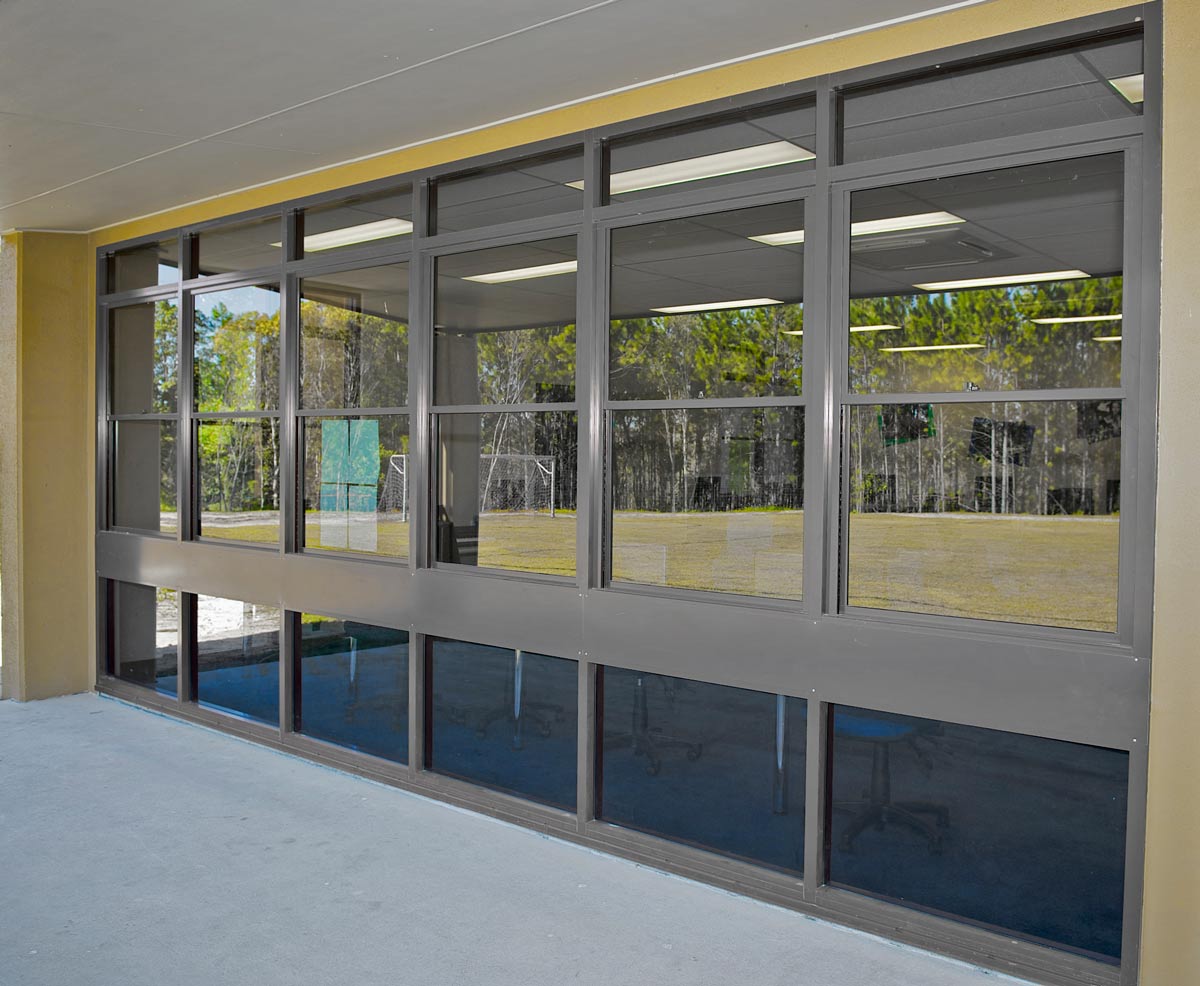

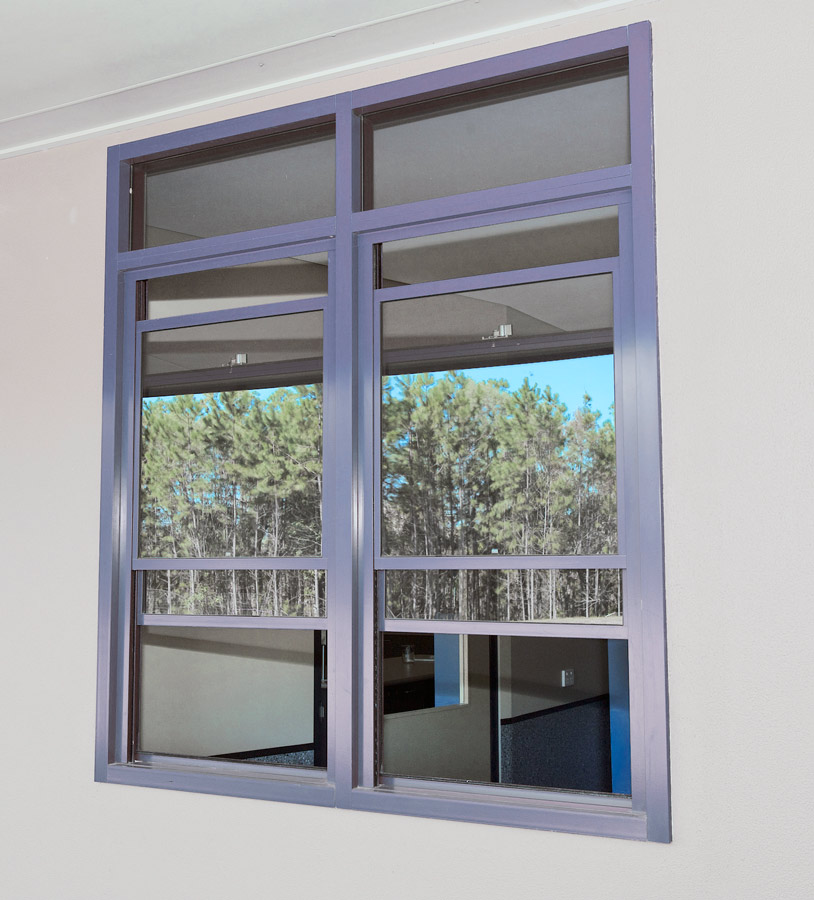

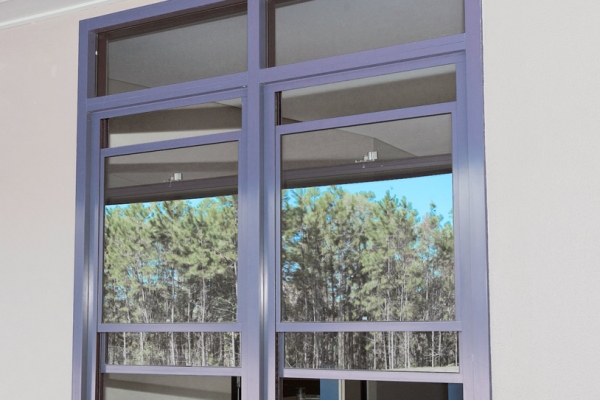

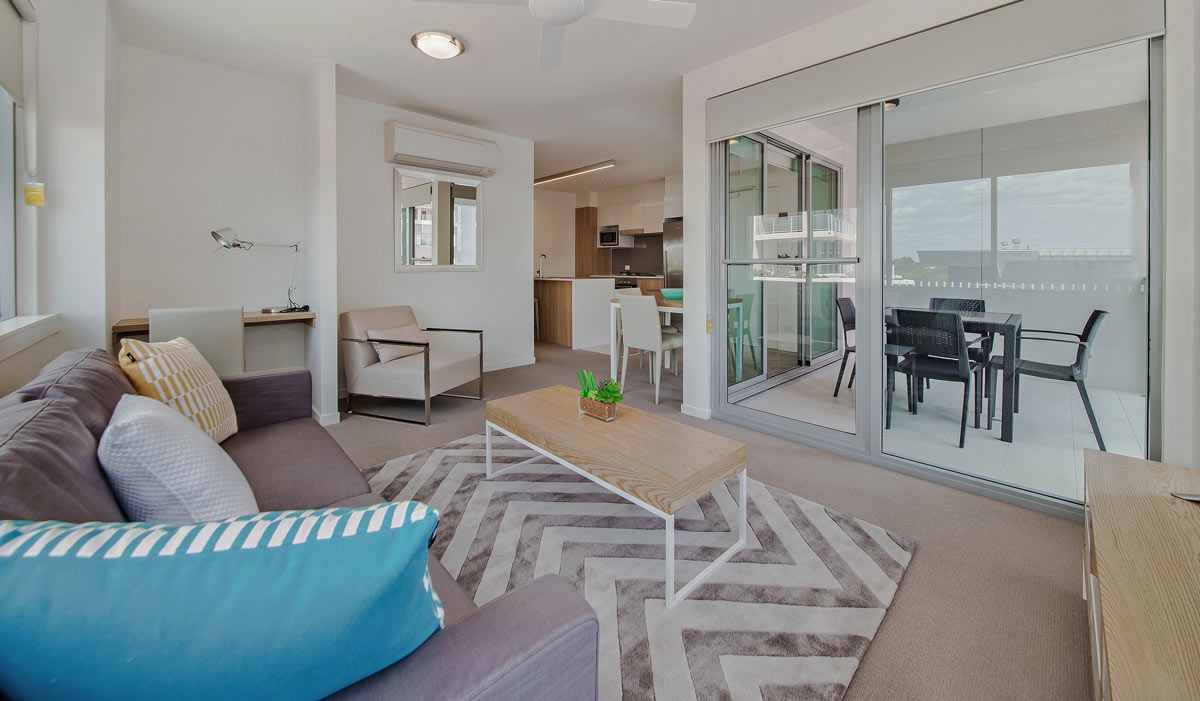

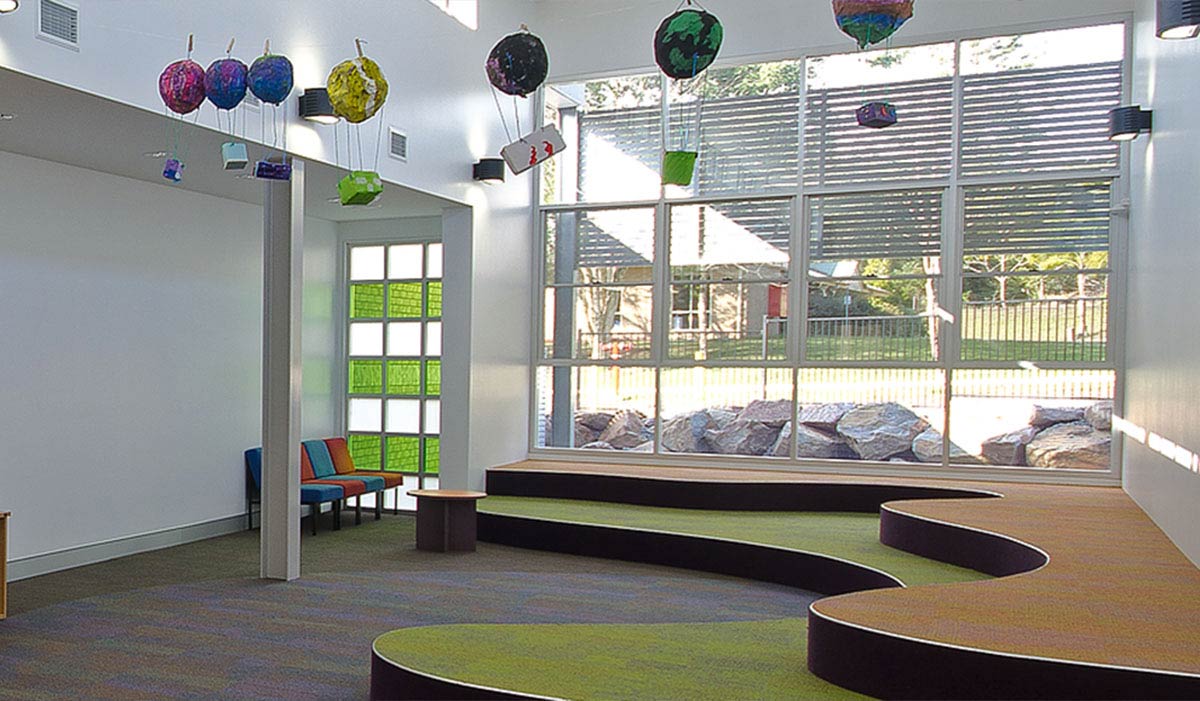

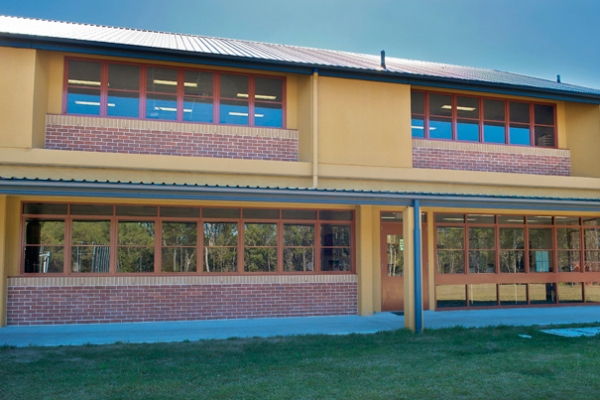

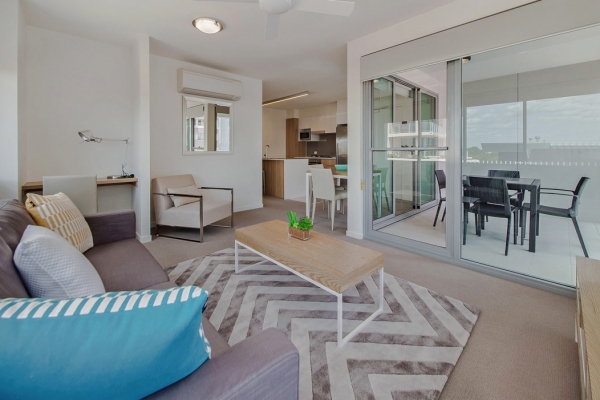

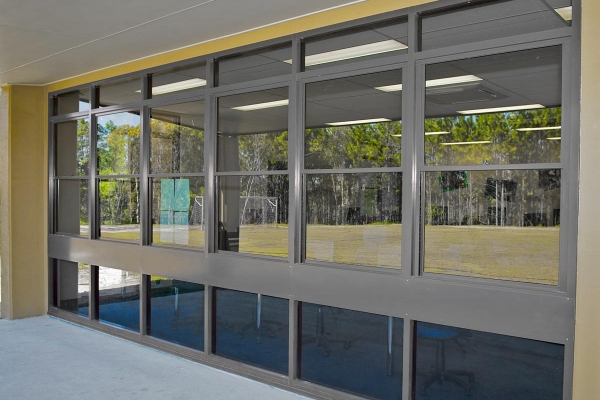

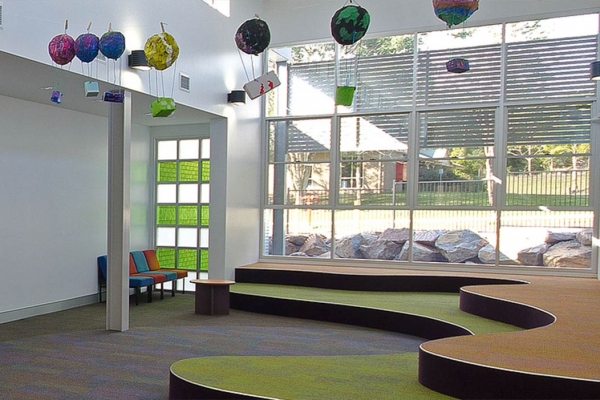

PHOTO GALLERY
