Tranquility Dual Glaze

When the project design calls for quiet spaces, the Tranquility Dual Glaze System from our Commerce range is the answer. Ideal for recording spaces, quiet offices, hotel rooms next to busy streets and more. Tranquility Dual Glaze has been designed with clean lines and precise square cuts to truly provide exceptional architectural aesthetics. Our system delivers profound enhancements such as pre-slotted self-draining transoms and sills, as well as concealed drainage pockets for optimal weatherability. The Tranquility Dual Glaze System also encourages a reduction in labour through efficient fabrication by incorporating the use of a captive wedge, as well as straight cutting.

Designed to Comply with Australian Standards AS1170, AS1288, AS2047 and AS4055

OPTIONS

Subframing for exposed areas
Combinational adaptability with various systems across our entire Ezial range
Incorporated as highlights, lowlights, and sidelights



FEATURES & BENEFITS

Reduced sound transmission with a reduction of up to Rw50
Simple and efficient fabrication with the use of straight cutting
Self-draining sills and transom designs enhancing water management and weatherability
Ezi-Seal technology for effective insulation, acoustics, and weather durability


SPECIFICATIONS

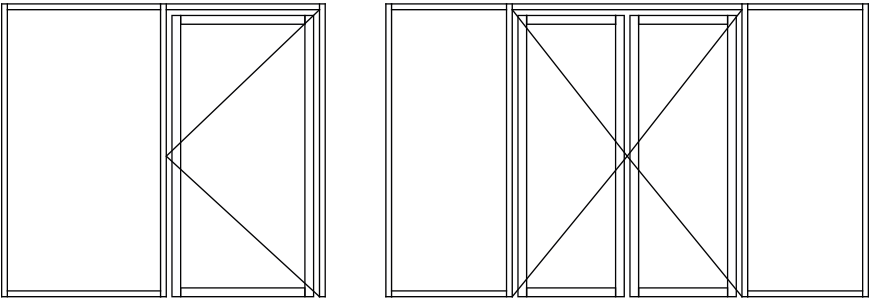

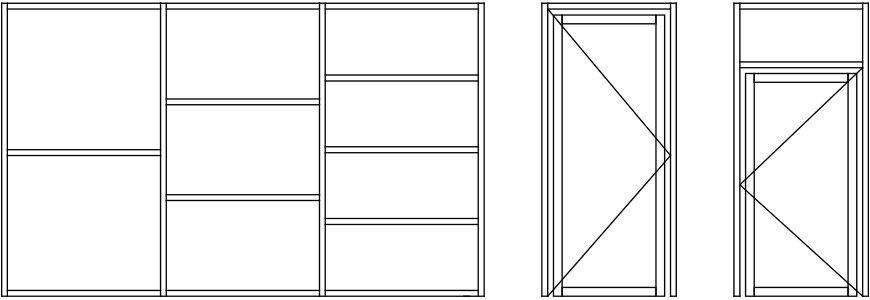

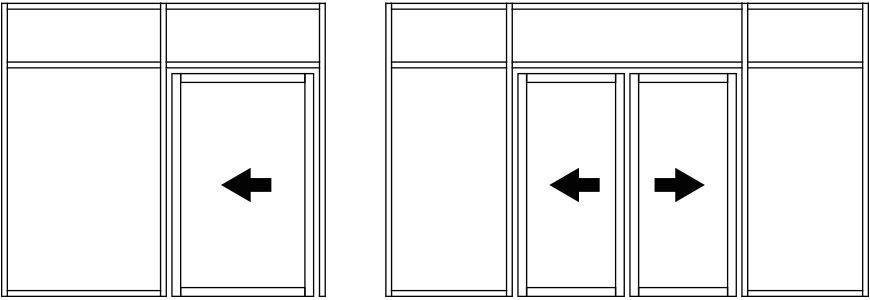

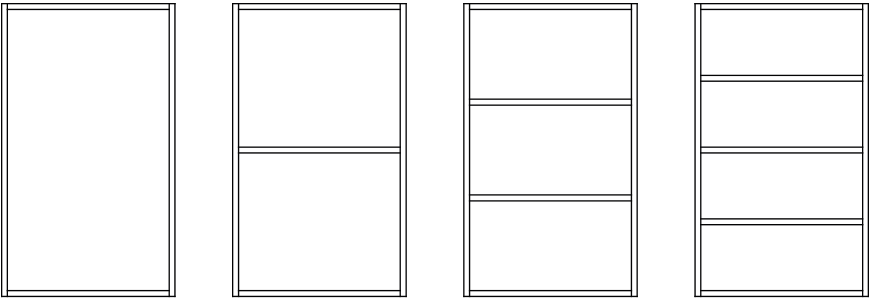

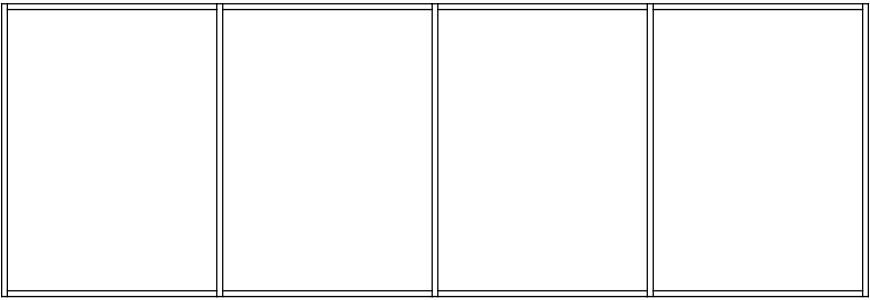

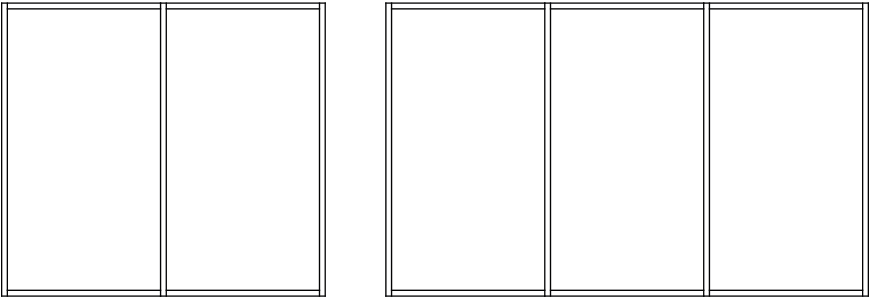

CONFIGURATION EXAMPLES (viewed from outside)

Frame Sizes
101.6mm

Maximum Frame Size (single)
6000mm high x 3000mm wide

Maximum No. of Frames
Unlimited

Glazing Range
5mm - 13.5mm

Arrow
Arrow
Depicted above are a selection of configuration examples. Thanks to our modular design, there are many other possible configurations available.
