Gas Strut Window

Our Gas Strut Windows from our Enovation range will open up your home and business to be the perfect venue. Ideal for kitchens, serveries and caf├ęs this stylish window not only opens up space to serve and entertain but also provides protection from the elements above the opening. With Gas Struts sized to your exact window requirements, even large sashes are a breeze to open and close. When open, the Gas Strut windows allow uninterrupted views, ventilation, and access between spaces. The continuous top hinge is similar to an awning window hinge, providing excellent weatherability and making it easy to install. By wet glazing the glass into the sash, not only is it a fully braced frame but also creates a sealed sash, which is excellent for acoustics and weatherability, providing a climate-controlled acoustic atmosphere and making it an economical and environmentally friendly solution.

Designed to Comply with Australian Standards AS1170, AS1288, AS2047 and AS4055

OPTIONS

Weatherproof sill or seamless sill options
Snap-in adaptor sections for modular configurations
Choice of twinbolt locks
Choice of door handles

FEATURES & BENEFITS

Continuous top hinge to secure sash
Wet glazed for increased sash strength
Up to 1.5m x 2.5m of openable area
Completely weatherable with 2 seals on all sides of the sash
Compatible with 10-22 Gas Struts


SPECIFICATIONS

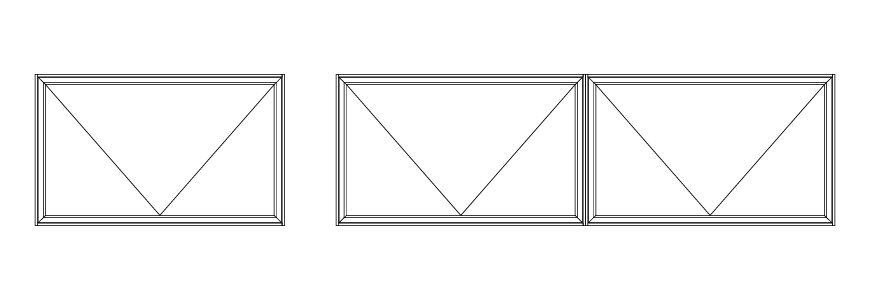

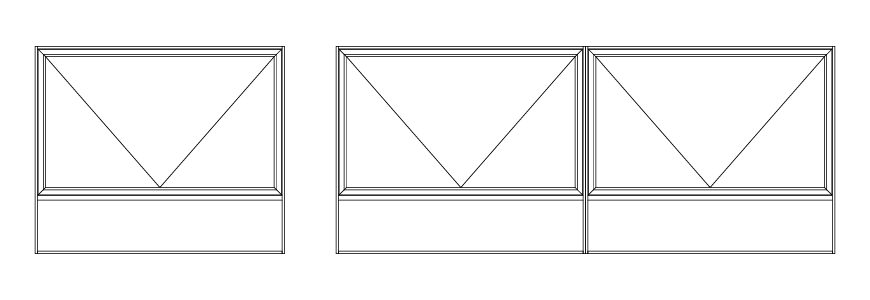

CONFIGURATION EXAMPLES (viewed from outside)

Frame Sizes
101.6mm,

Maximum Sash Height
1500mm

Maximum Sash Width
2500mm

Maximum Sash Weight
125kgs

Maximum No. of Sashes
Unlimited

Glazing Range
6mm - 10.5mm (GS45 Sash)
6mm - 12.5mm (GS85 Sash)

Arrow
Arrow
Slider
Depicted above are a selection of configuration examples. Thanks to our modular design, there are many other possible configurations available.

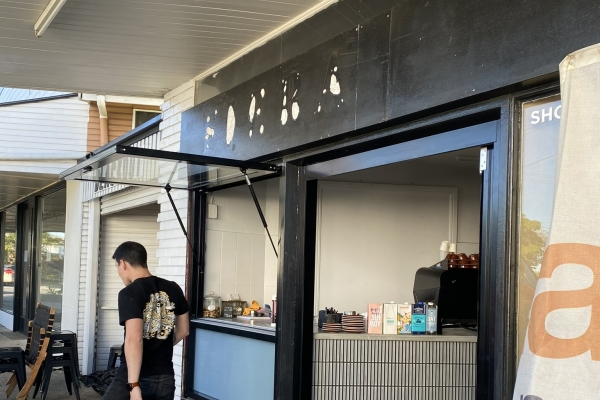

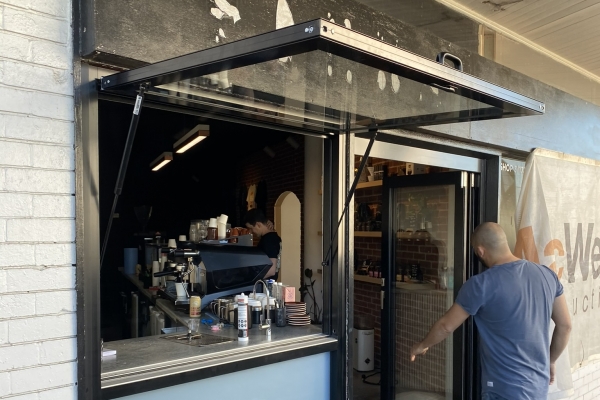

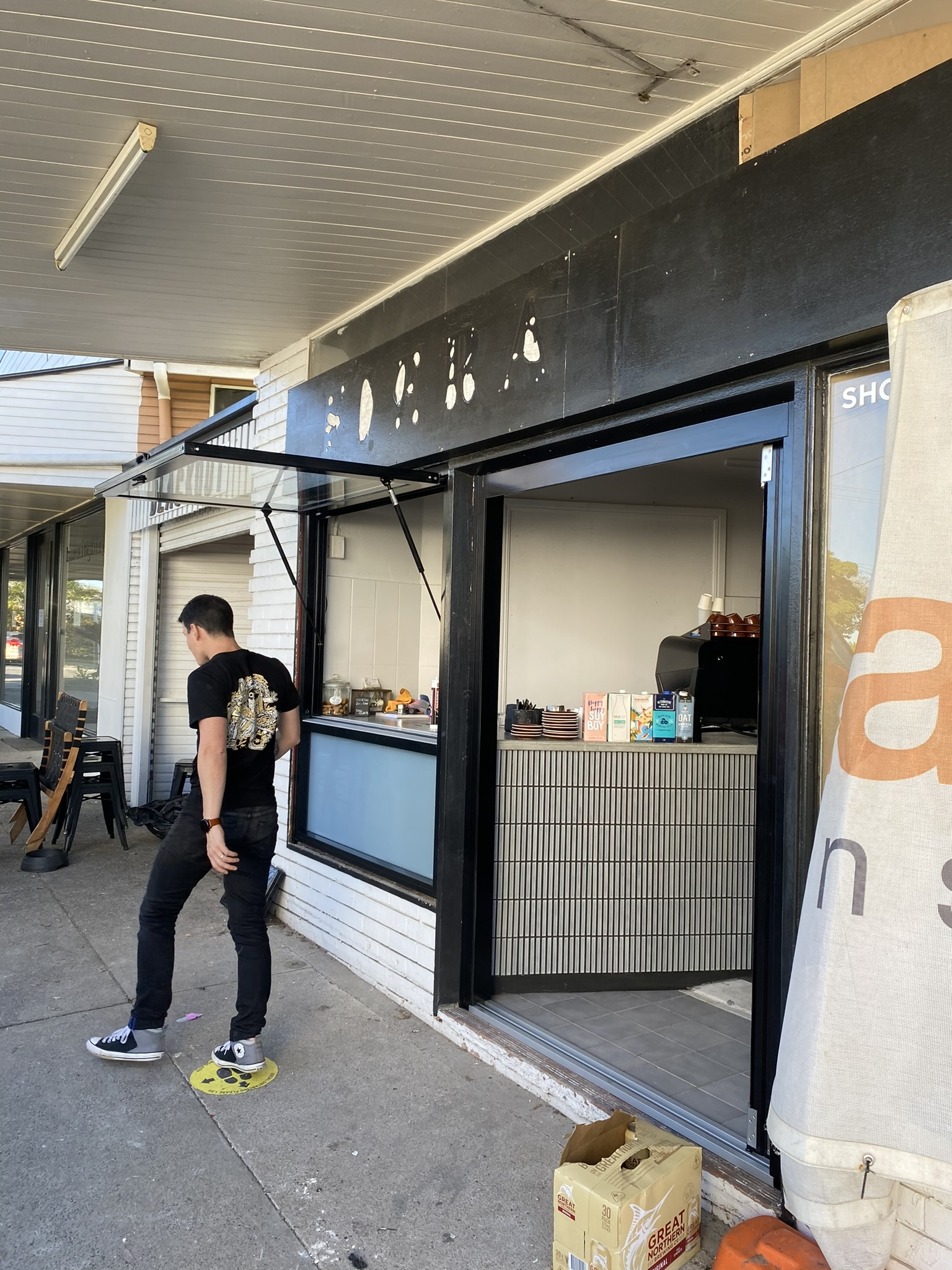

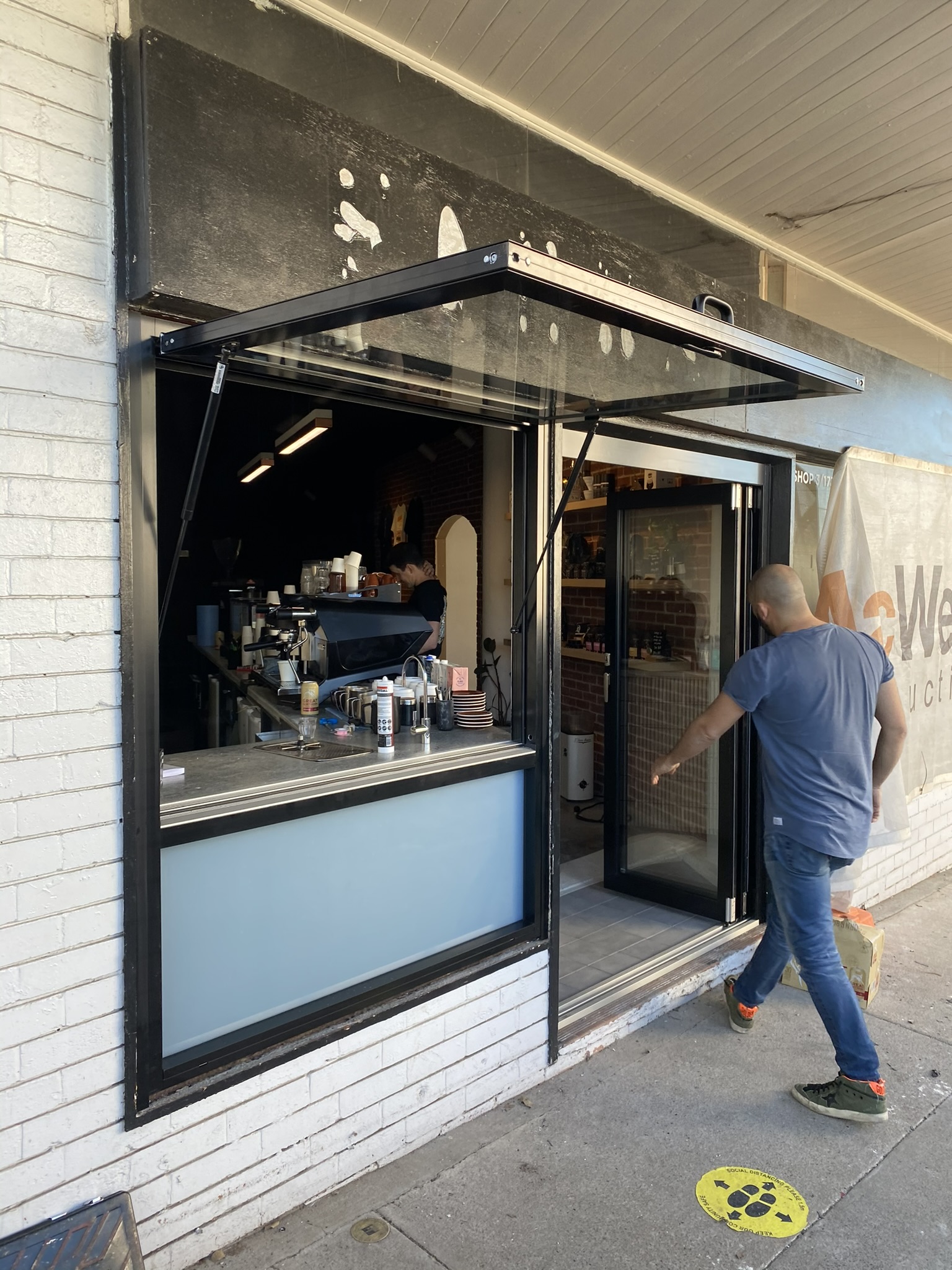

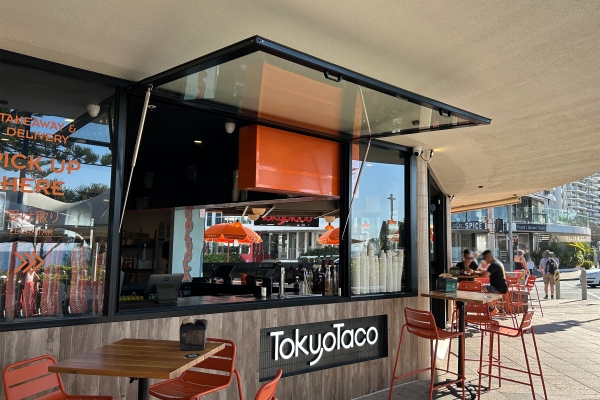

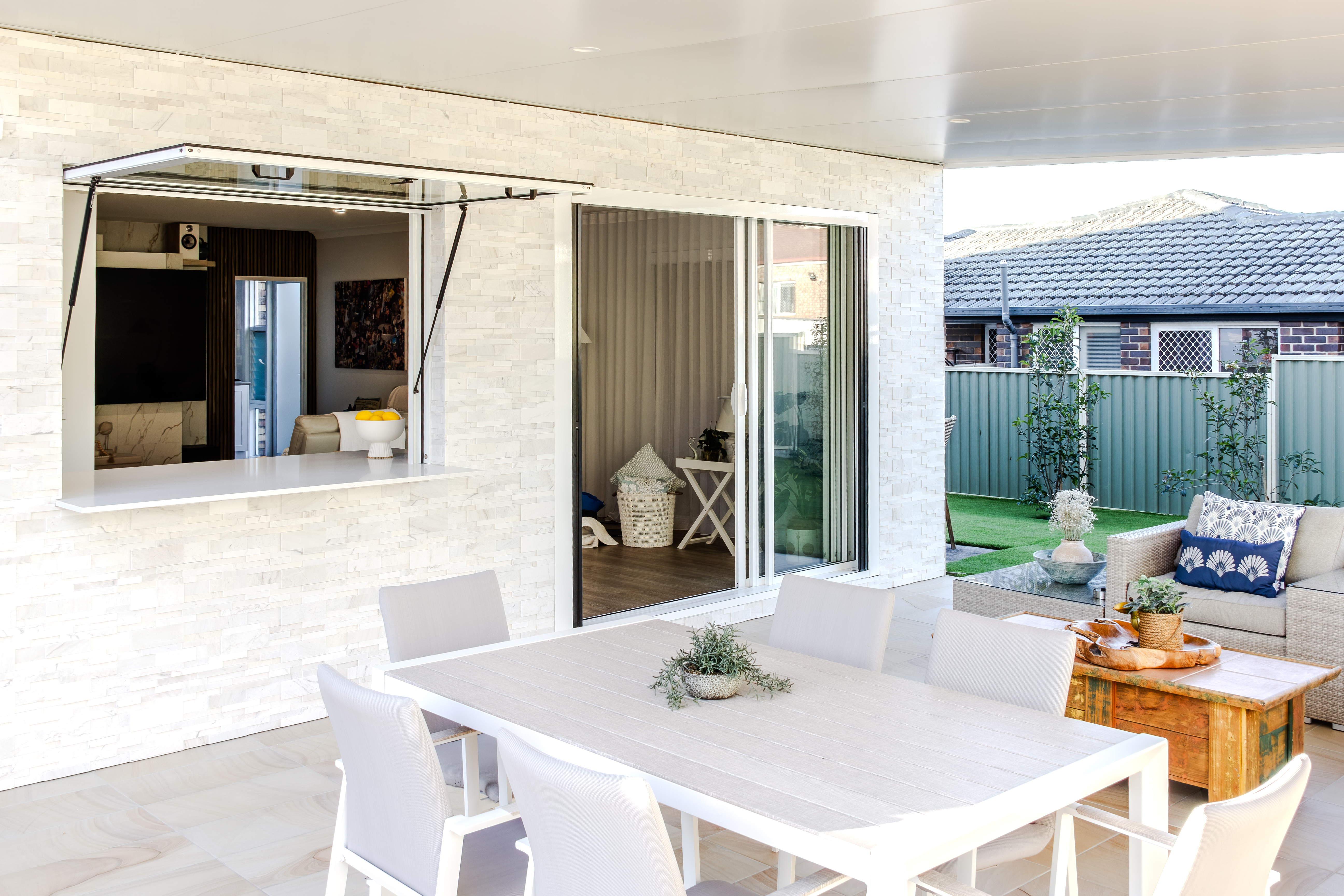

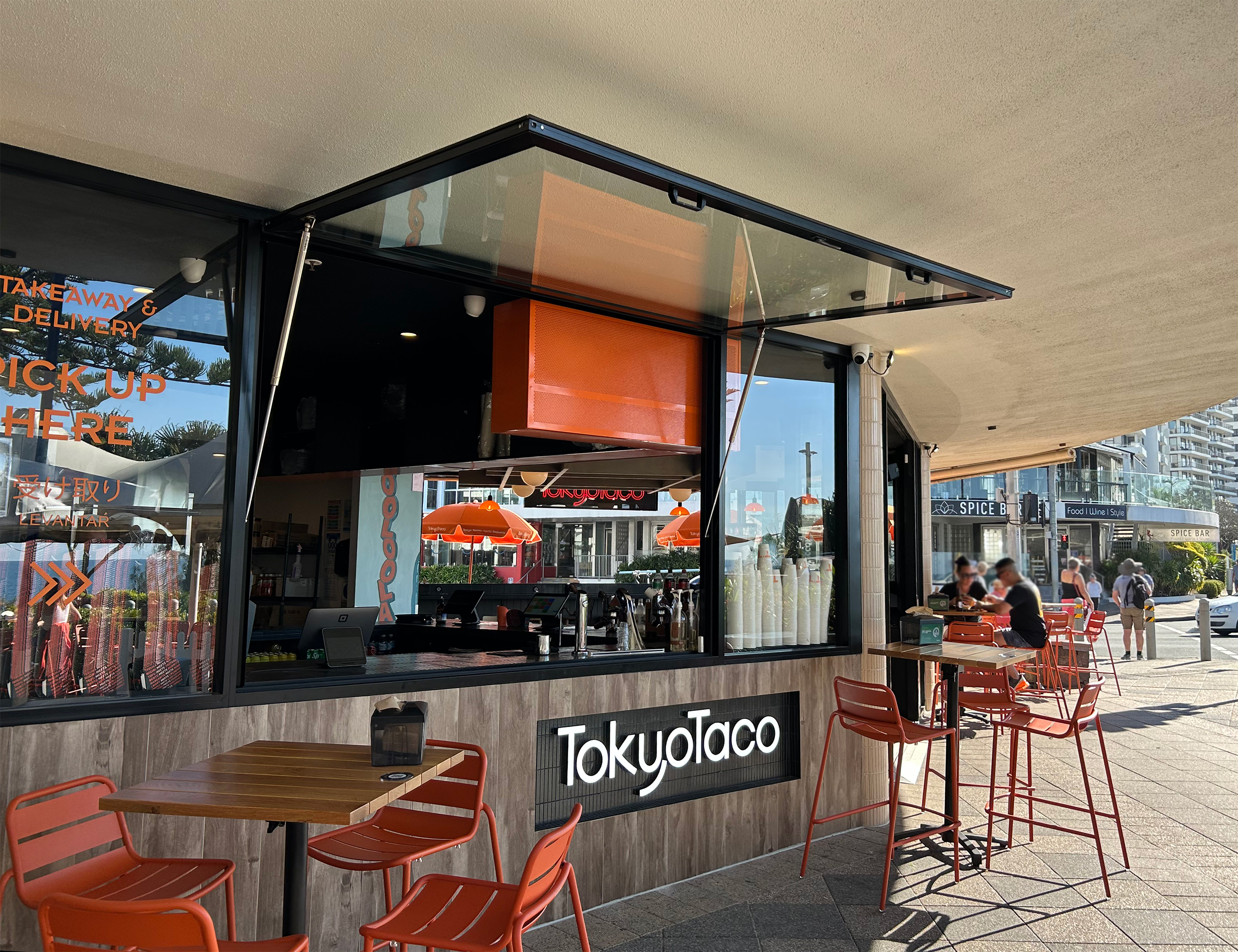

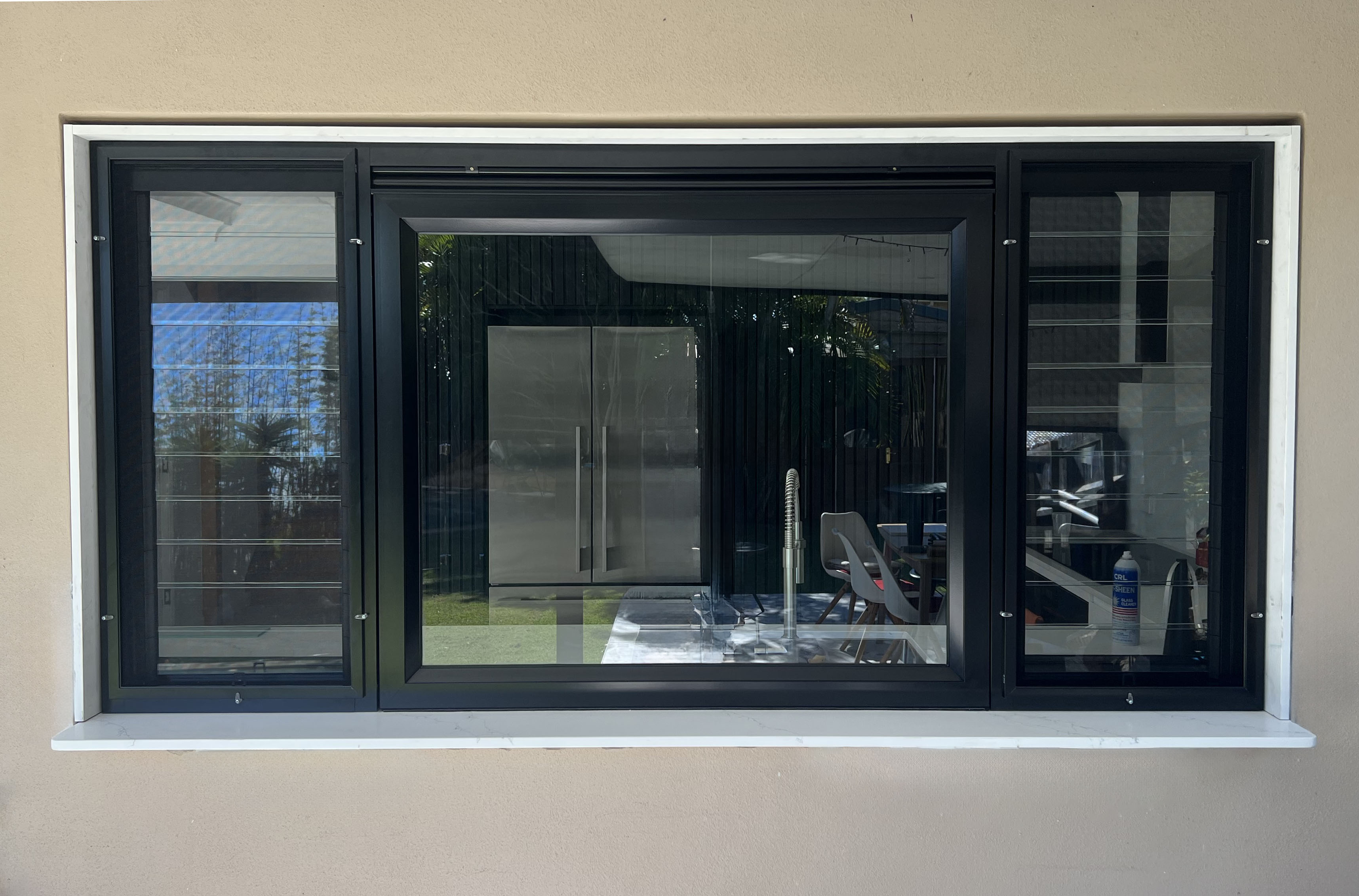

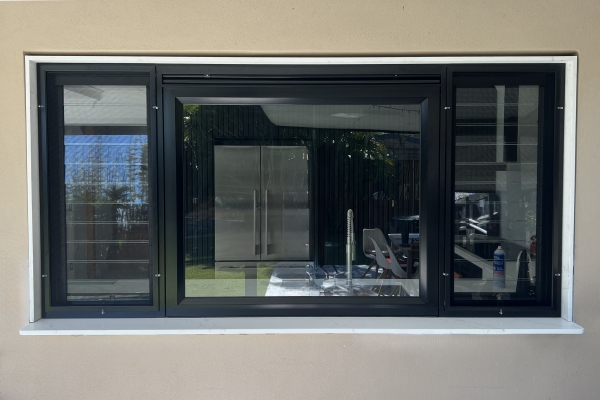

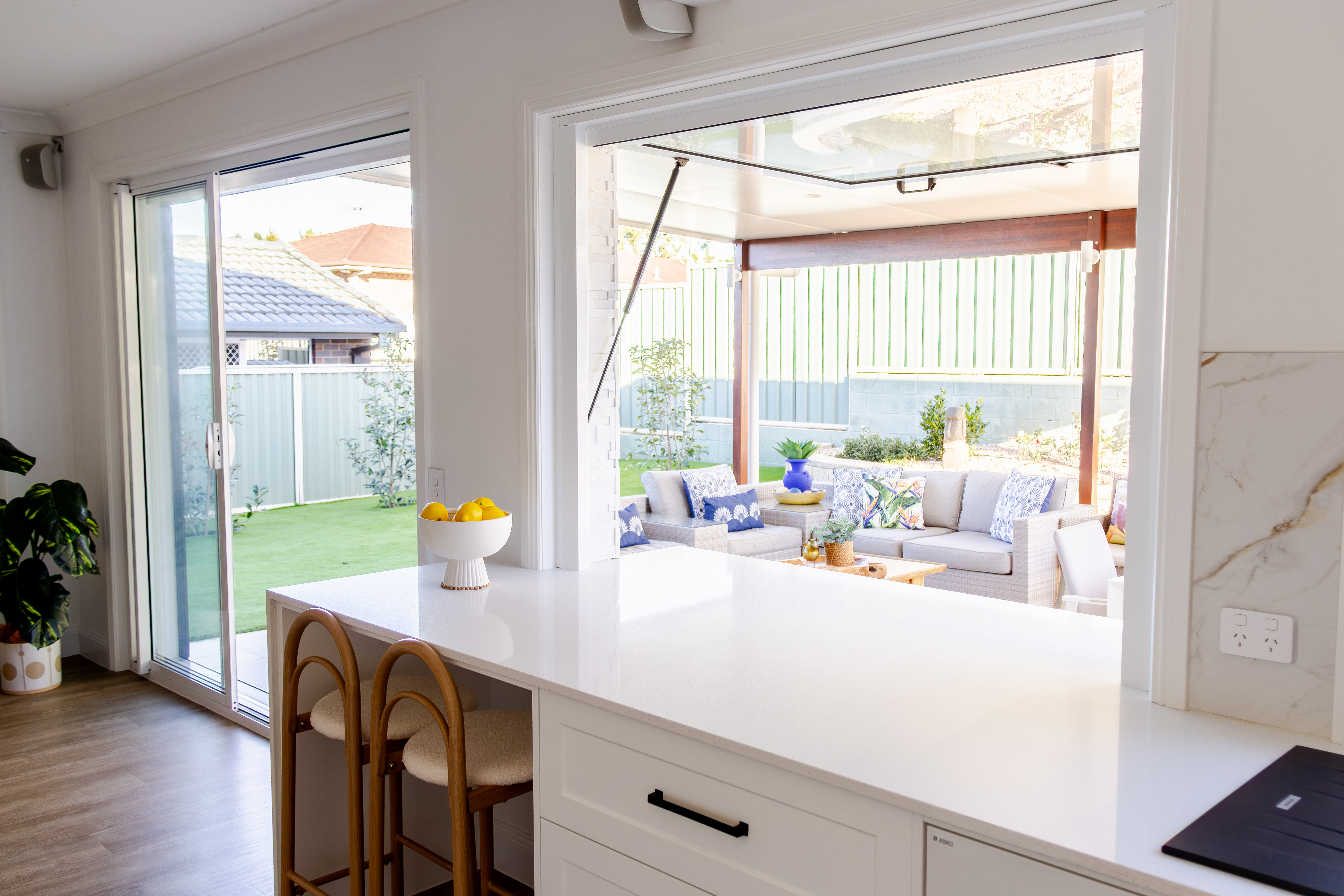

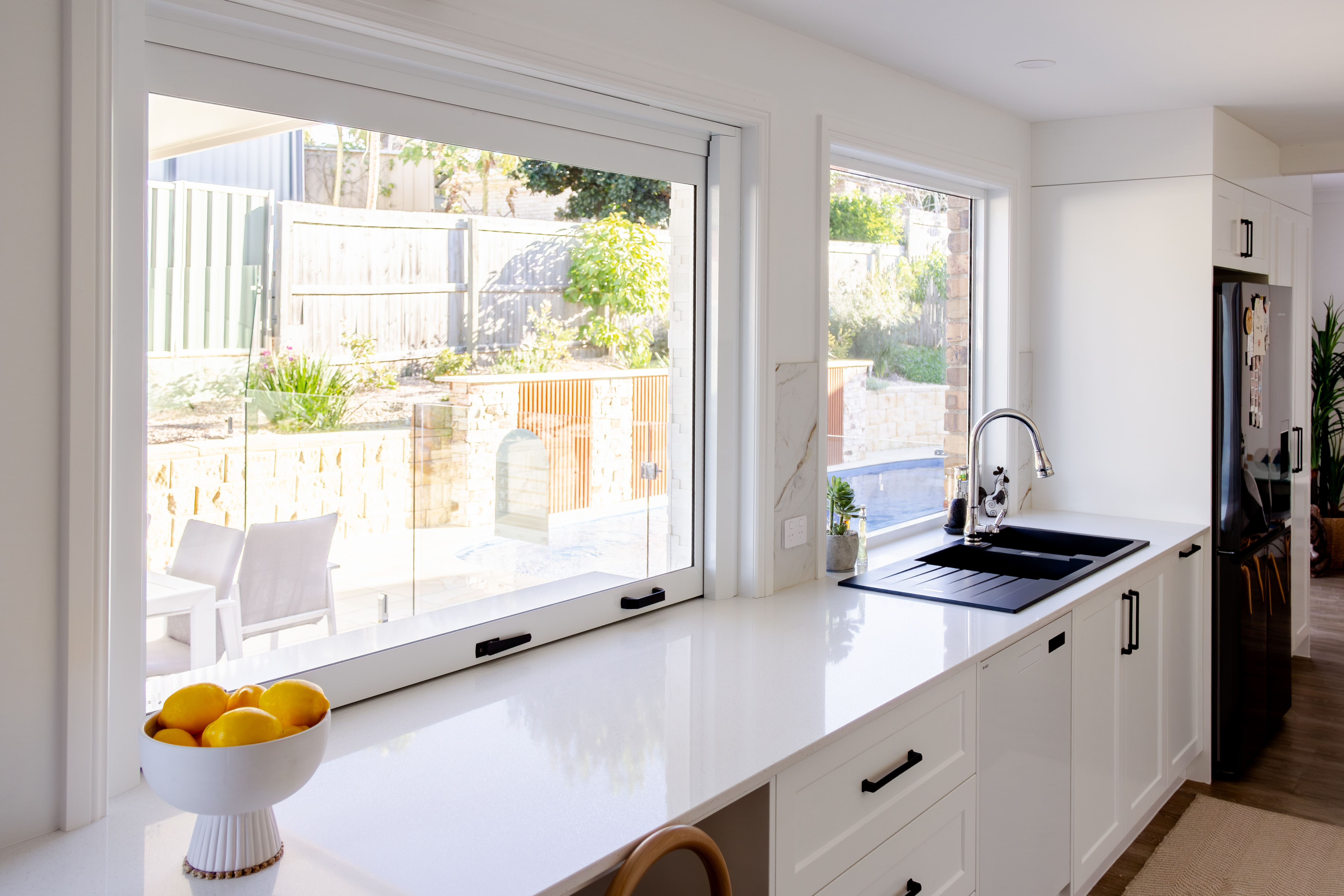

PHOTO GALLERY
