30mm Sliding Door

The 30mm Sliding Door from our Enovation range has been designed with stylish low profile sills with clean lines inspired by European architecture. Complemented with soft curved mullions and transoms, provides an elegant design best suited for today’s modern architectural market. The 30mm Sliding Door offers state of the art technology including our Ezi-Slide heavy duty dual carriage bogey rollers, as well as our Ezi-Seal corner technology, promising a high performing system of optimum quality.

Designed to Comply with Australian Standards AS1170, AS1288, AS2047 and AS4055
Design Registration Numbers: 326286, 326287, 326288, 326289, 326290, 326292, 326293, 326294, 326295, 326296, 326297, 326298, 326299, 326300

OPTIONS

Versatile configuration
Heavy weather durability
Single direction or bi-parting openings
Single and double glazing
90 degree post-less corner
Disability access sill

FEATURES & BENEFITS

Uninterrupted panoramic views
Durable to aggressive weather conditions
Dual precision bearings per roller for enhanced durability and operation
Low profile high performance sills
Clean lines with soft curved mullions and transoms
Ezi-Seal corner technology for calm acoustics and effective insulation
Compatible with a range of insect and security screening alternatives
NATA tested and accredited


SPECIFICATIONS

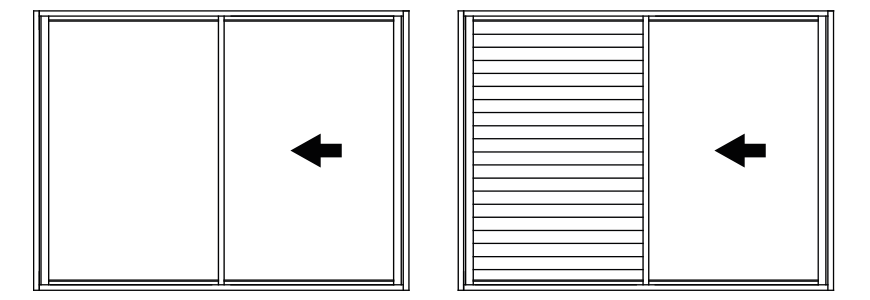

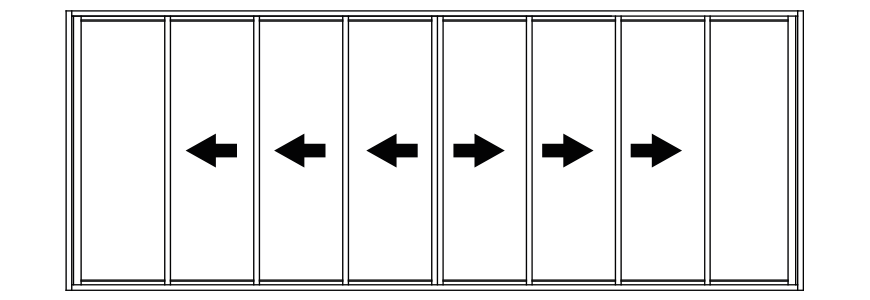

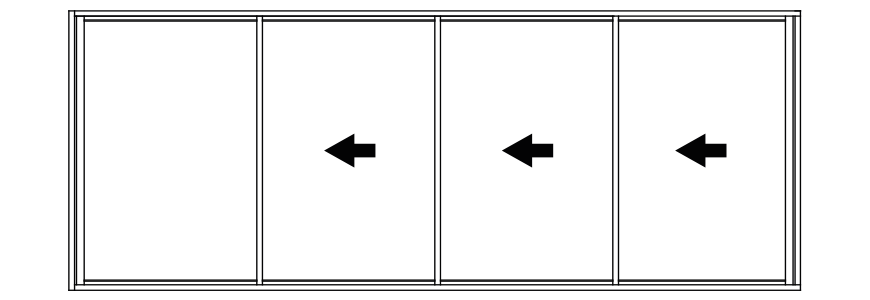

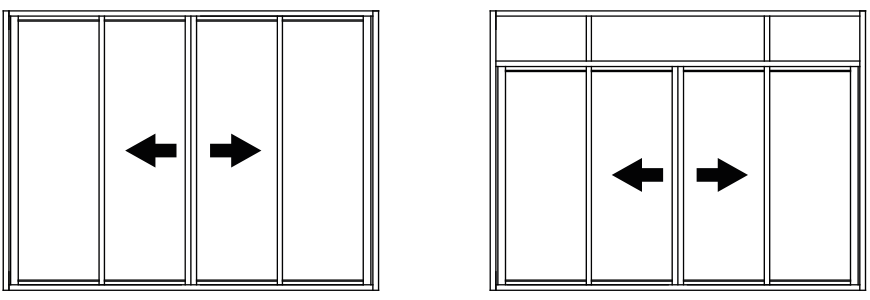

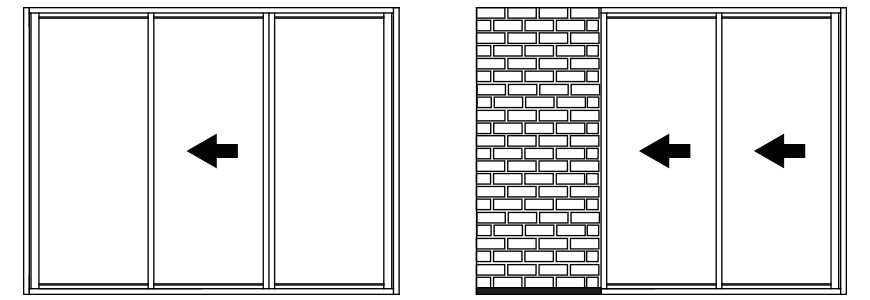

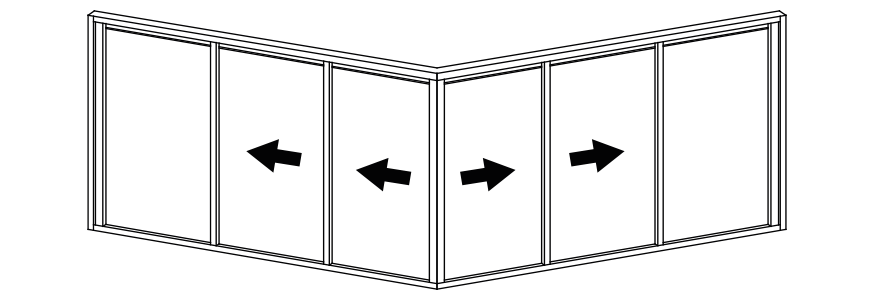

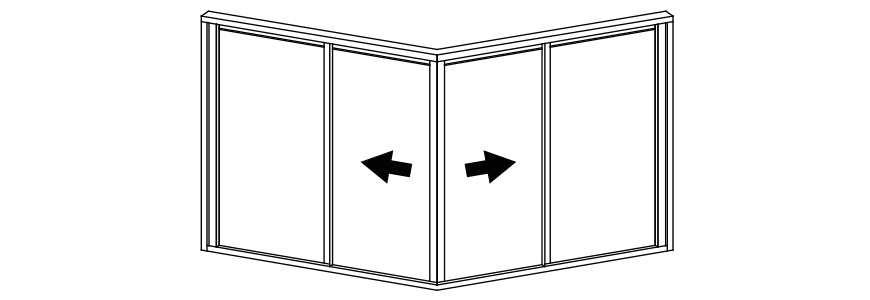

CONFIGURATION EXAMPLES (viewed from outside)

Frame Sizes
101.6mm, 150mm, 200mm

Max. Opening Size
2850mm high x 11600mm wide

Maximum Panel Size
2750mm high x 1500mm wide

Maximum Panel Weight
180kgs

Maximum No. of Panels
Up to 4 left + 4 right (8 in total)

Glazing Range
5mm - 10.38mm (12.5mm pocket)

Arrow
Arrow
Slider
Depicted above are a selection of configuration examples. Thanks to our modular design, there are many other possible configurations available.

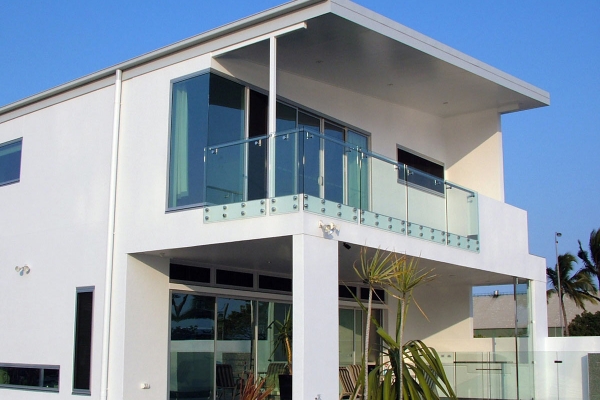

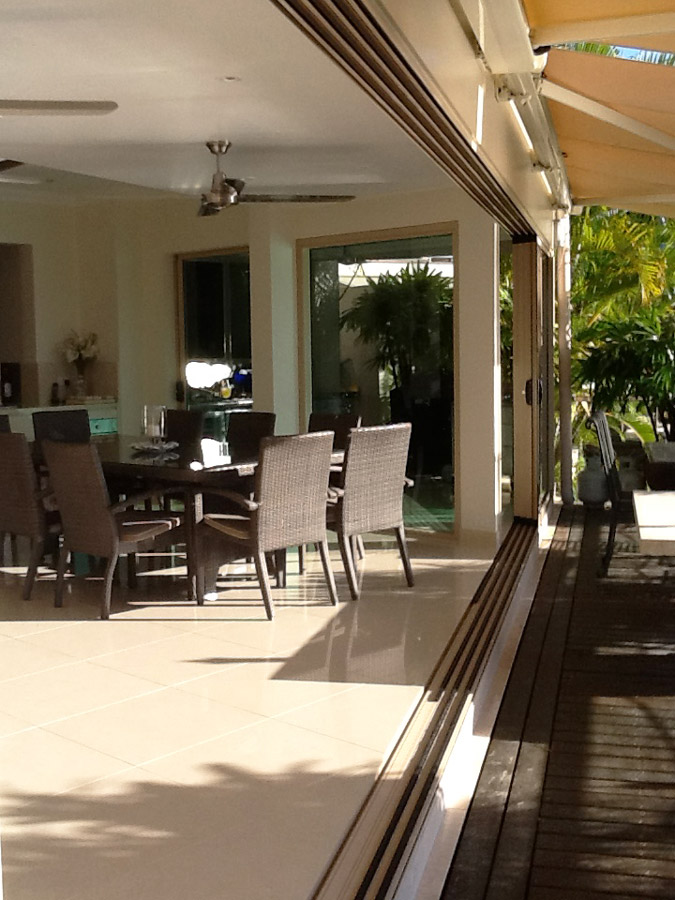

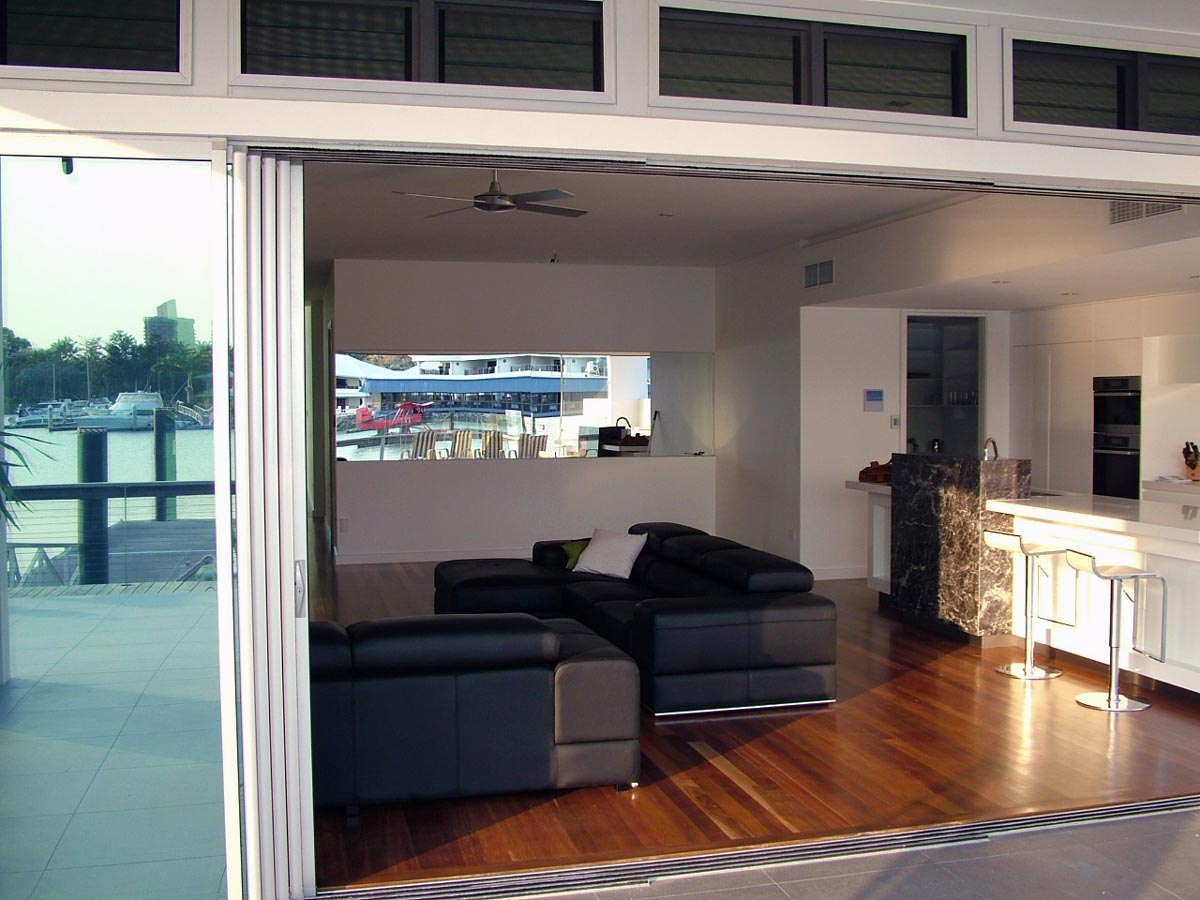

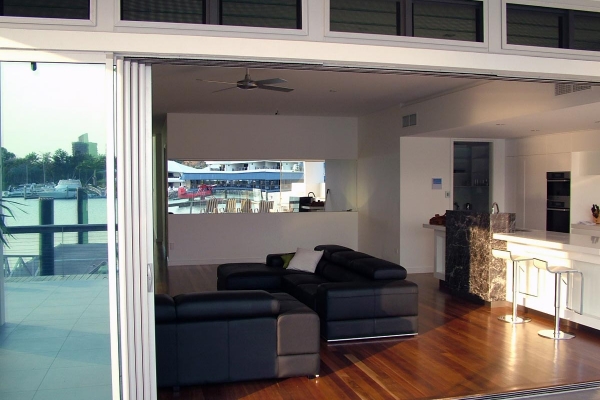

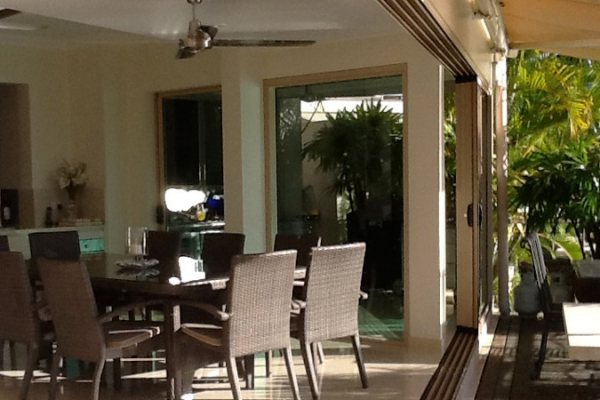

PHOTO GALLERY
